Removal and Installation

CAUTION: The adjustable pedal system must be indexed whenever the brake pedal assembly or the accelerator pedal bracket is serviced.

NOTE: Adjustable accelerator pedal bracket shown, adjustable with memory accelerator pedal bracket similar.

Remove the accelerator pedal. For additional information, refer to ACCELERATOR PEDAL .
Disconnect the accelerator pedal bracket electrical connector.

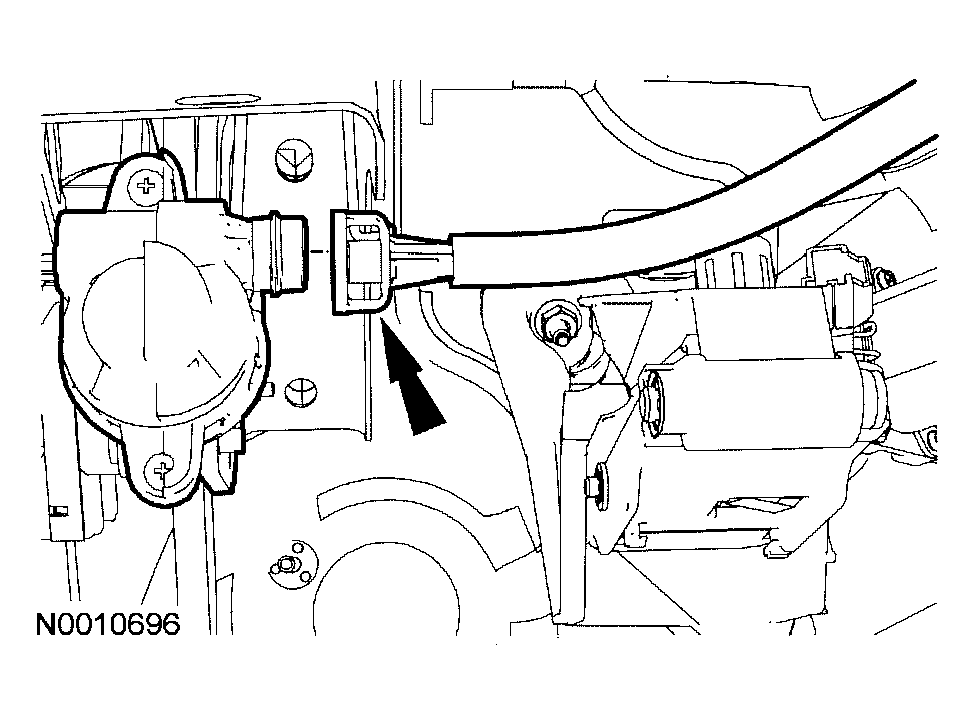

Fig 1: Disconnecting Accelerator Pedal Bracket Electrical Connector
Courtesy of FORD MOTOR CO.
Disconnect the accelerator pedal bracket drive cable from the brake pedal drive.

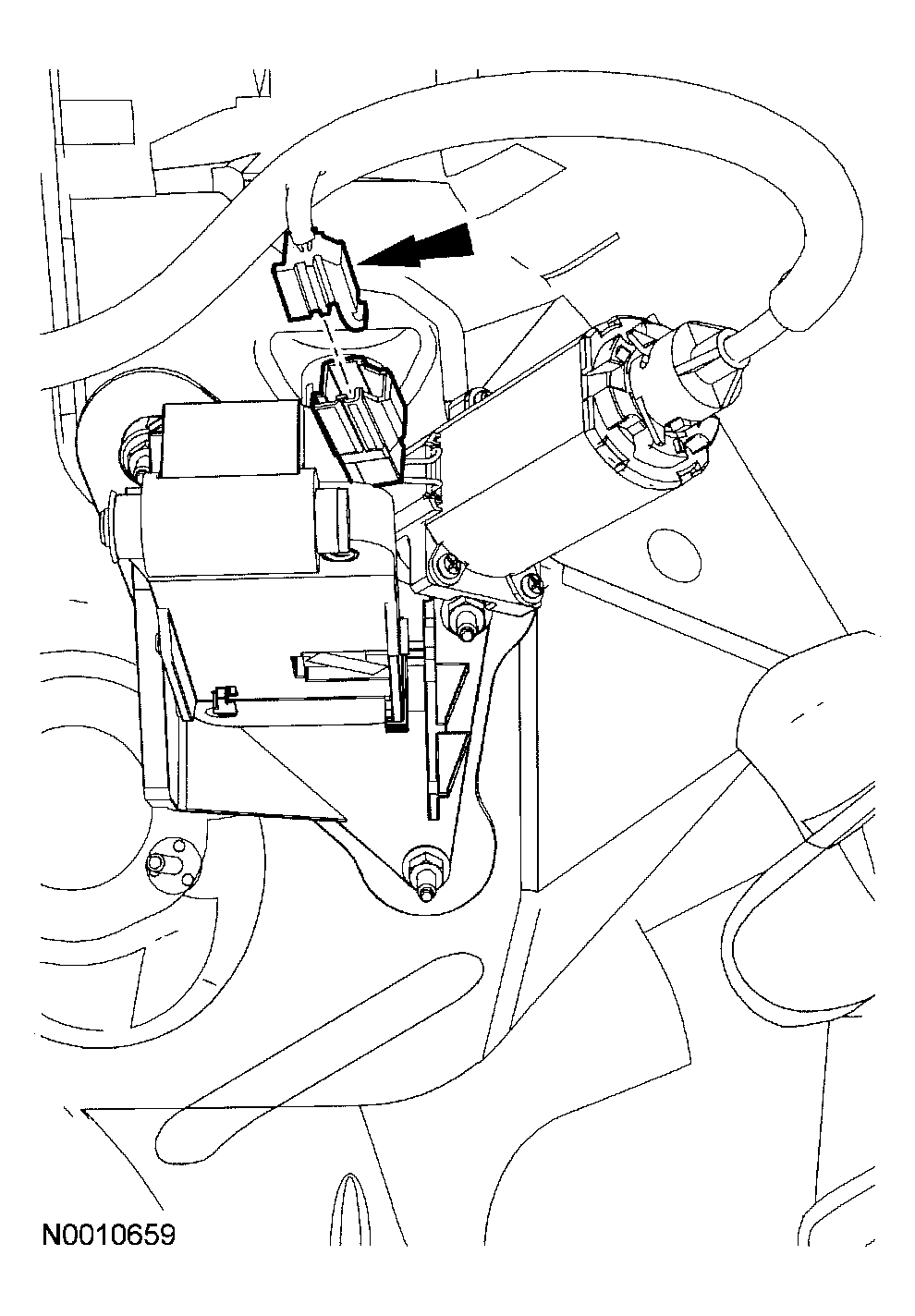

Fig 2: Disconnecting Accelerator Pedal Bracket Drive Cable From Brake Pedal Drive
Courtesy of FORD MOTOR CO.
Remove the accelerator pedal bracket retaining nuts.

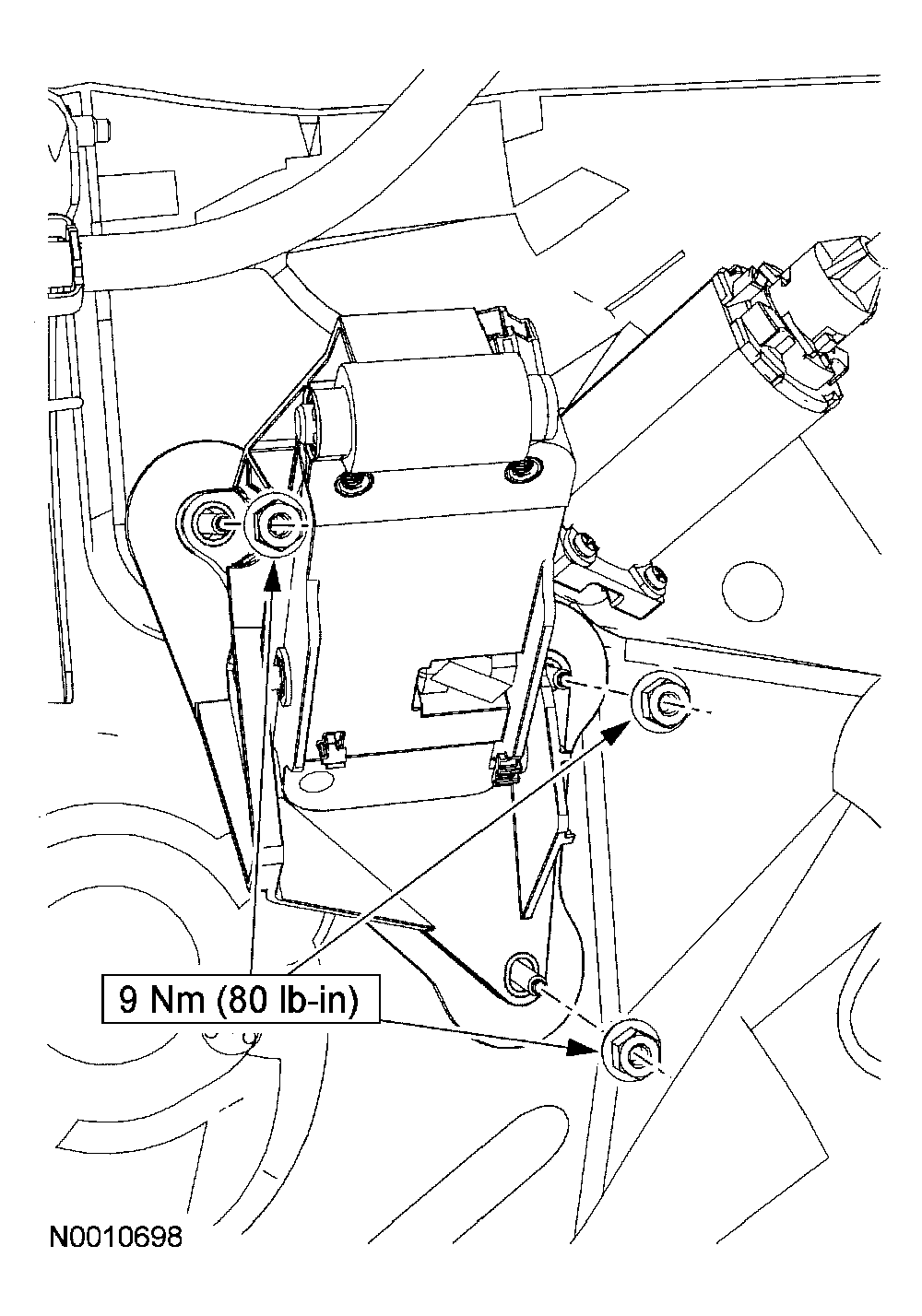

Fig 3: Removing Accelerator Pedal Bracket Retaining Nuts
Courtesy of FORD MOTOR CO.
Remove the accelerator pedal bracket.

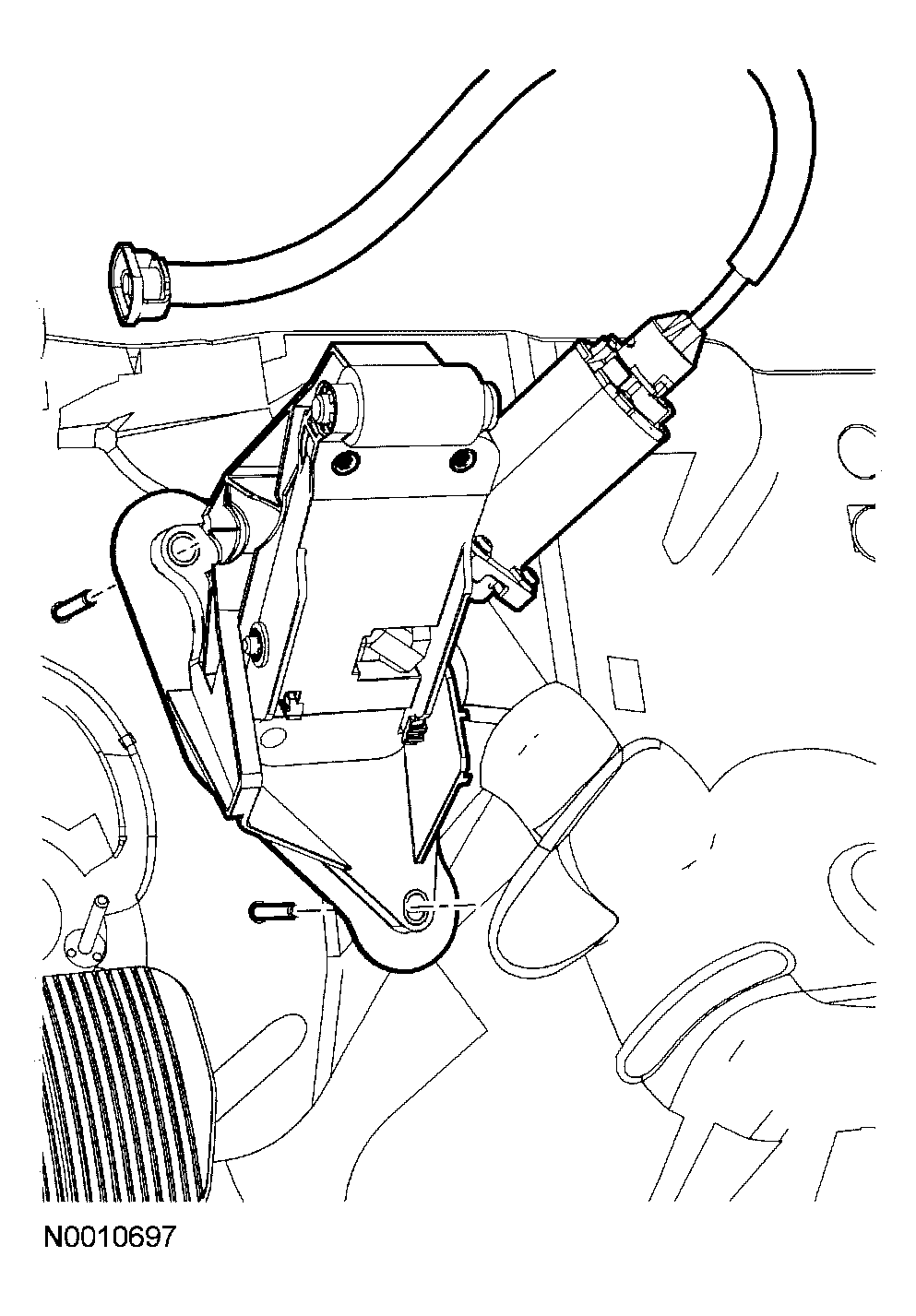

Fig 4: Removing Accelerator Pedal Bracket
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
Index the pedal assemblies, Refer to HYDRAULIC BRAKE ACTUATION .
