Engine Calibration Information: Notes

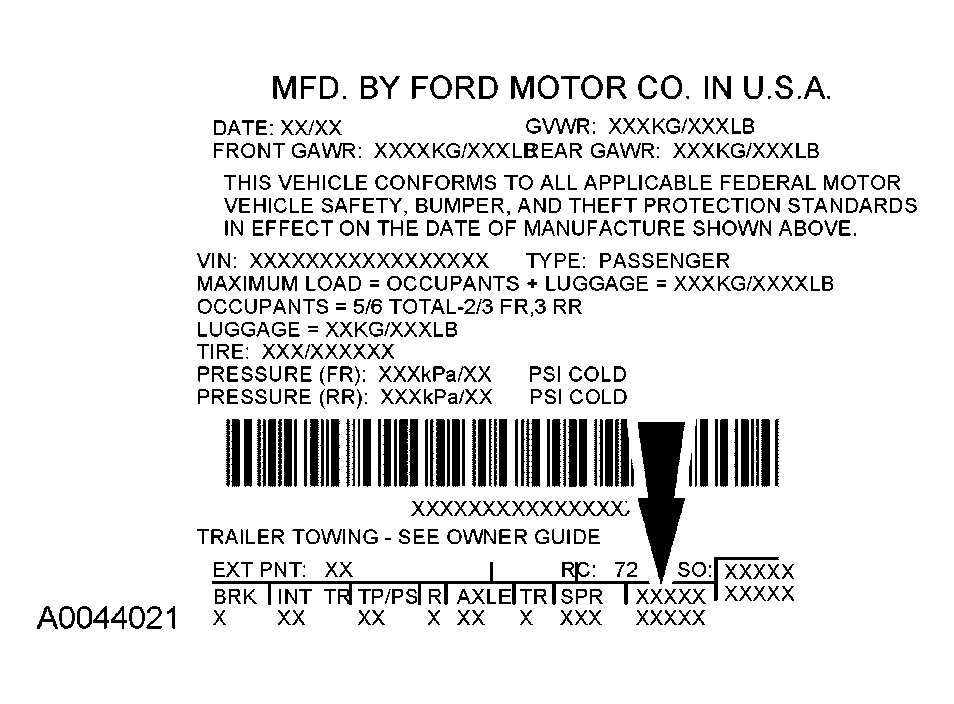

Fig 1: Identifying Engine Calibration Information
G03878187Courtesy of FORD MOTOR CO.

Engine calibration information is located on the VC label lower right corner between the spring code field and powertrain calibration information. Engine calibration information is limited to a maximum of five characters per line (two lines maximum). Calibration information more than five characters long will wrap to the second line of this field.
