Anti-Lock Brake System (ABS) Module: Notes

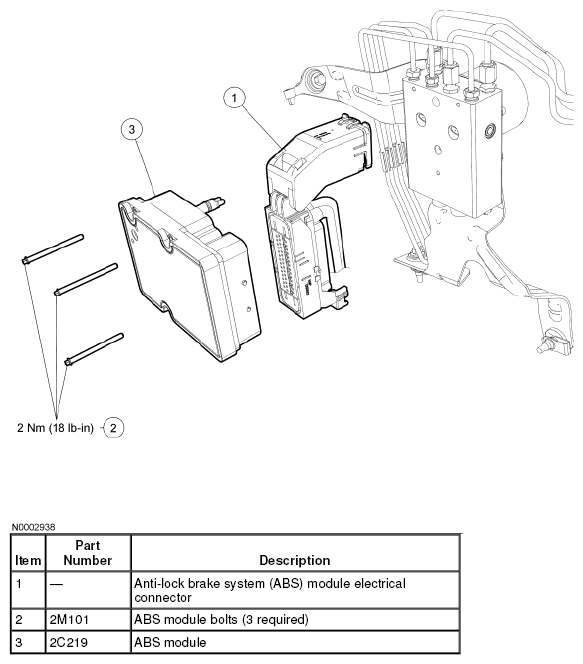

Fig 1: Anti-Lock Brake System (ABS) Module Replacement Components With Torque Specifications
G04690090Courtesy of FORD MOTOR CO.
