Hydraulic Control Unit (HCU): Notes

MATERIAL CHART

Item Specification
High Performance DOT 3 Motor Vehicle Brake Fluid PM-1 (Canada CPM-1) WSS-M6C62-A

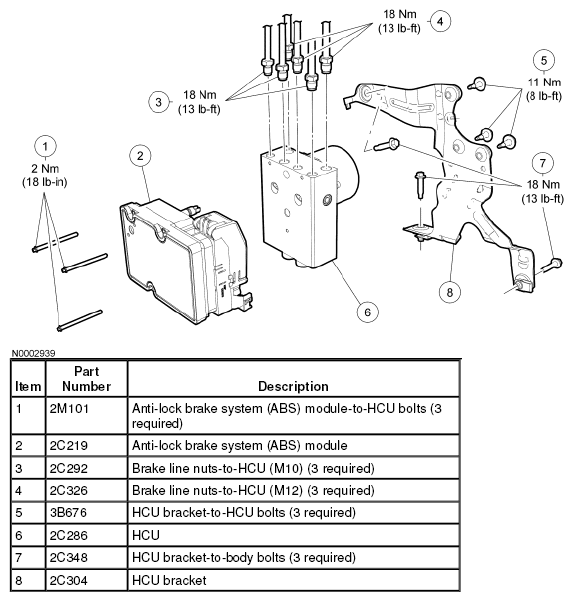

Fig 1: Hydraulic Control Unit (HCU) Replacement Components With Torque Specifications
G04690092Courtesy of FORD MOTOR CO.
