Wheel Speed Sensor - Front: Notes

MATERIAL CHART

Item Specification
Silicone Gasket and Sealant TA-30 WSE-M4G323-A4

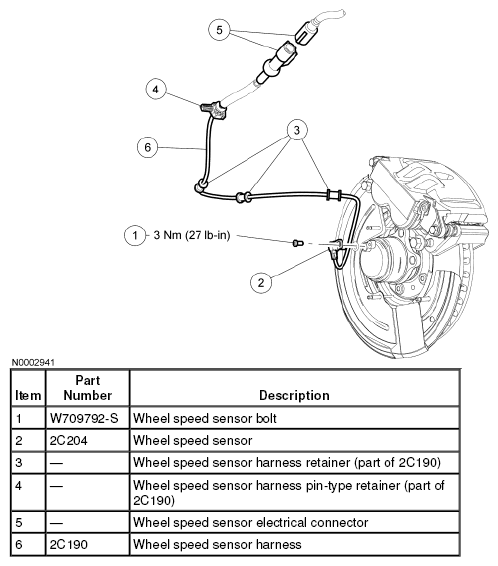

Fig 1: Front Wheel Speed Sensor Replacement Components With Torque Specifications
G04690095Courtesy of FORD MOTOR CO.
