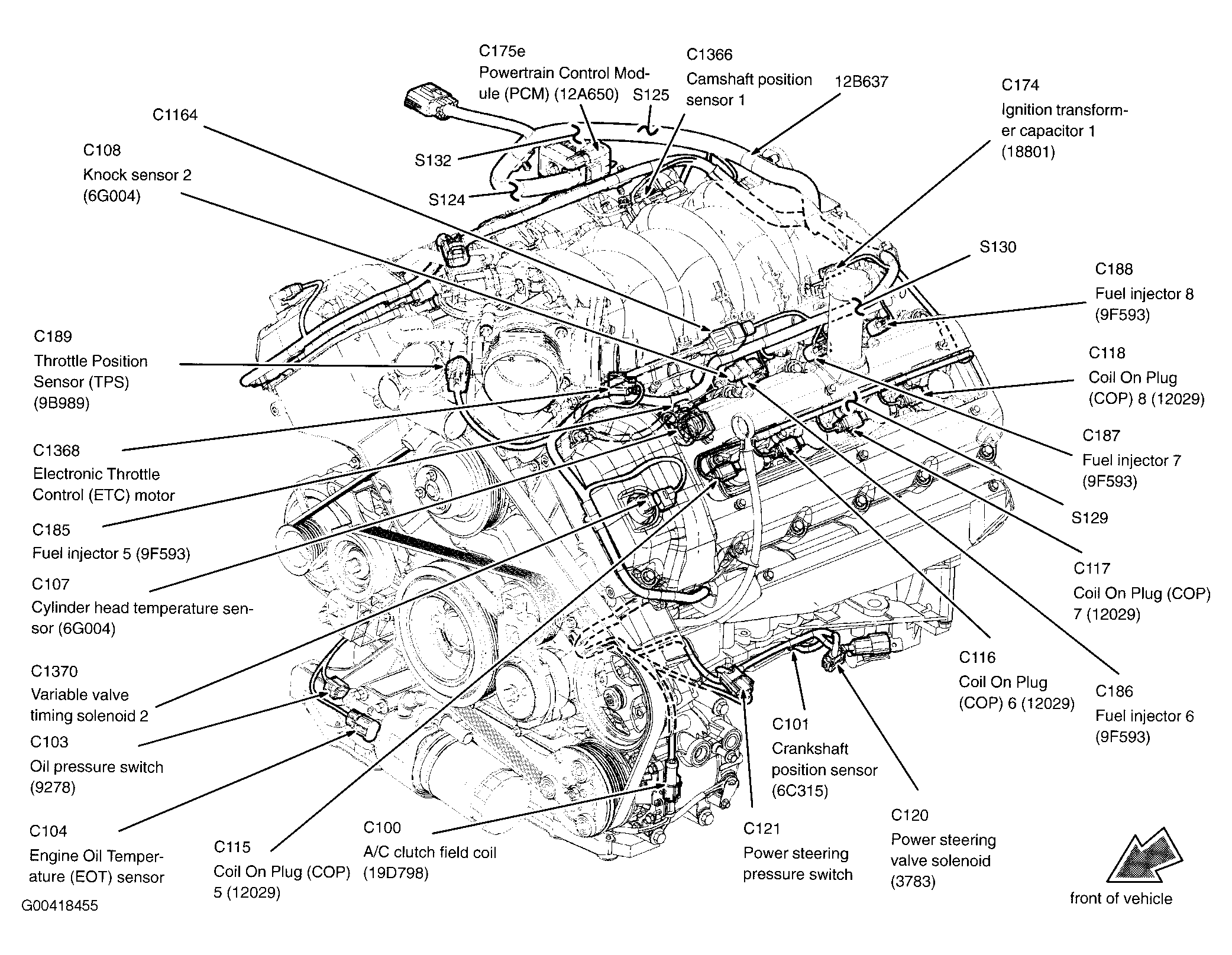

Read the announcement.
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Left Front Of Engine Compartment
Courtesy of FORD MOTOR CO.

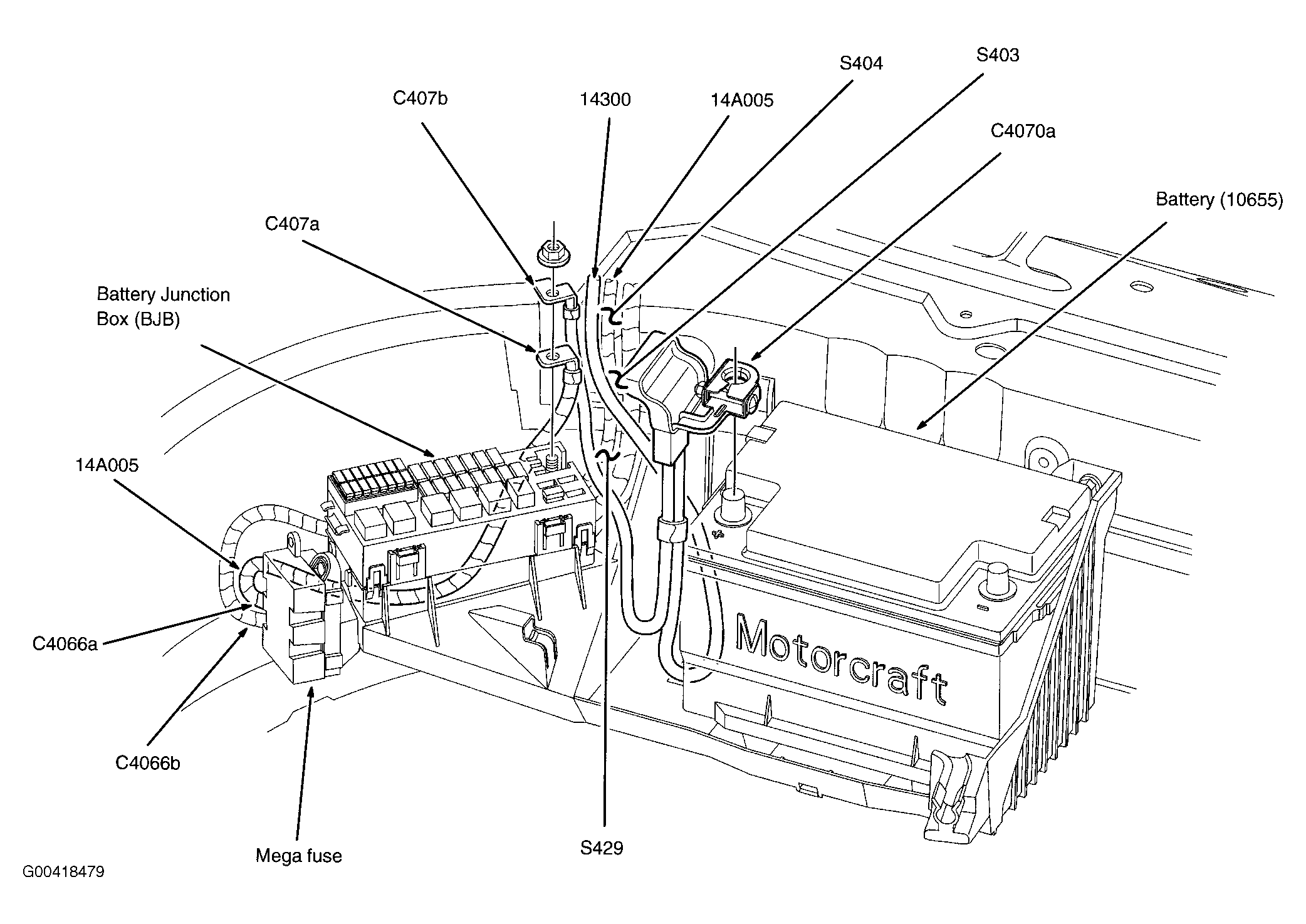

Fig 2: Right Front Of Engine Compartment
Courtesy of FORD MOTOR CO.

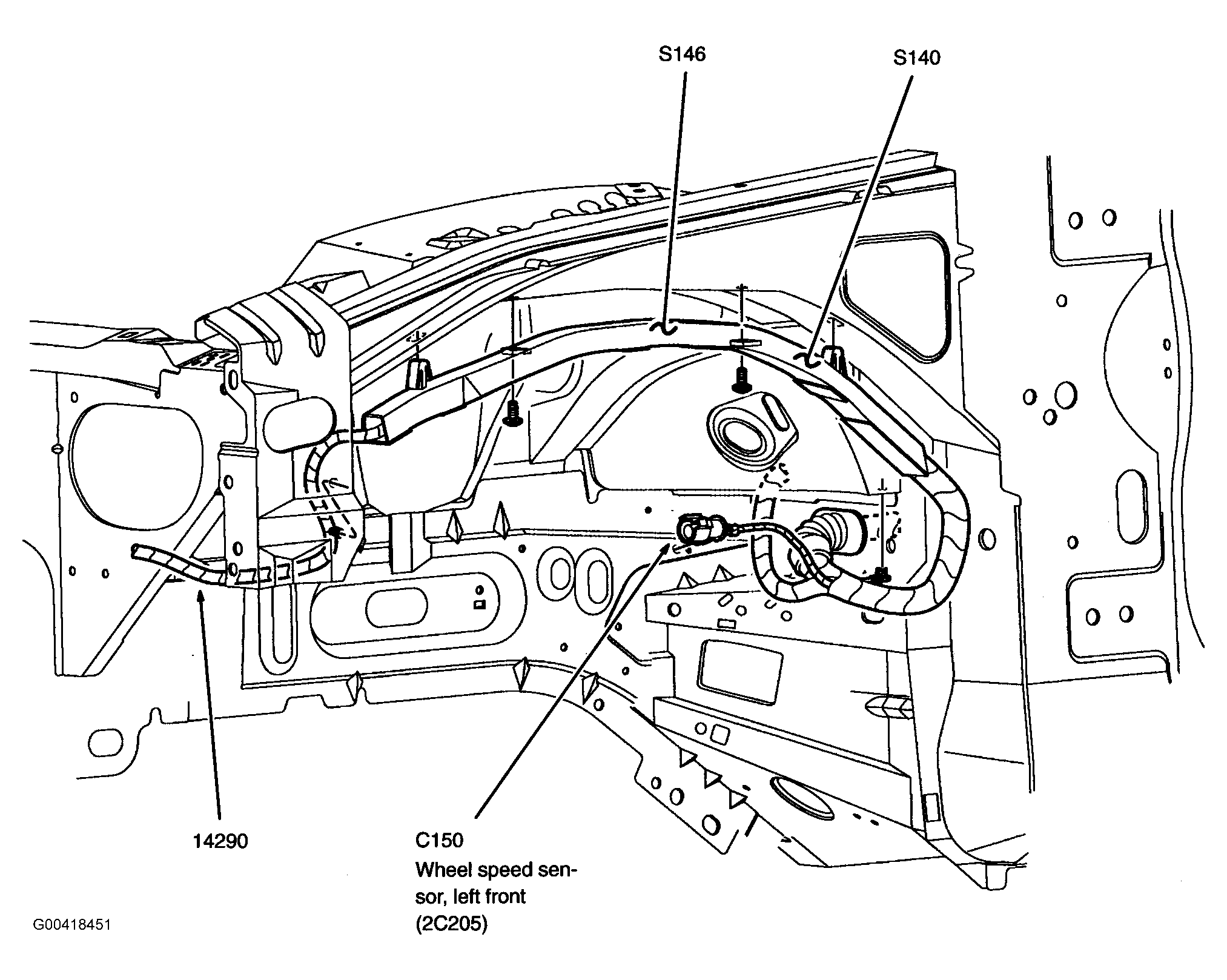

Fig 3: Left Front Fender
Courtesy of FORD MOTOR CO.

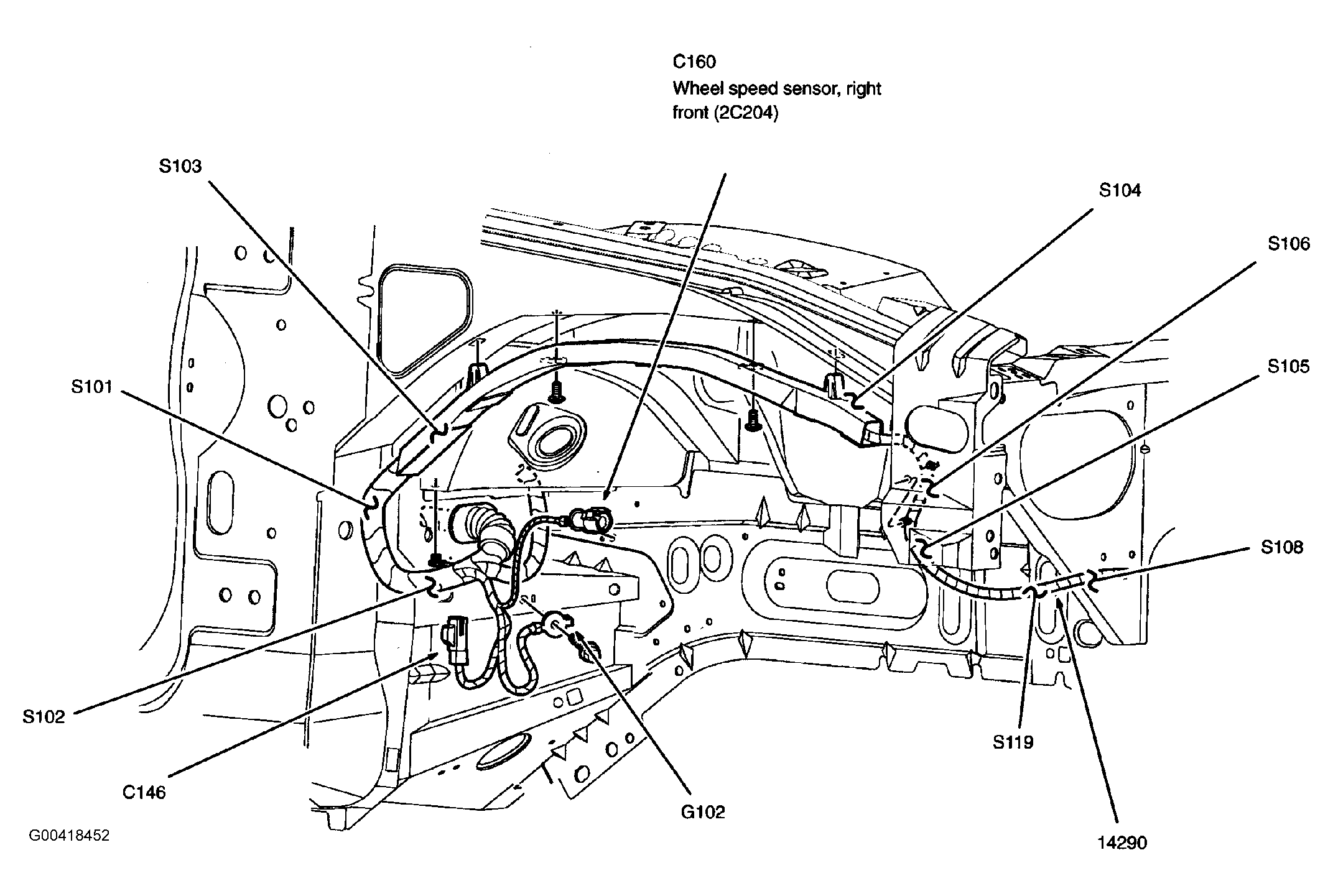

Fig 4: Right Front Fender
Courtesy of FORD MOTOR CO.

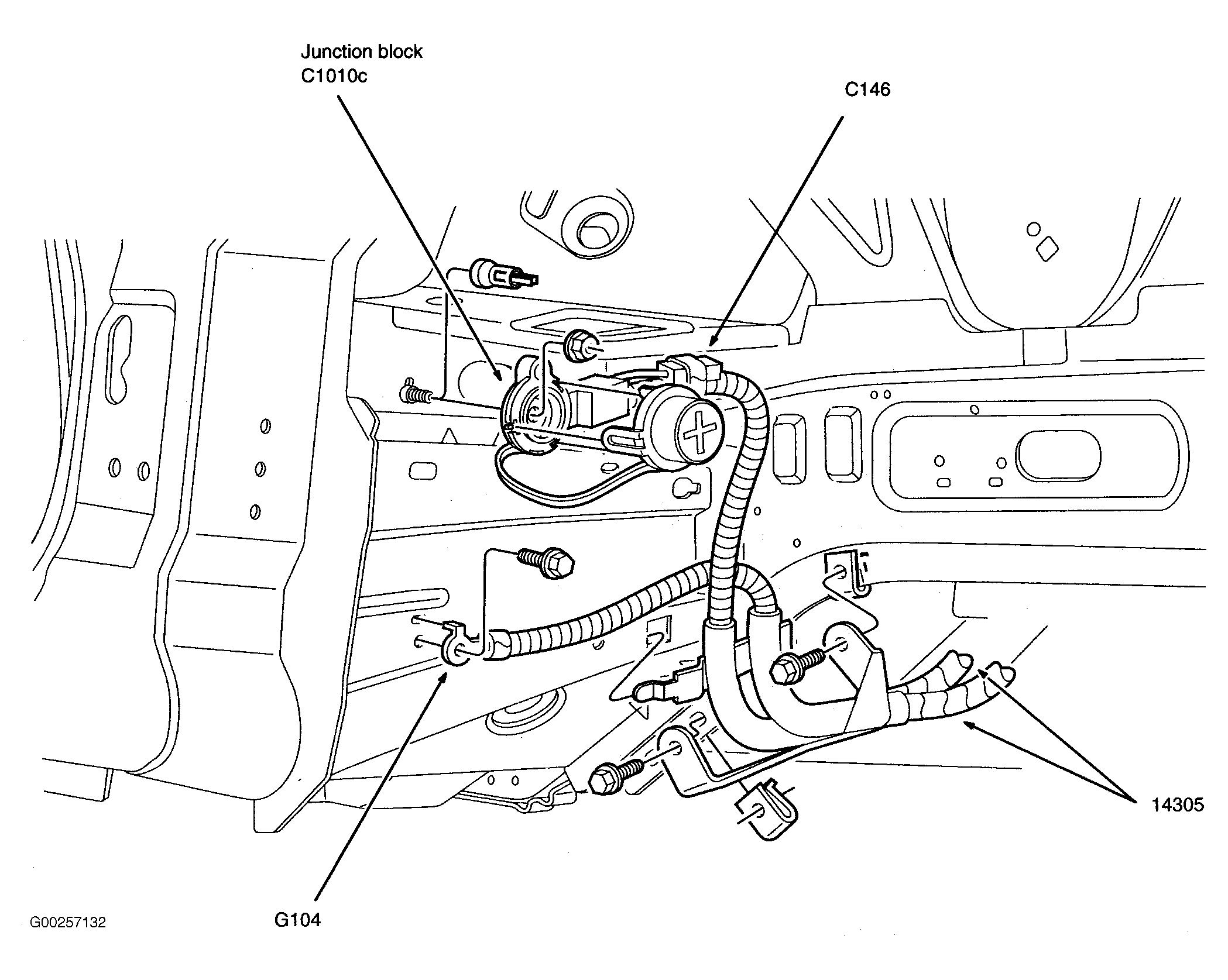

Fig 5: Right Front Fender
Courtesy of FORD MOTOR CO.

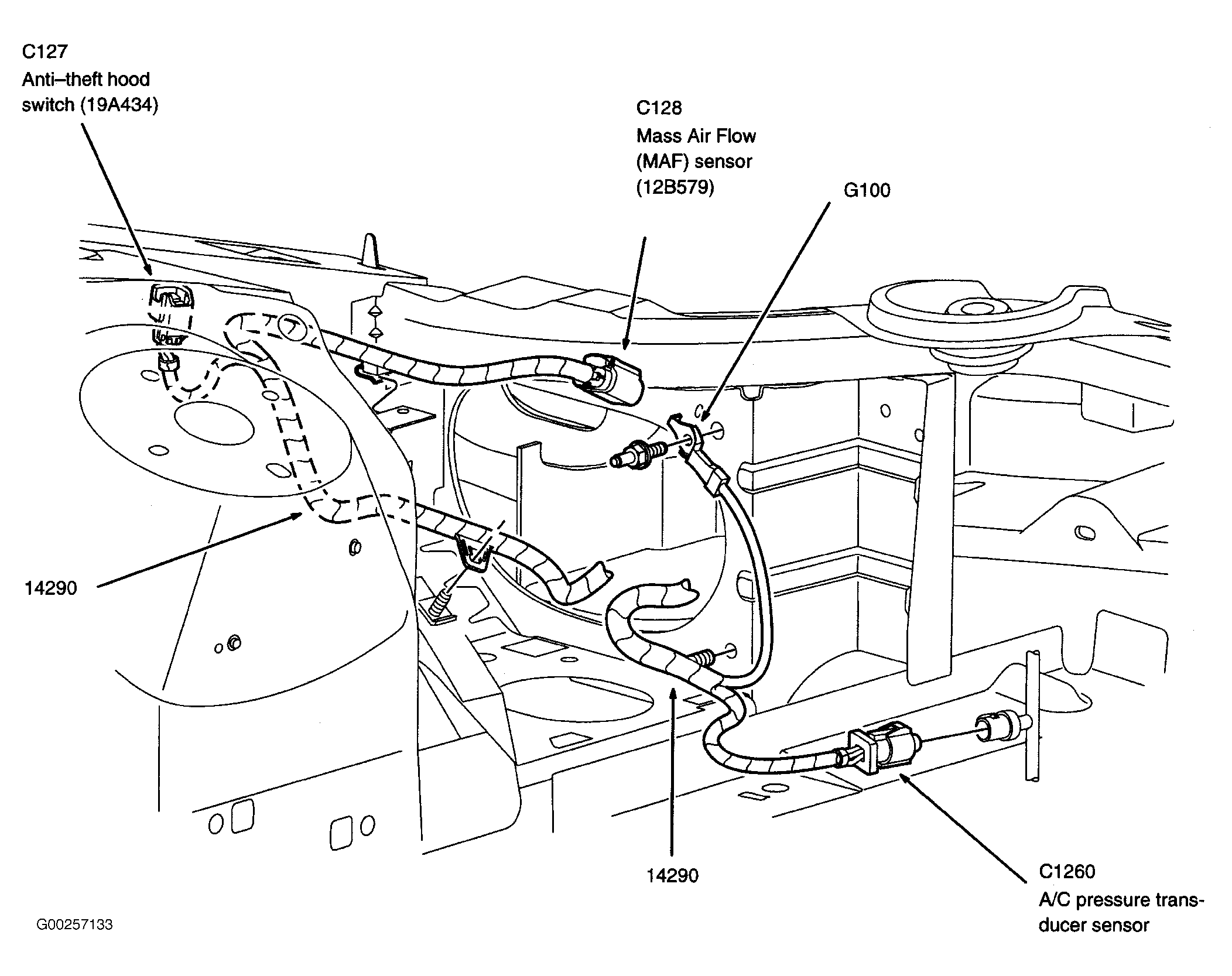

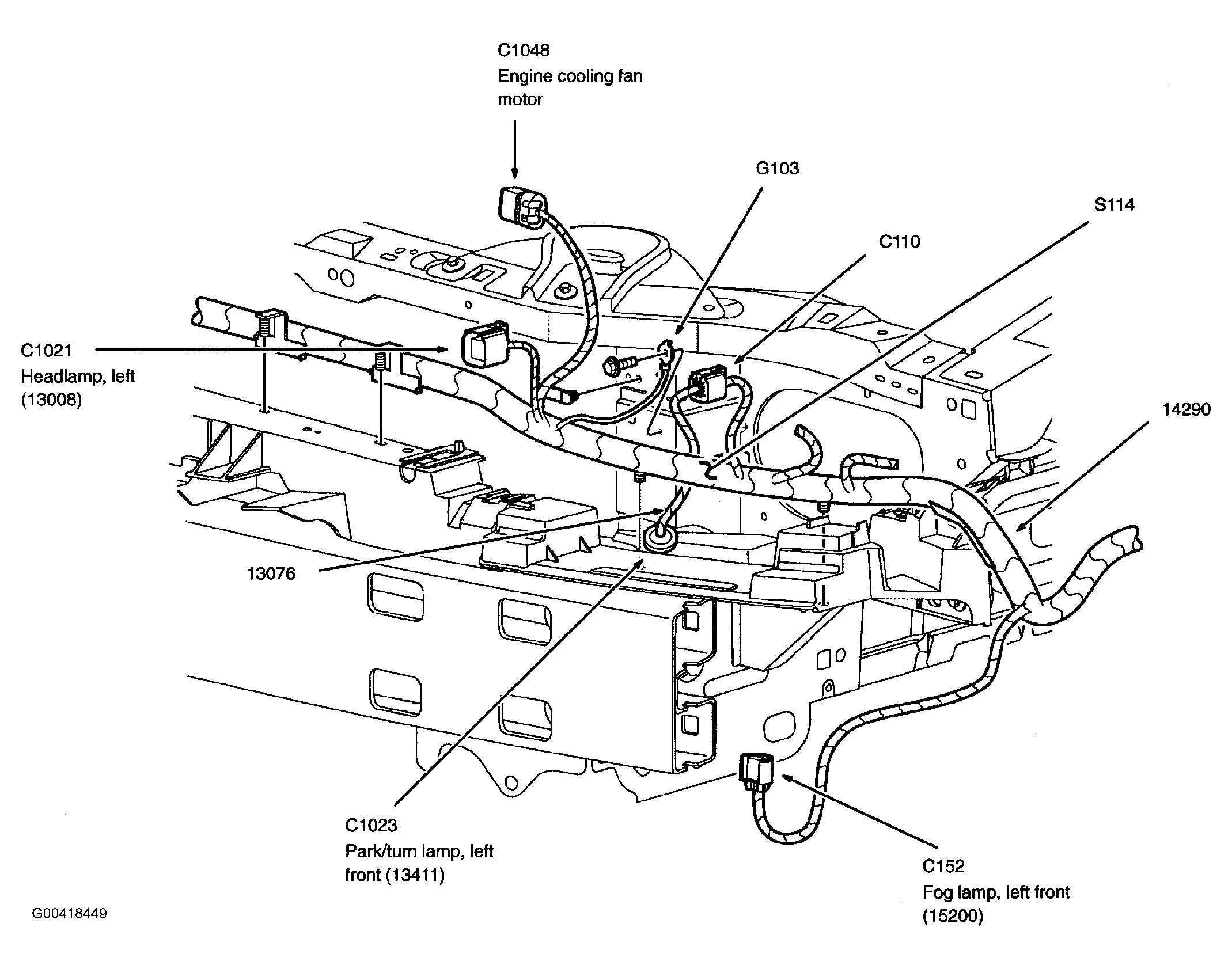

Fig 6: Left Radiator Support
Courtesy of FORD MOTOR CO.

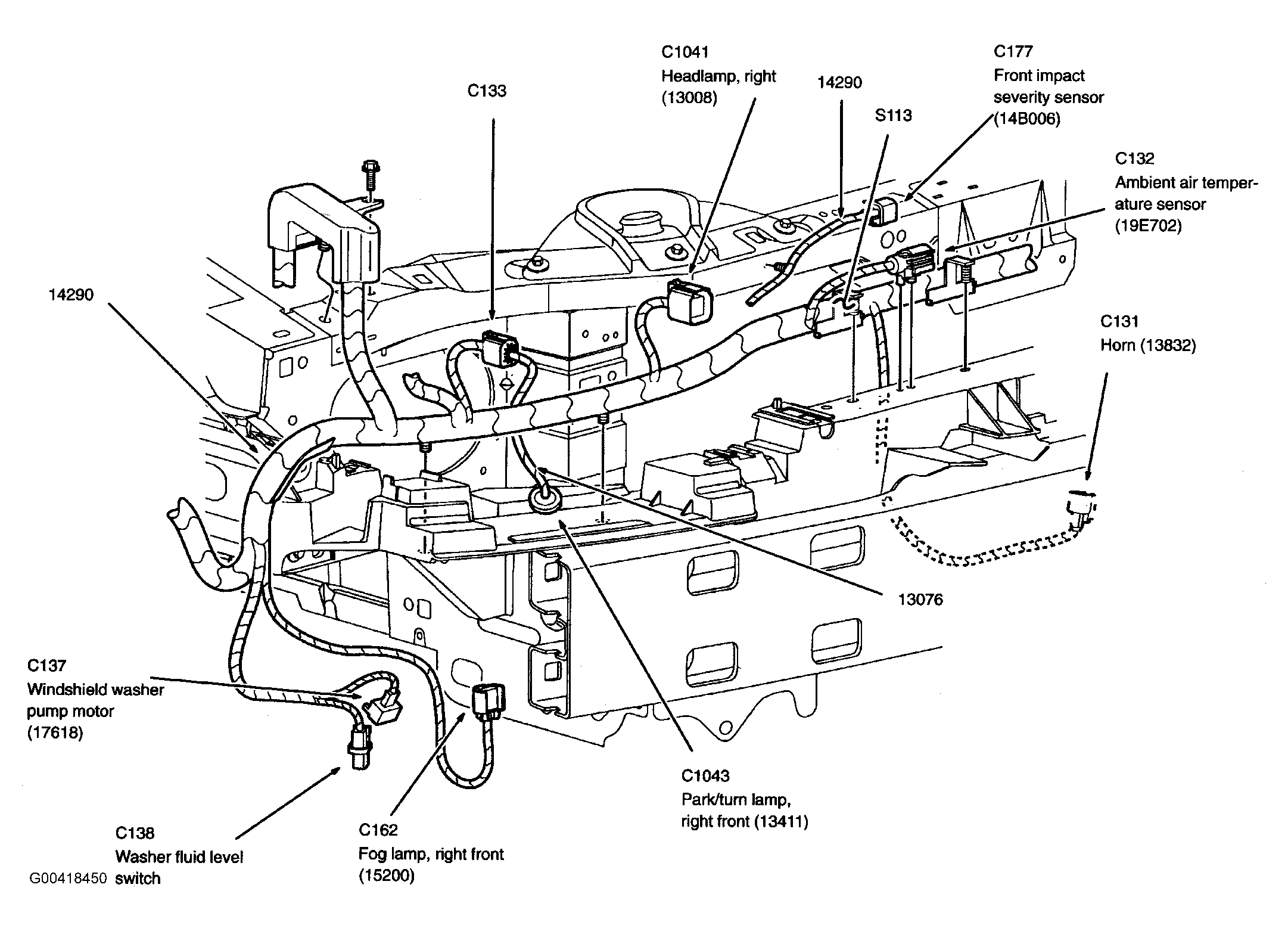

Fig 7: Right Radiator Support
Courtesy of FORD MOTOR CO.

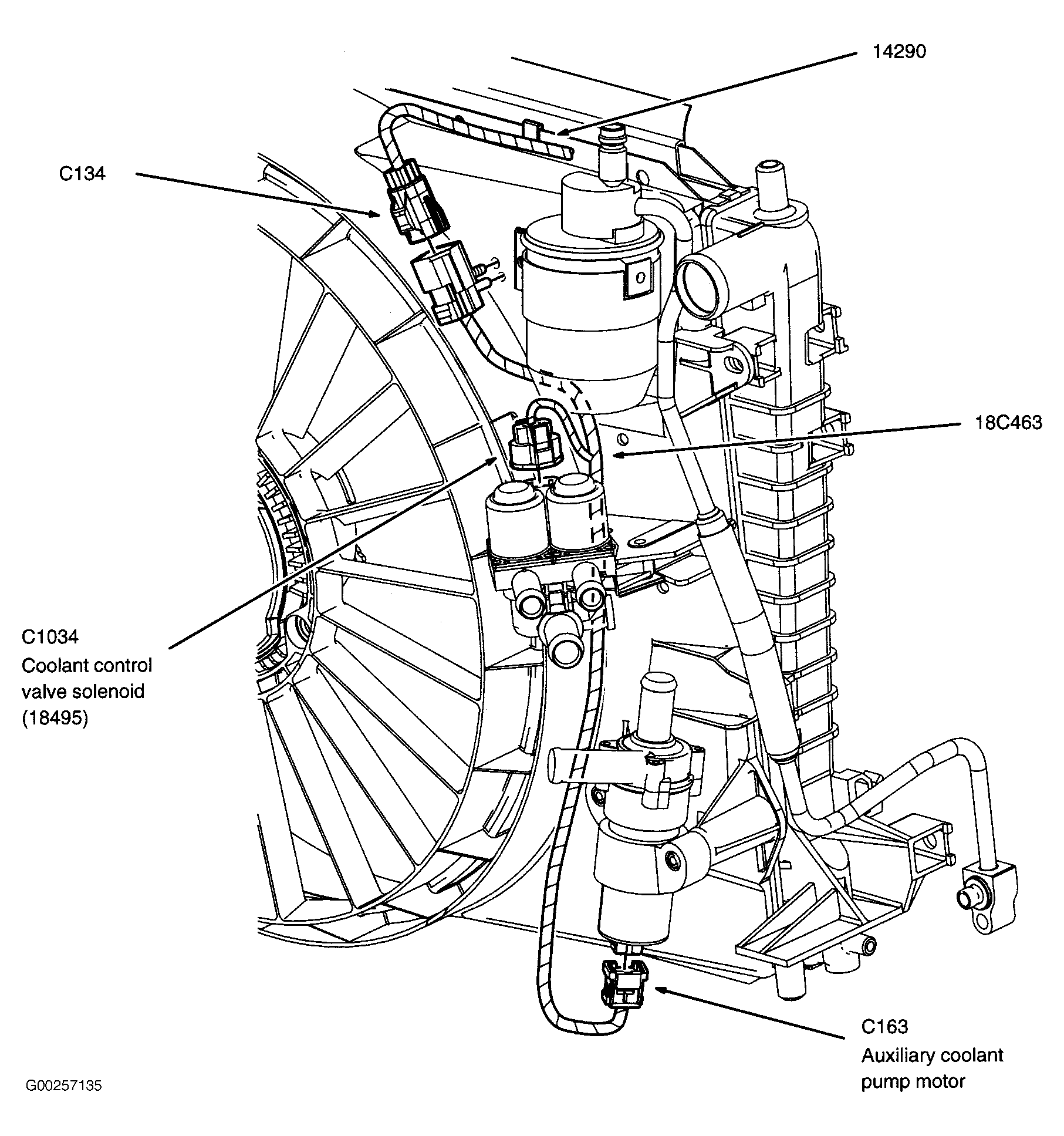

Fig 8: Right Side Of Radiator
Courtesy of FORD MOTOR CO.

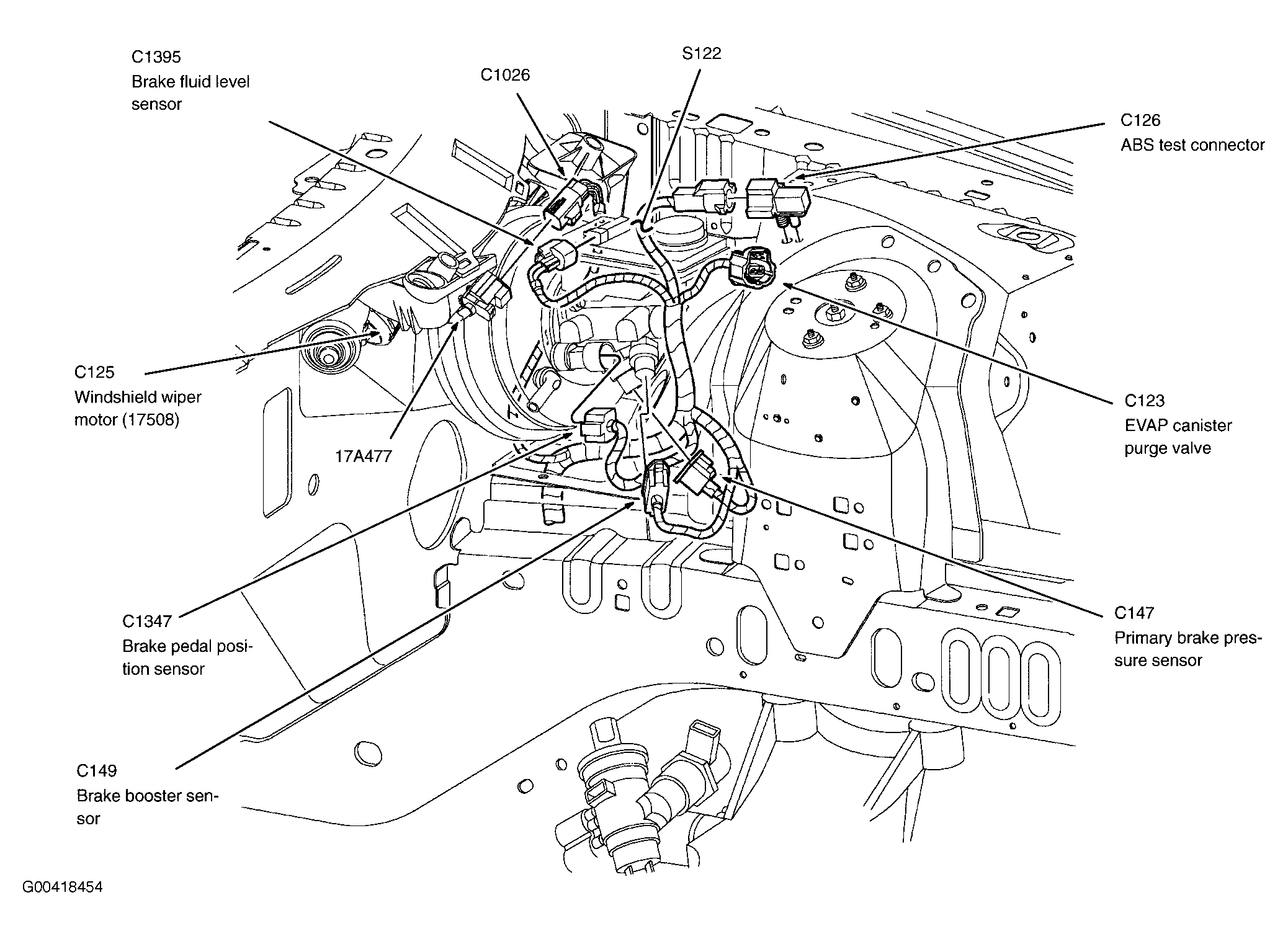

Fig 9: Left Shock Tower
Courtesy of FORD MOTOR CO.
Fig 10: Right Shock Tower
Courtesy of FORD MOTOR CO.
Fig 11: Right Side Of Engine
Courtesy of FORD MOTOR CO.

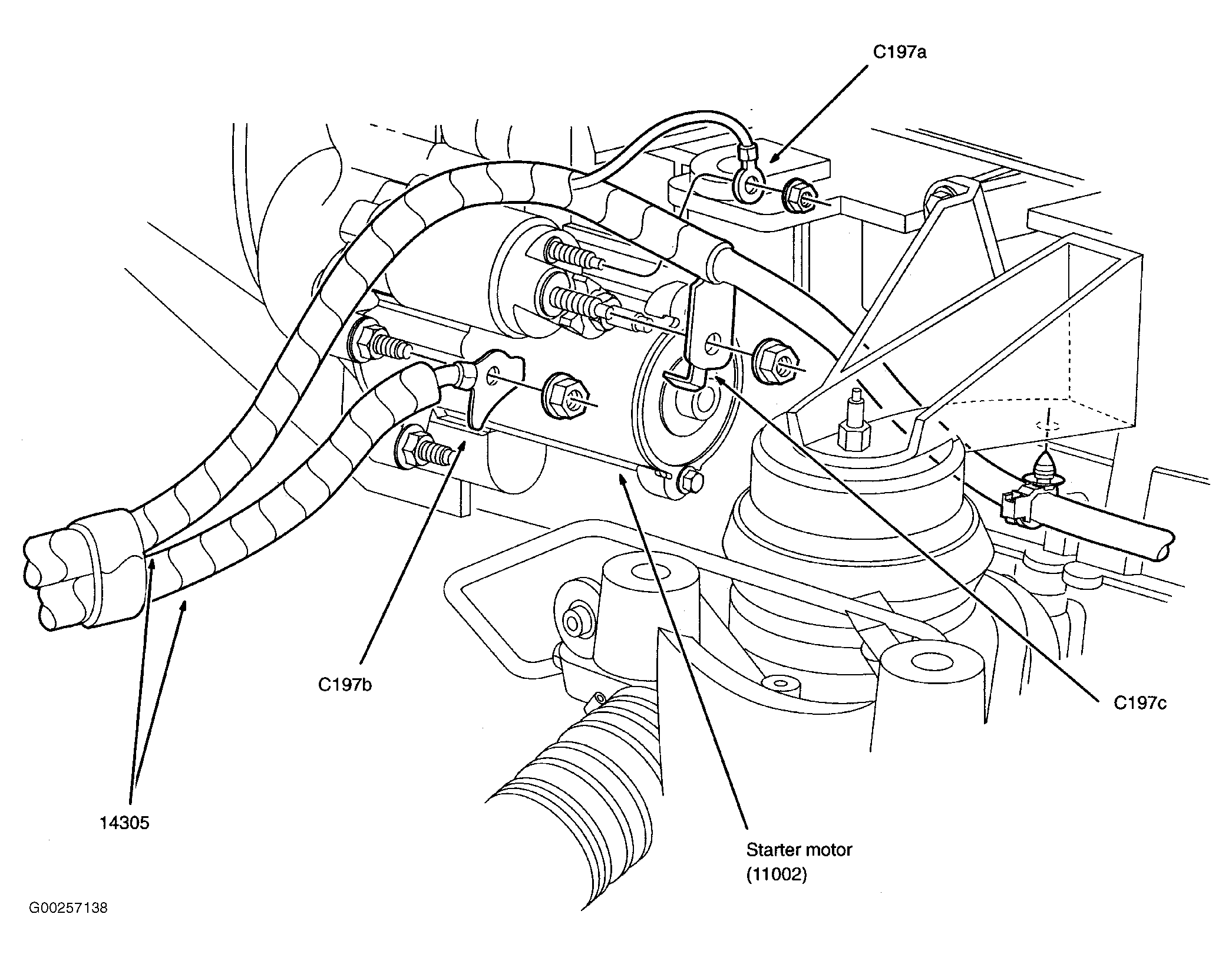

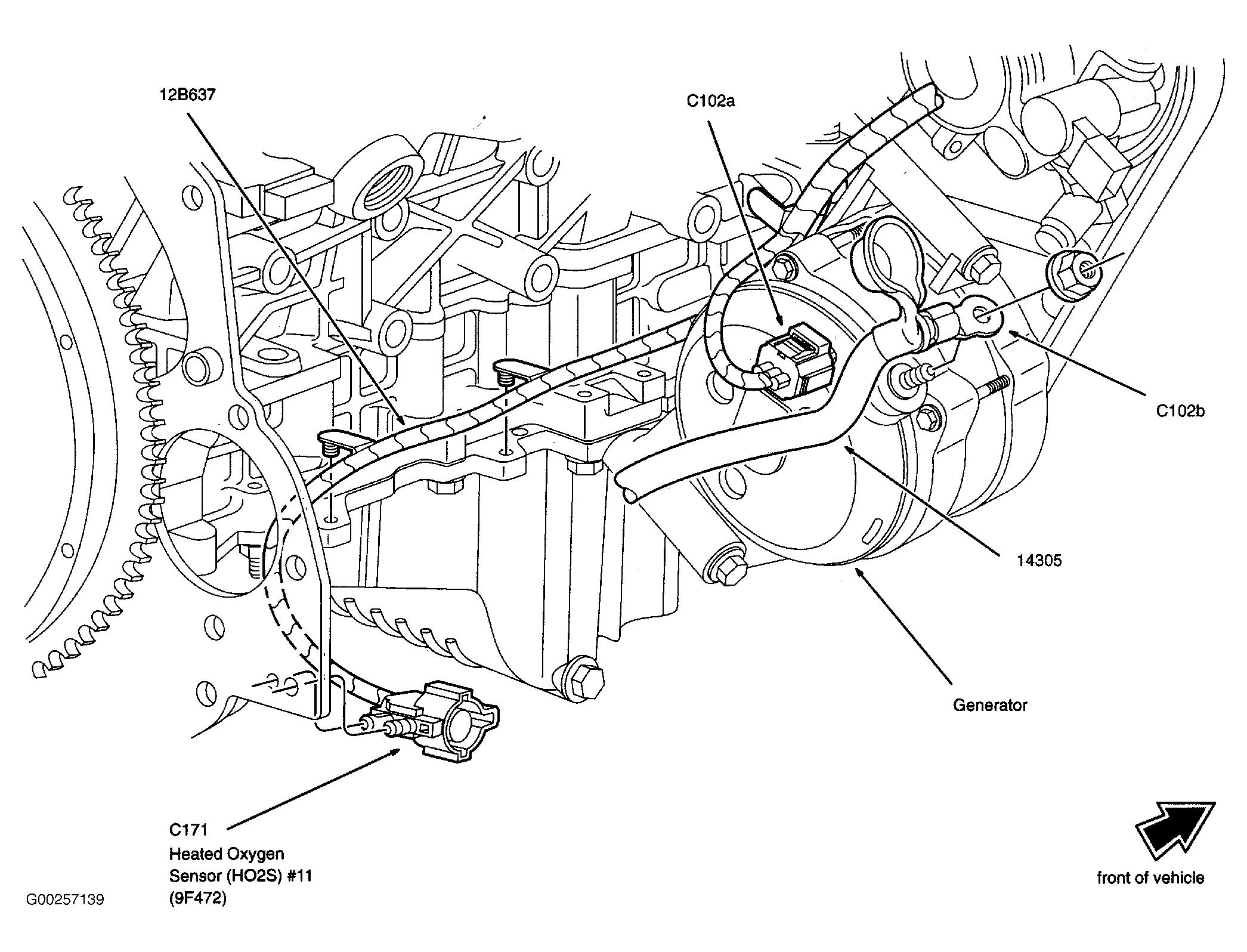

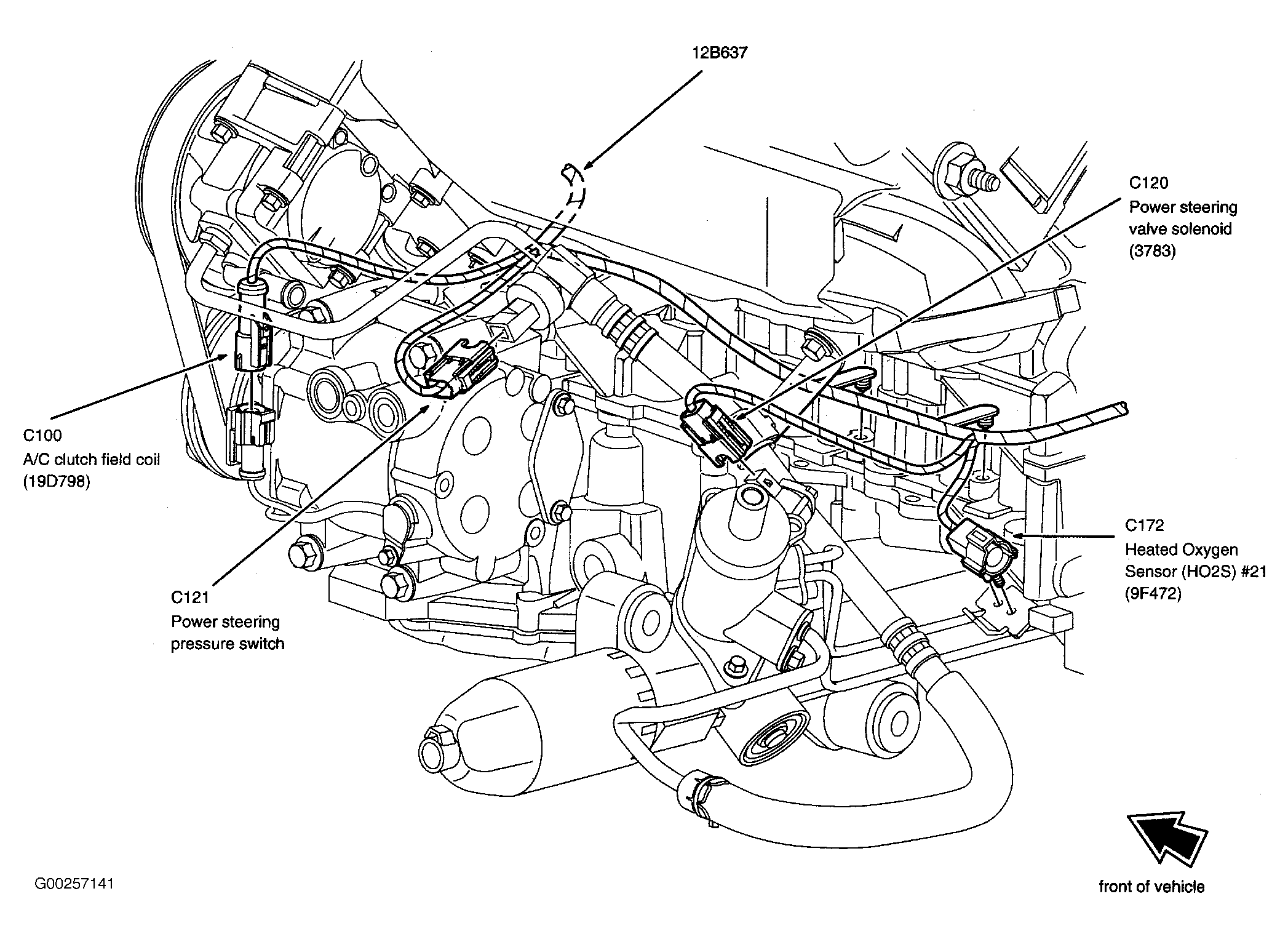

Fig 12: Lower Right Side Of Engine
Courtesy of FORD MOTOR CO.
Fig 13: Left Side Of Engine
Courtesy of FORD MOTOR CO.
Fig 14: Front View Of Engine
Courtesy of FORD MOTOR CO.
Fig 15: Rear View Of Engine
Courtesy of FORD MOTOR CO.

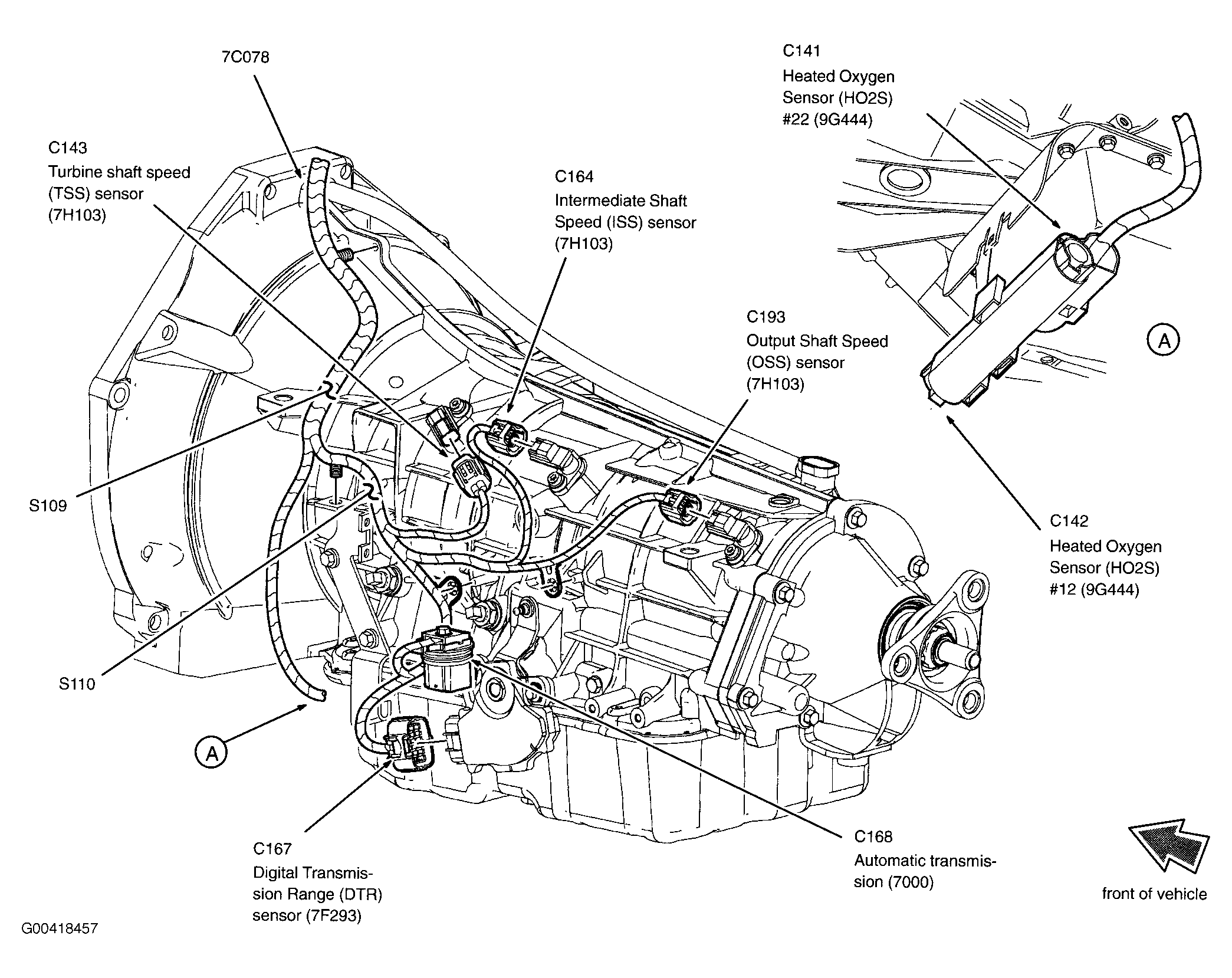

Fig 16: Left Side Of Transmission
Courtesy of FORD MOTOR CO.
Fig 17: Rear View Of Dash
Courtesy of FORD MOTOR CO.
Fig 18: Rear View Of Dash
Courtesy of FORD MOTOR CO.
Fig 19: Steering Column
Courtesy of FORD MOTOR CO.

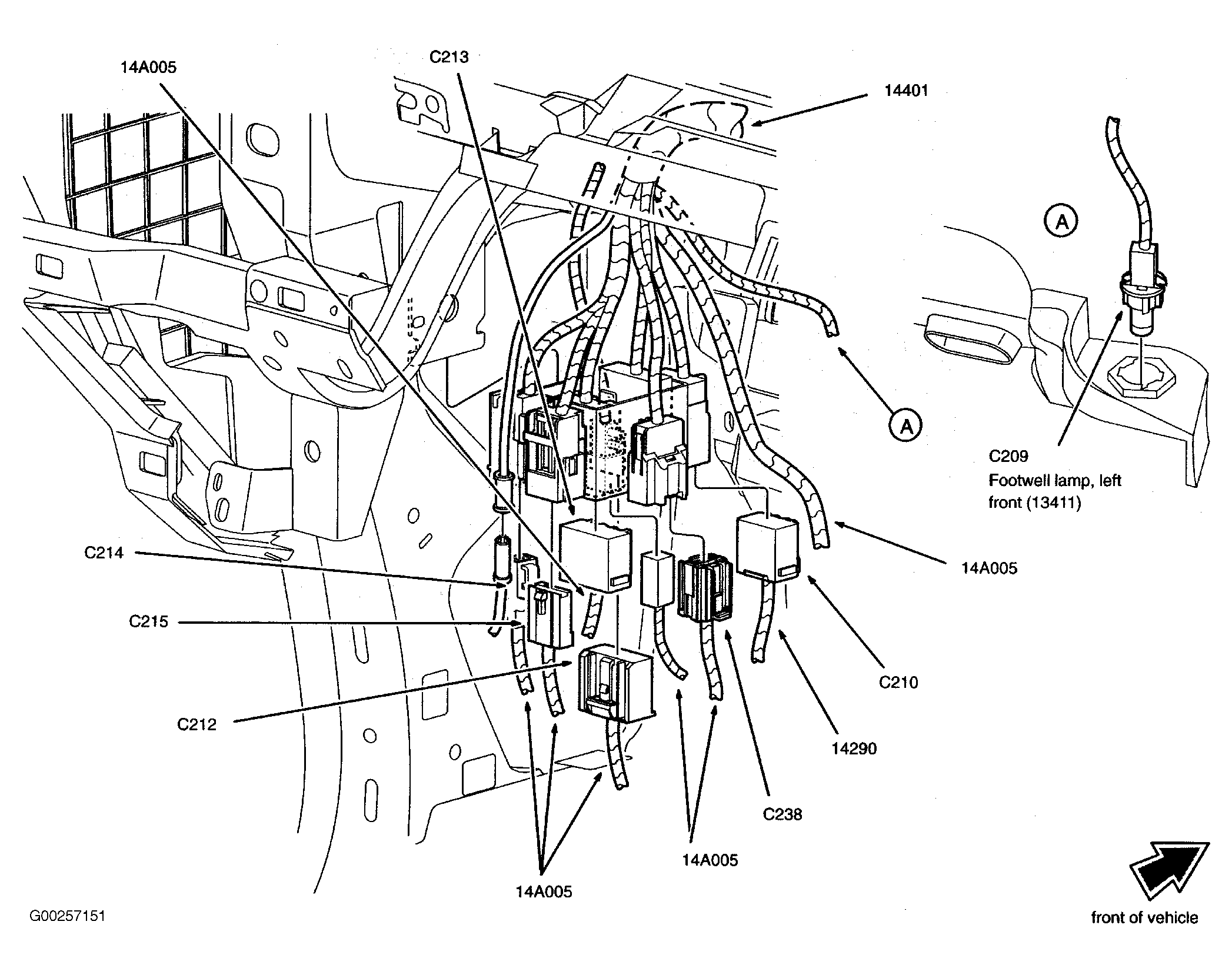

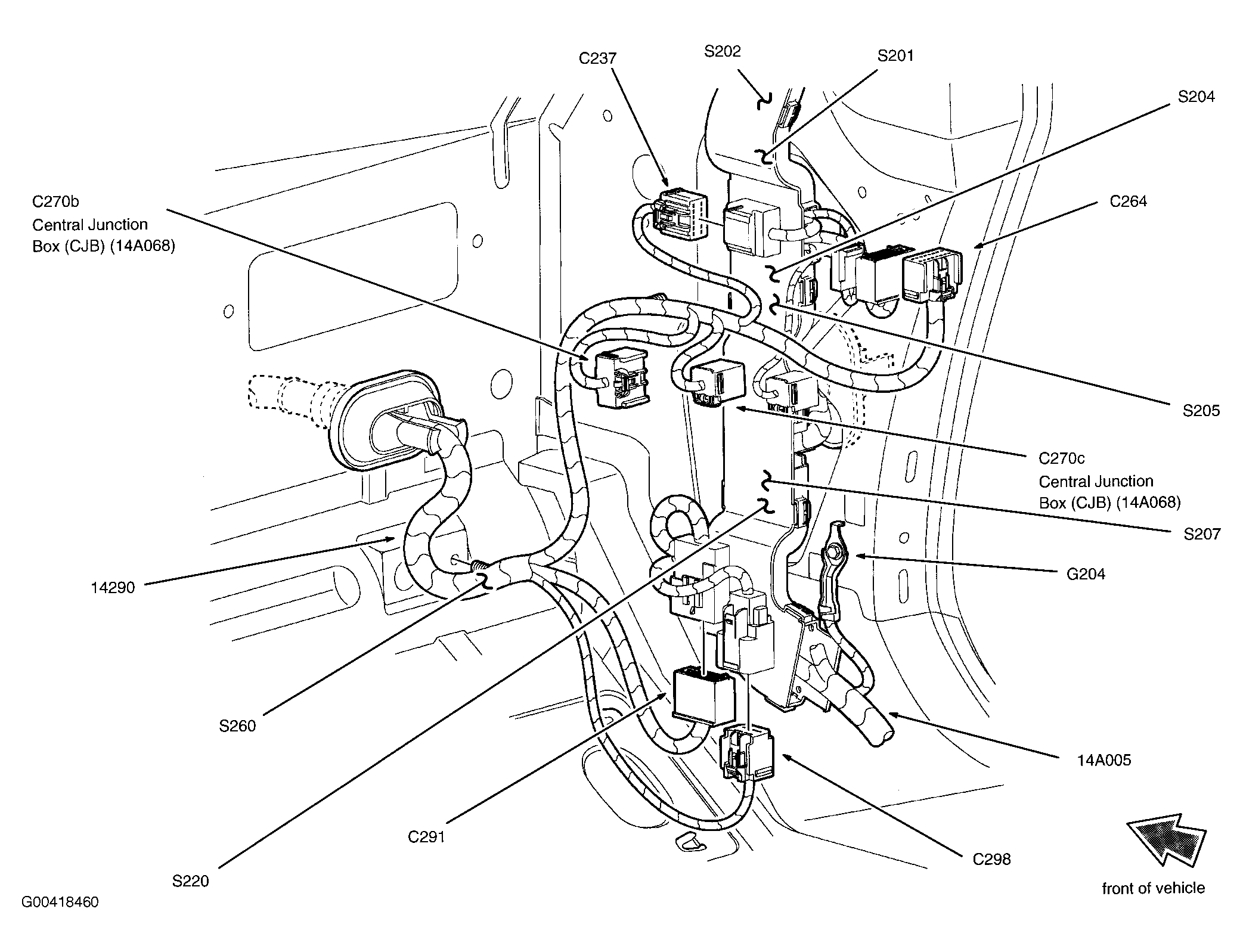

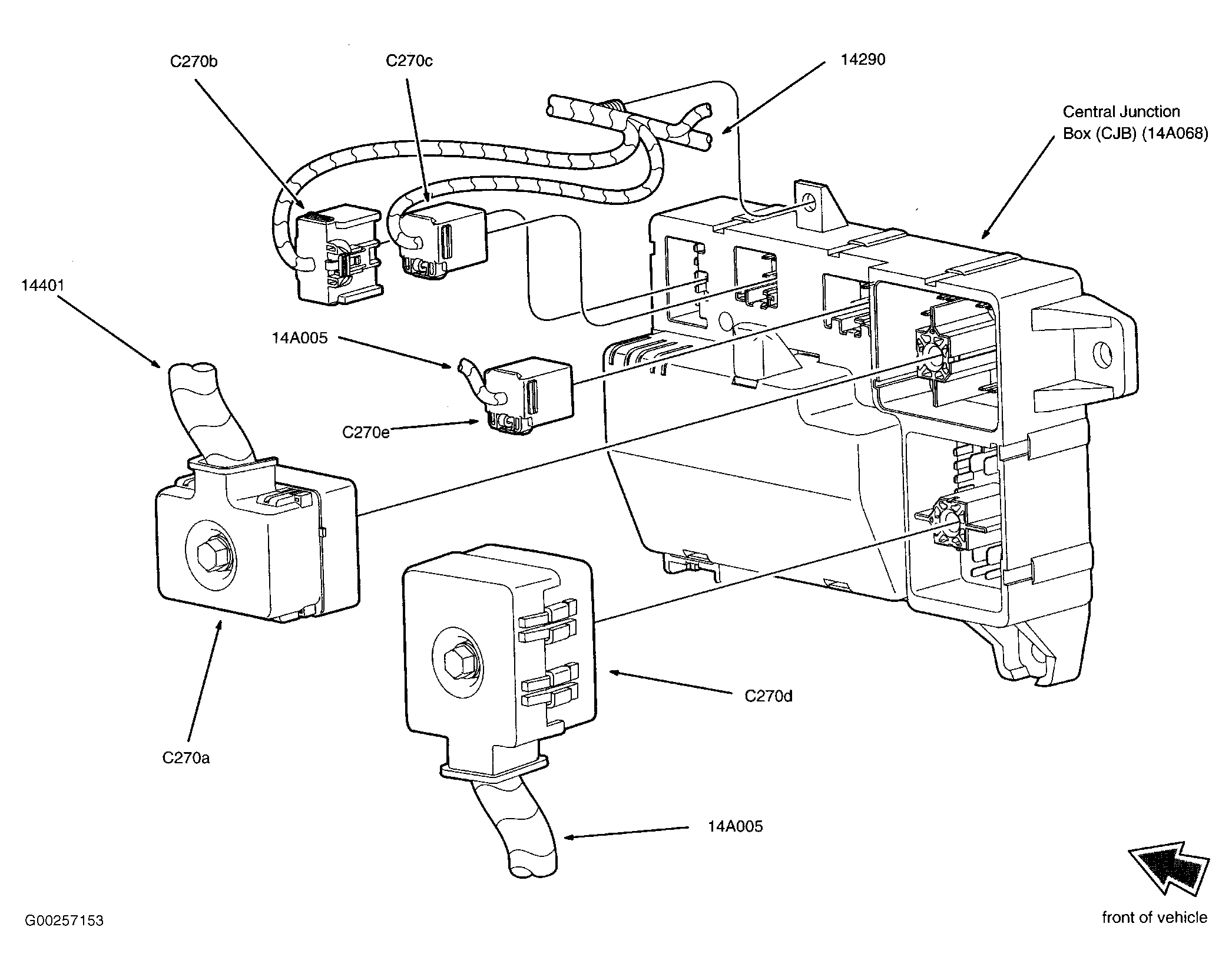

Fig 20: Left Kick Panel
Courtesy of FORD MOTOR CO.
Fig 21: Lower Left Side Of Dash
Courtesy of FORD MOTOR CO.
Fig 22: Lower Left Side Of Dash
Courtesy of FORD MOTOR CO.

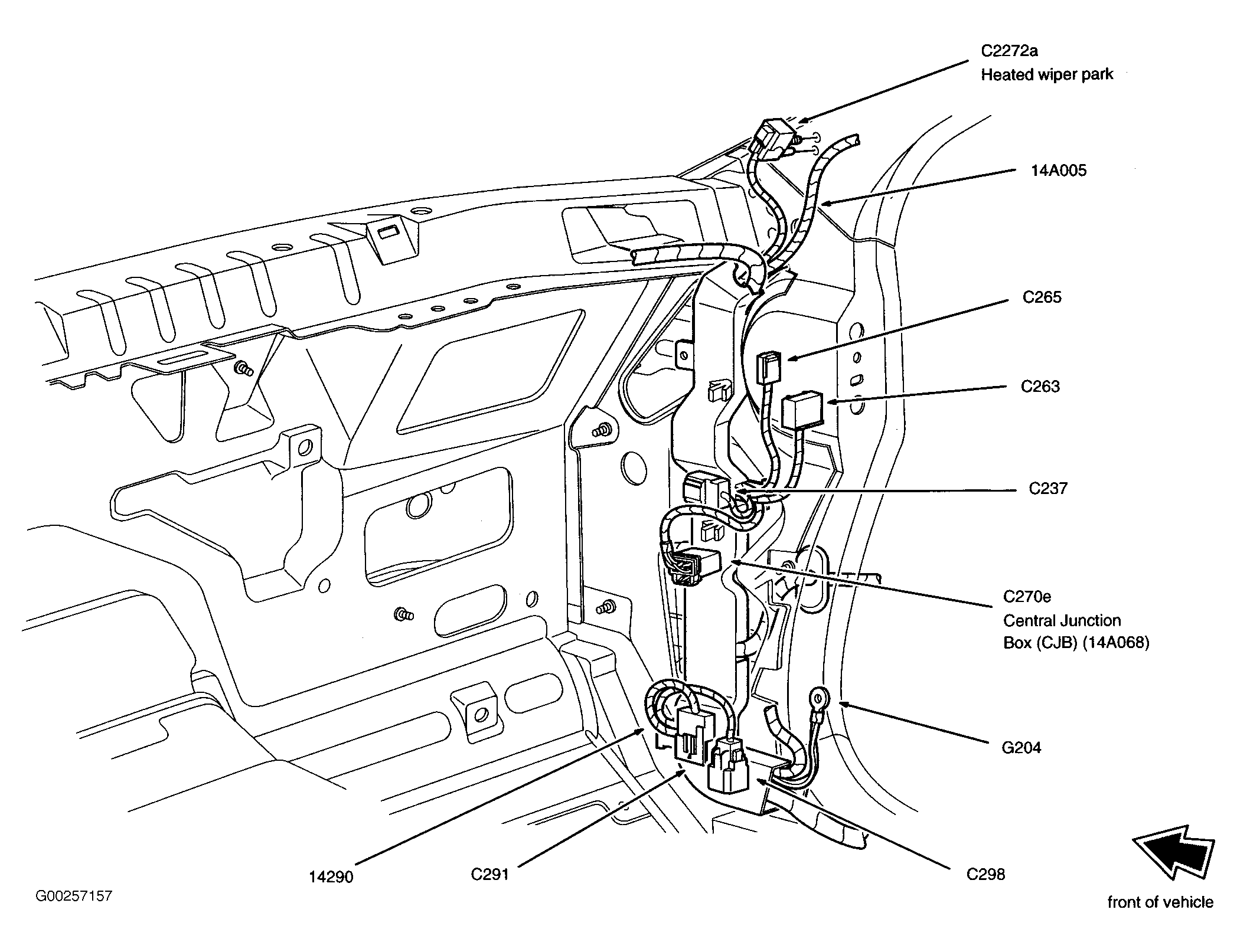

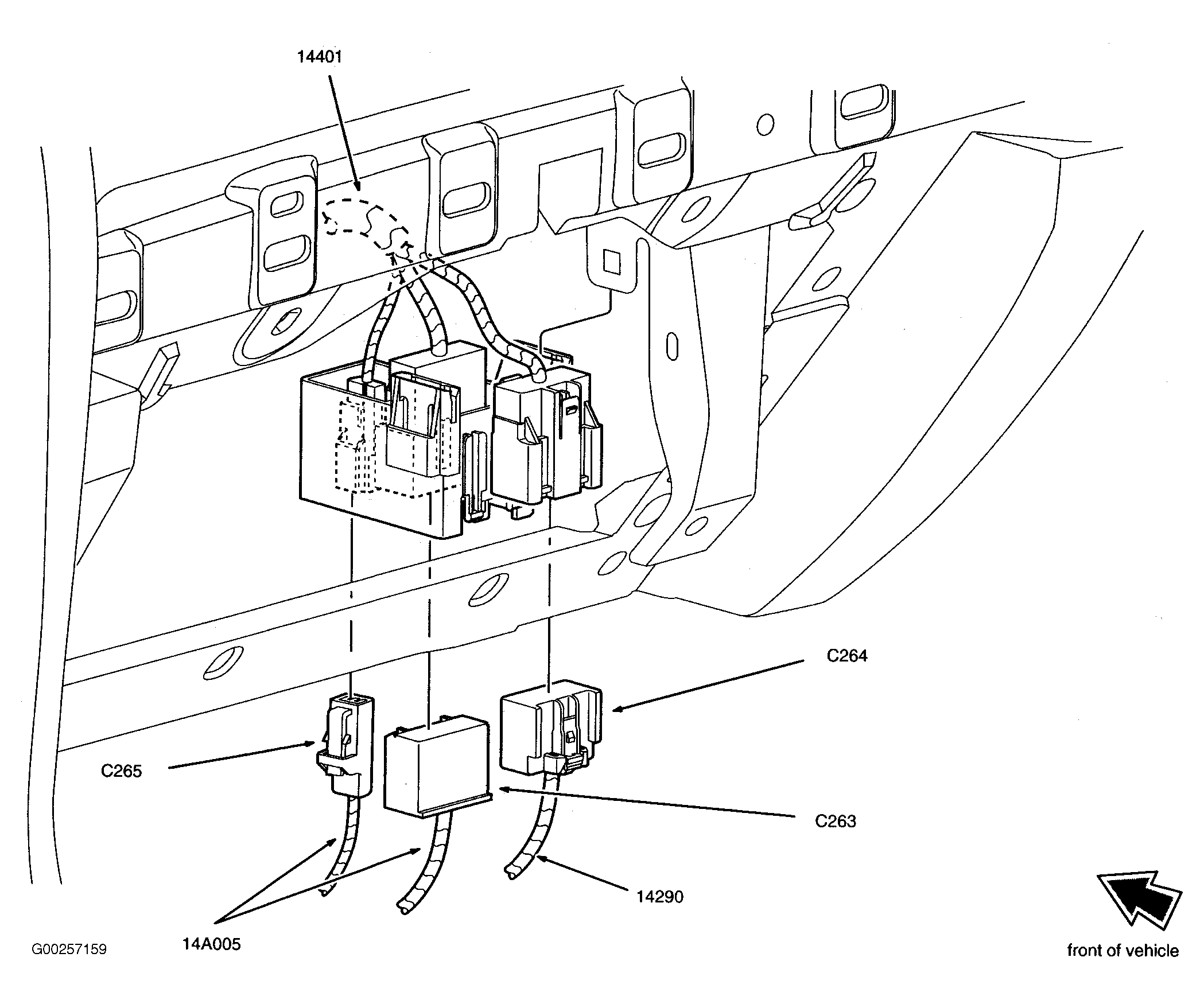

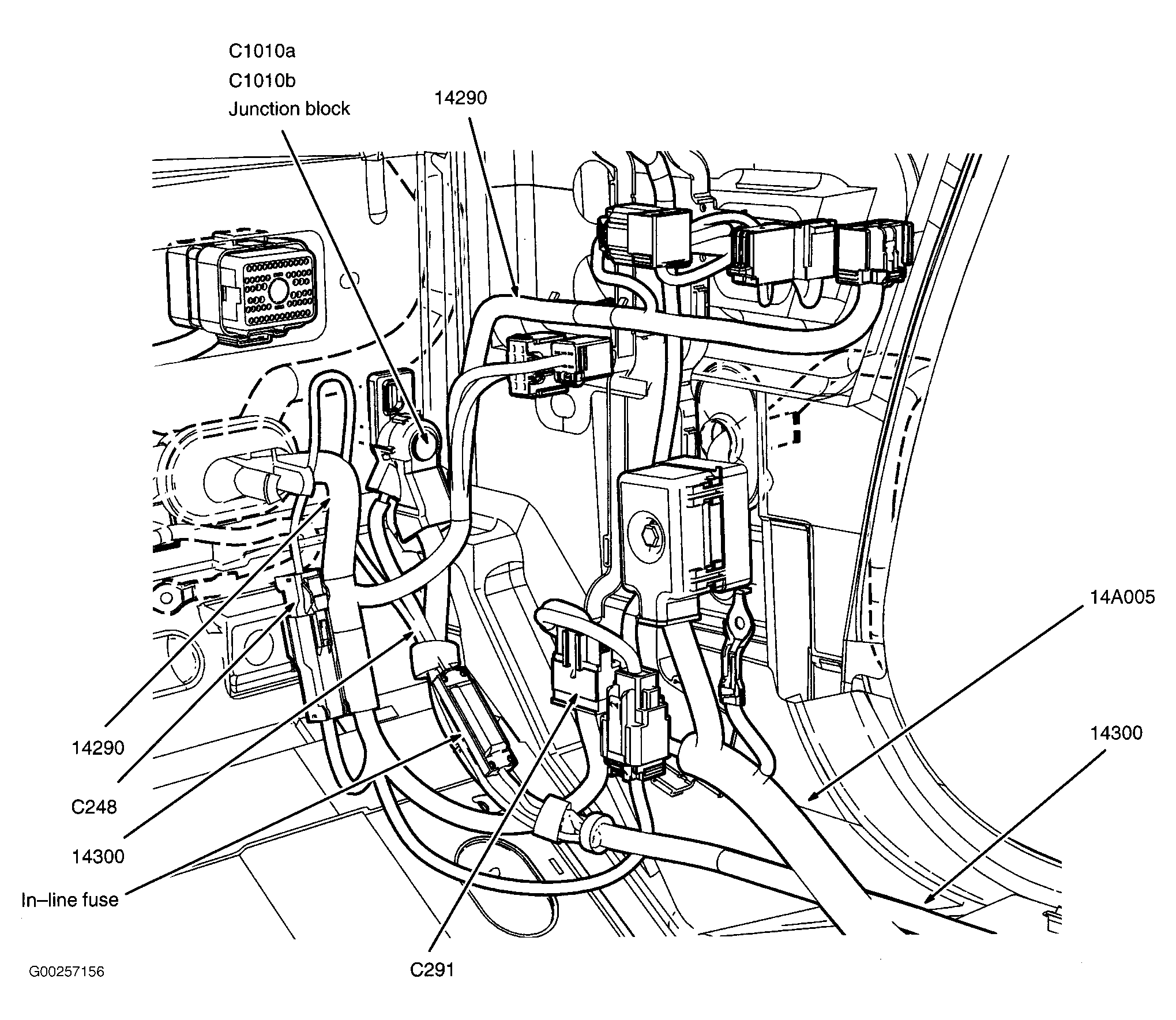

Fig 23: Right Kick Panel
Courtesy of FORD MOTOR CO.
Fig 24: Left Kick Panel
Courtesy of FORD MOTOR CO.

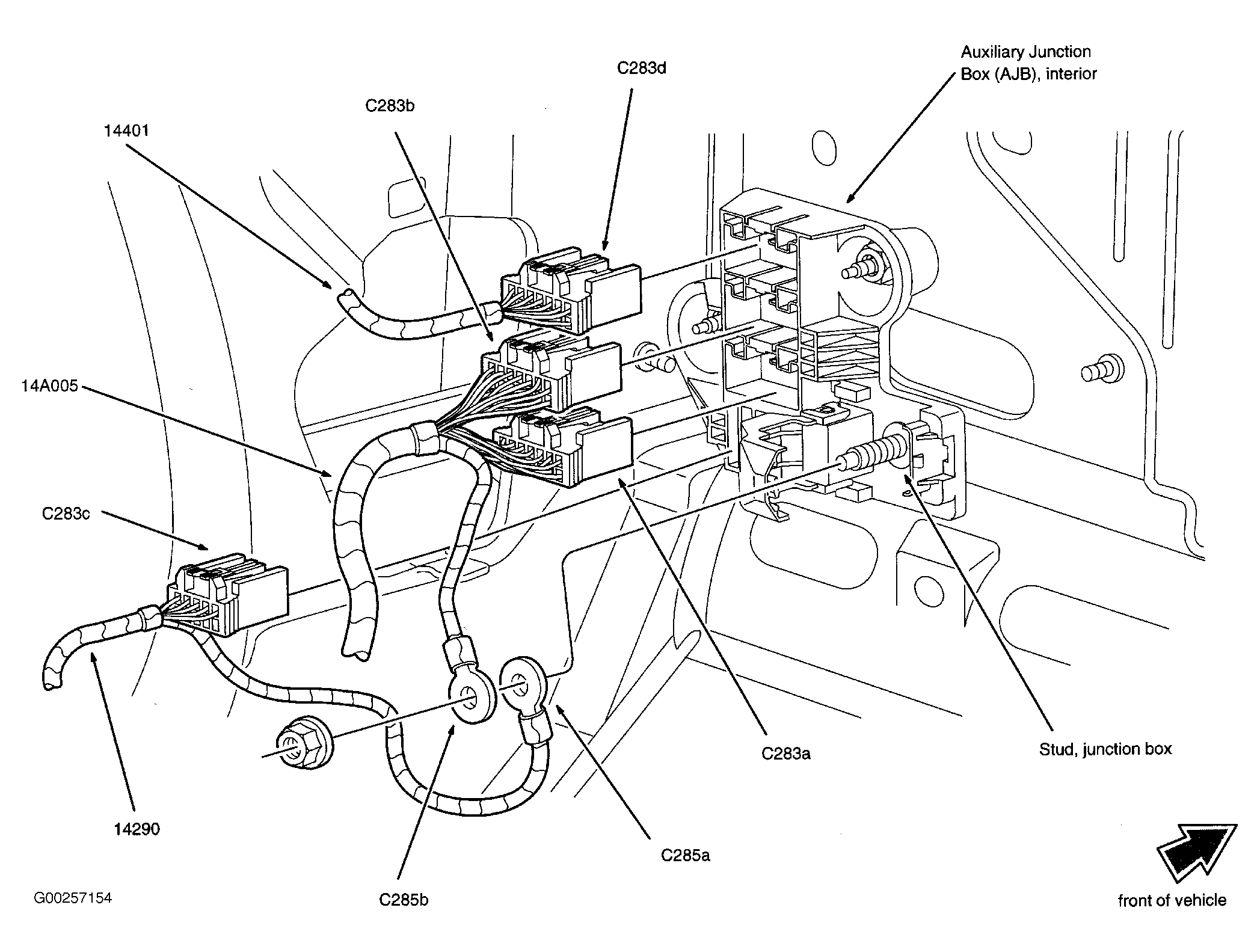

Fig 25: Right Kick Panel
Courtesy of FORD MOTOR CO.
Fig 26: Right Kick Panel
Courtesy of FORD MOTOR CO.
Fig 27: Right Kick Panel
Courtesy of FORD MOTOR CO.
Fig 28: Right "A" Pillar (Left Side Similar)
Courtesy of FORD MOTOR CO.
Fig 29: Lower Right Side Of Dash
Courtesy of FORD MOTOR CO.
Fig 30: Upper Right Side Of Dash
Courtesy of FORD MOTOR CO.
Fig 31: Left Front Seat
Courtesy of FORD MOTOR CO.
Fig 32: Right Front Seat
Courtesy of FORD MOTOR CO.

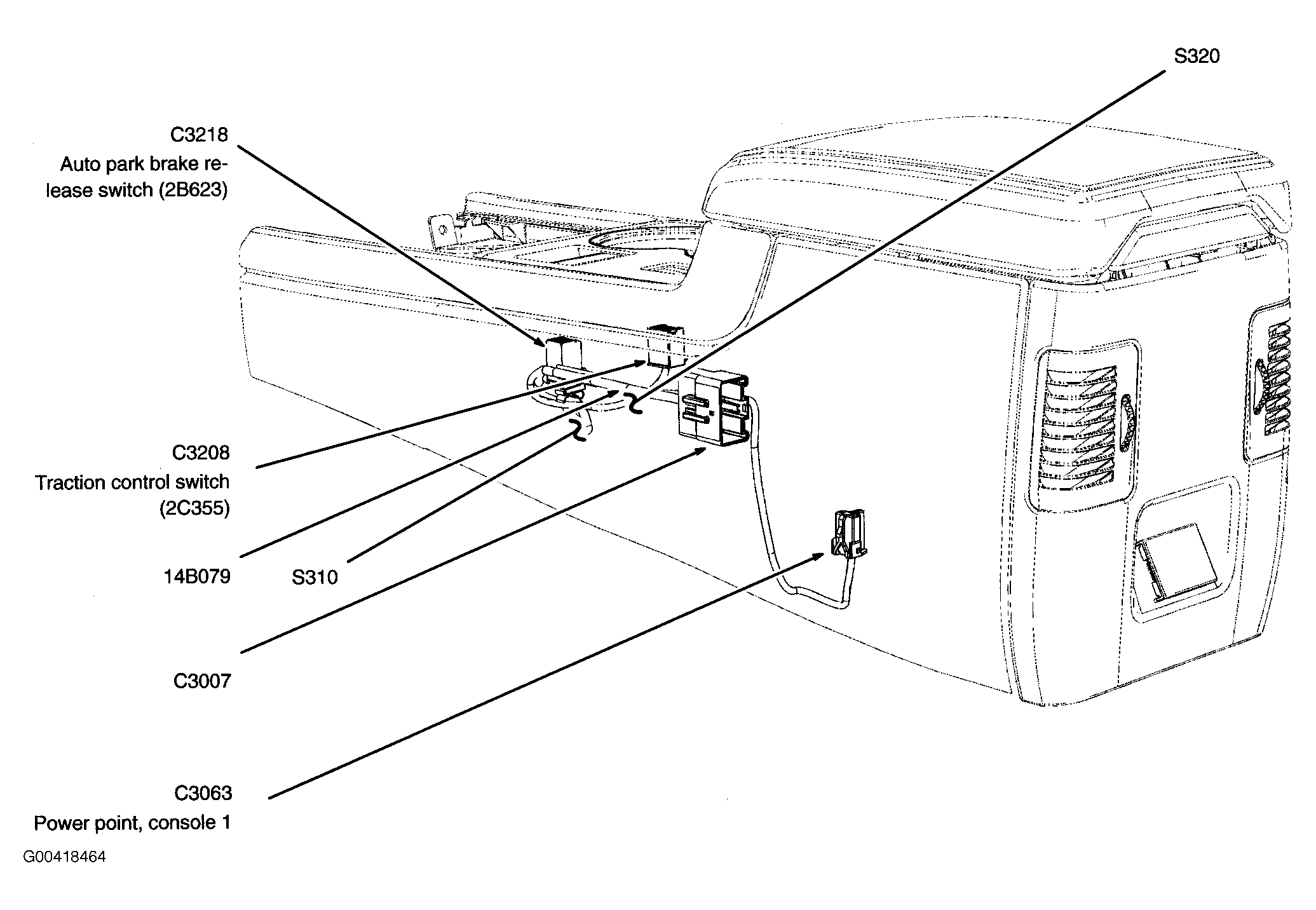

Fig 33: Center Console
Courtesy of FORD MOTOR CO.
Fig 34: Center Of Floor Pan
Courtesy of FORD MOTOR CO.

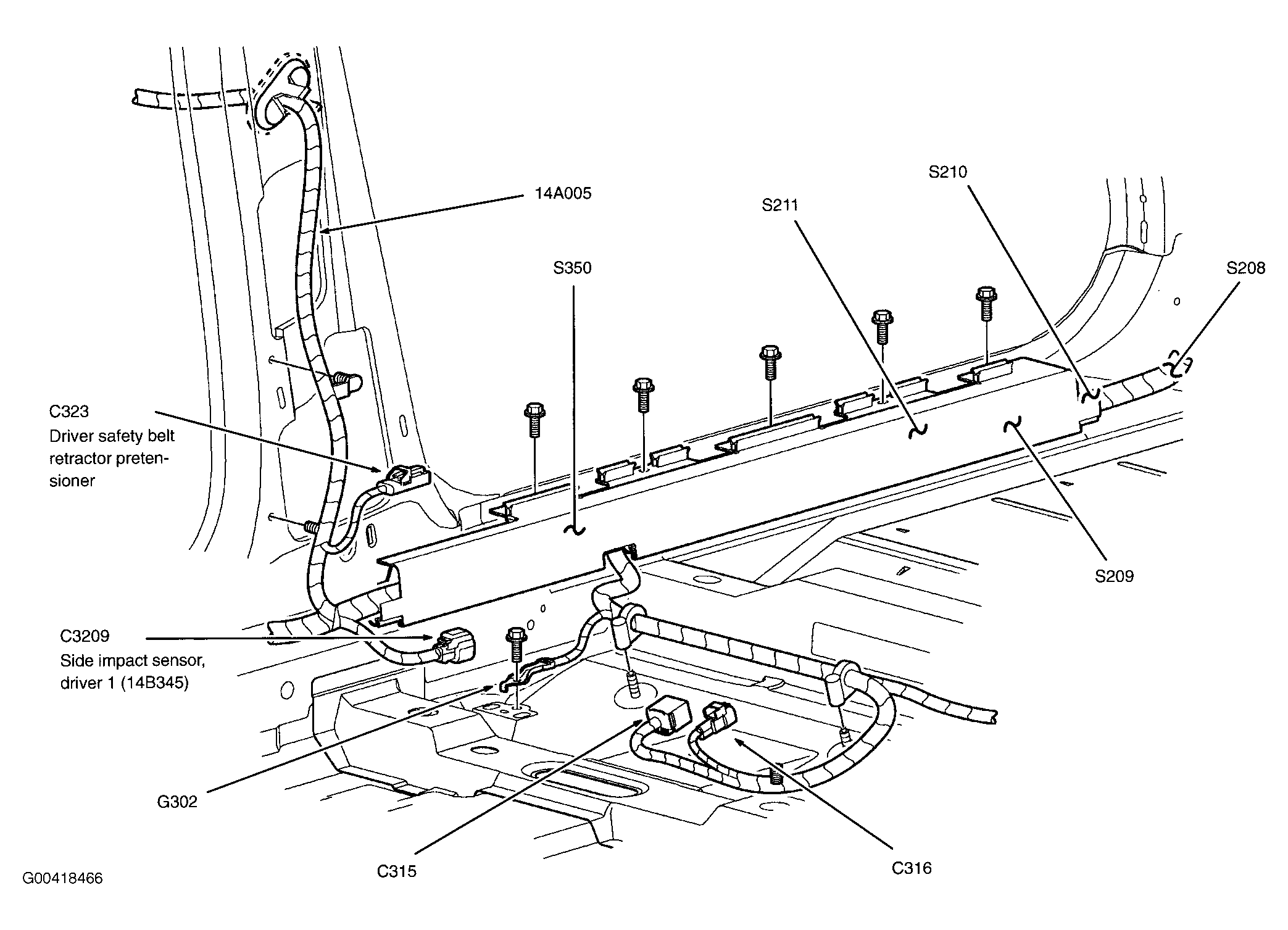

Fig 35: Left Front Side Of Floor
Courtesy of FORD MOTOR CO.

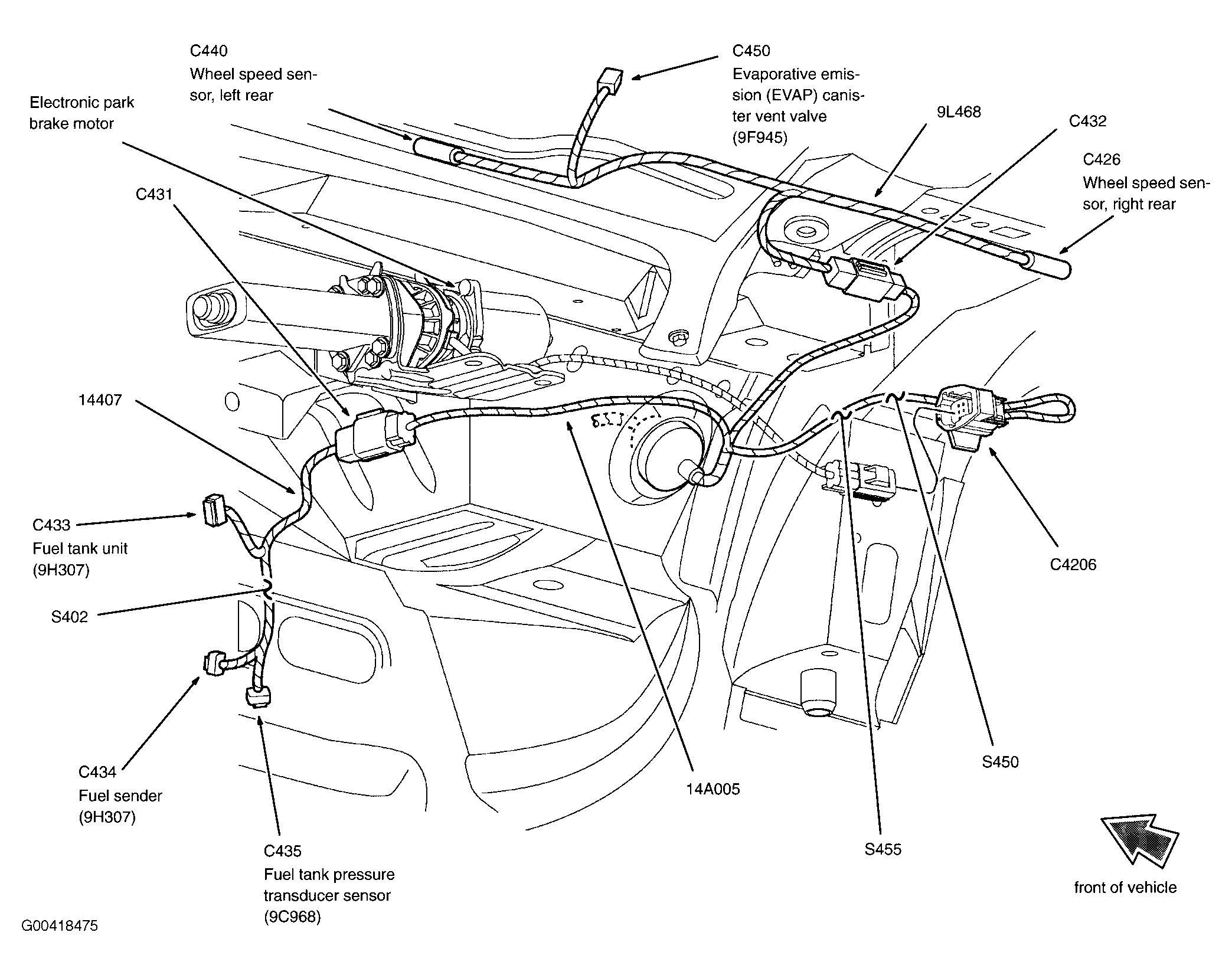

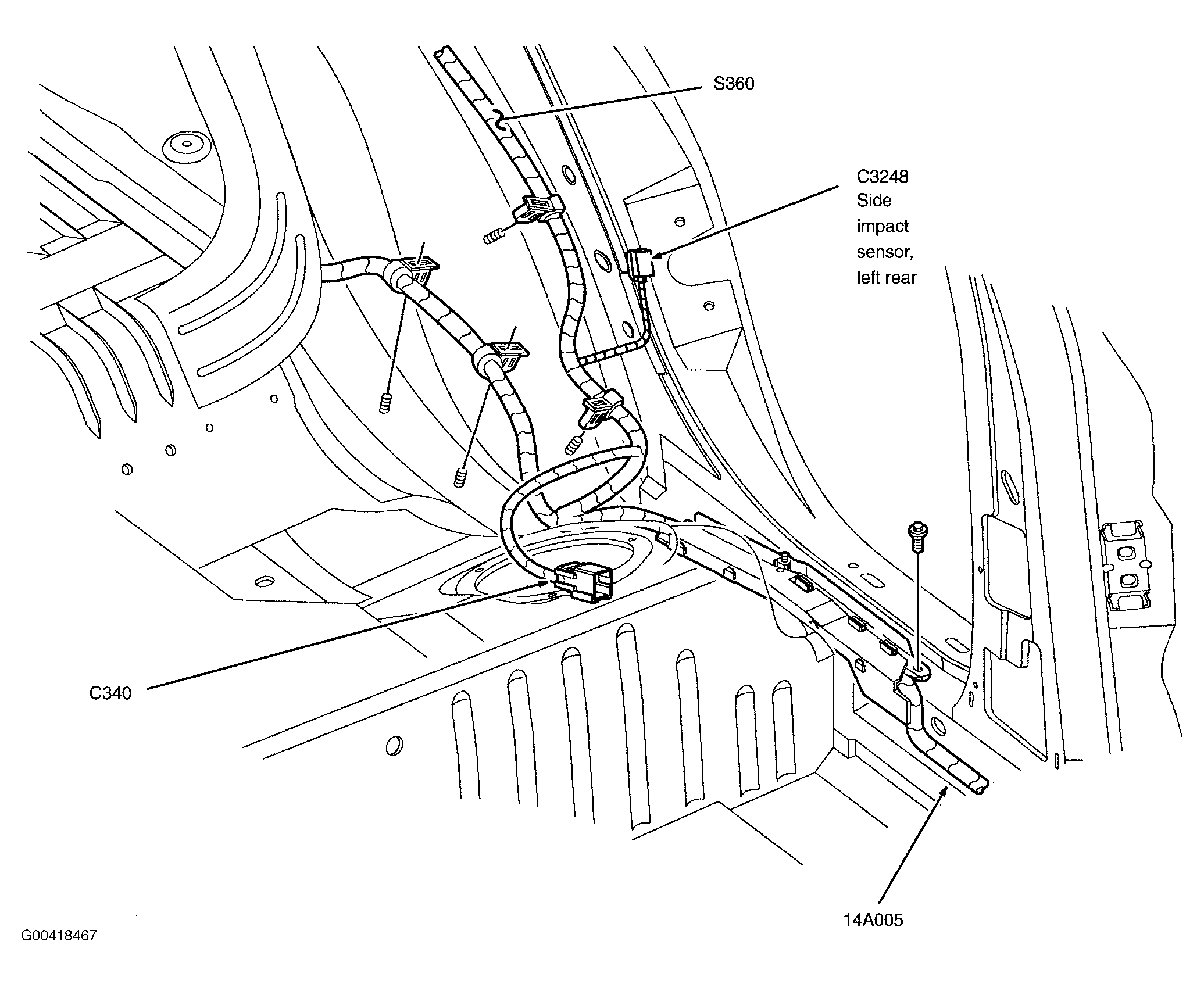

Fig 36: Left Rear Of Floor
Courtesy of FORD MOTOR CO.

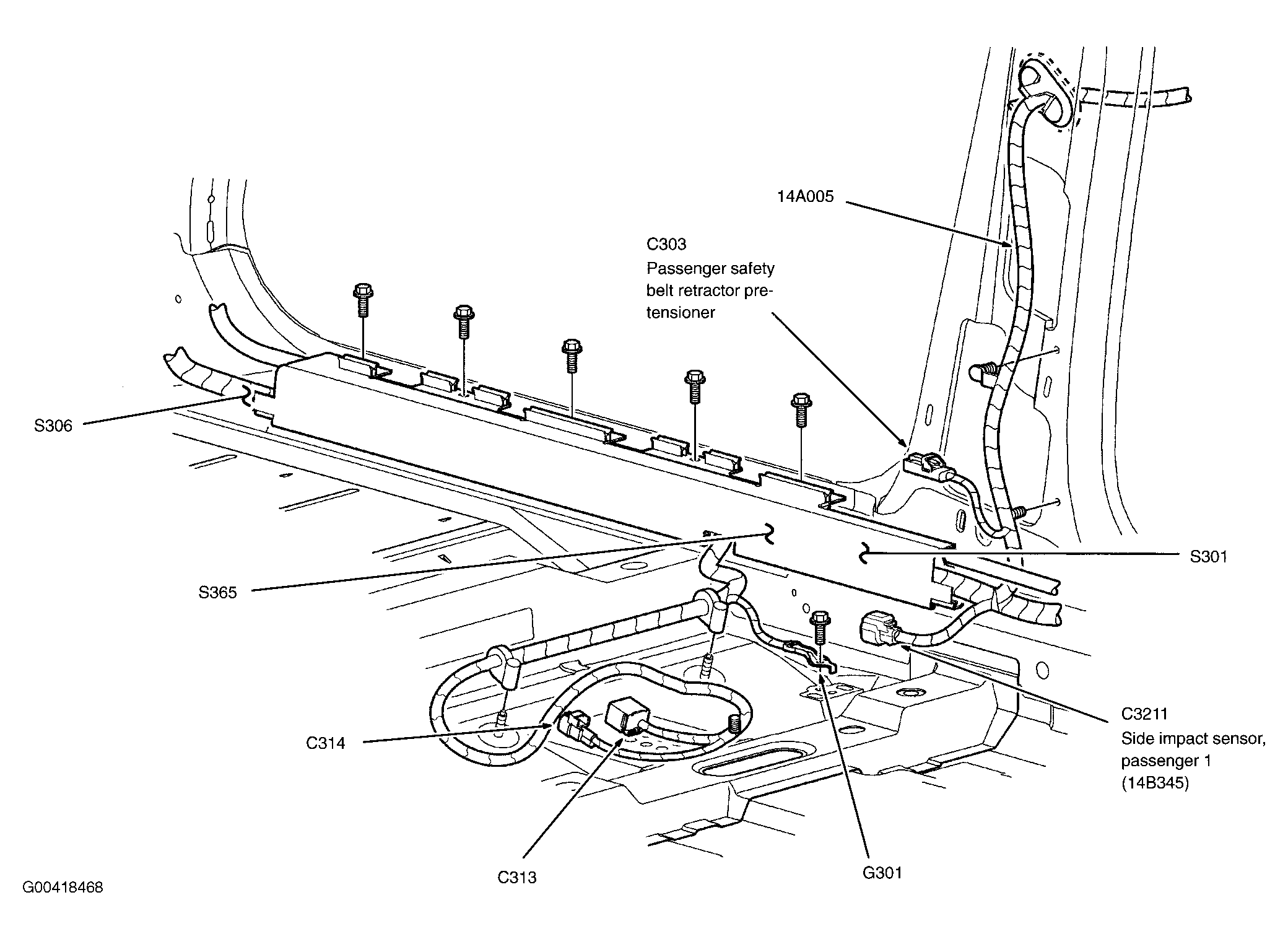

Fig 37: Right Front Side Of Floor
Courtesy of FORD MOTOR CO.

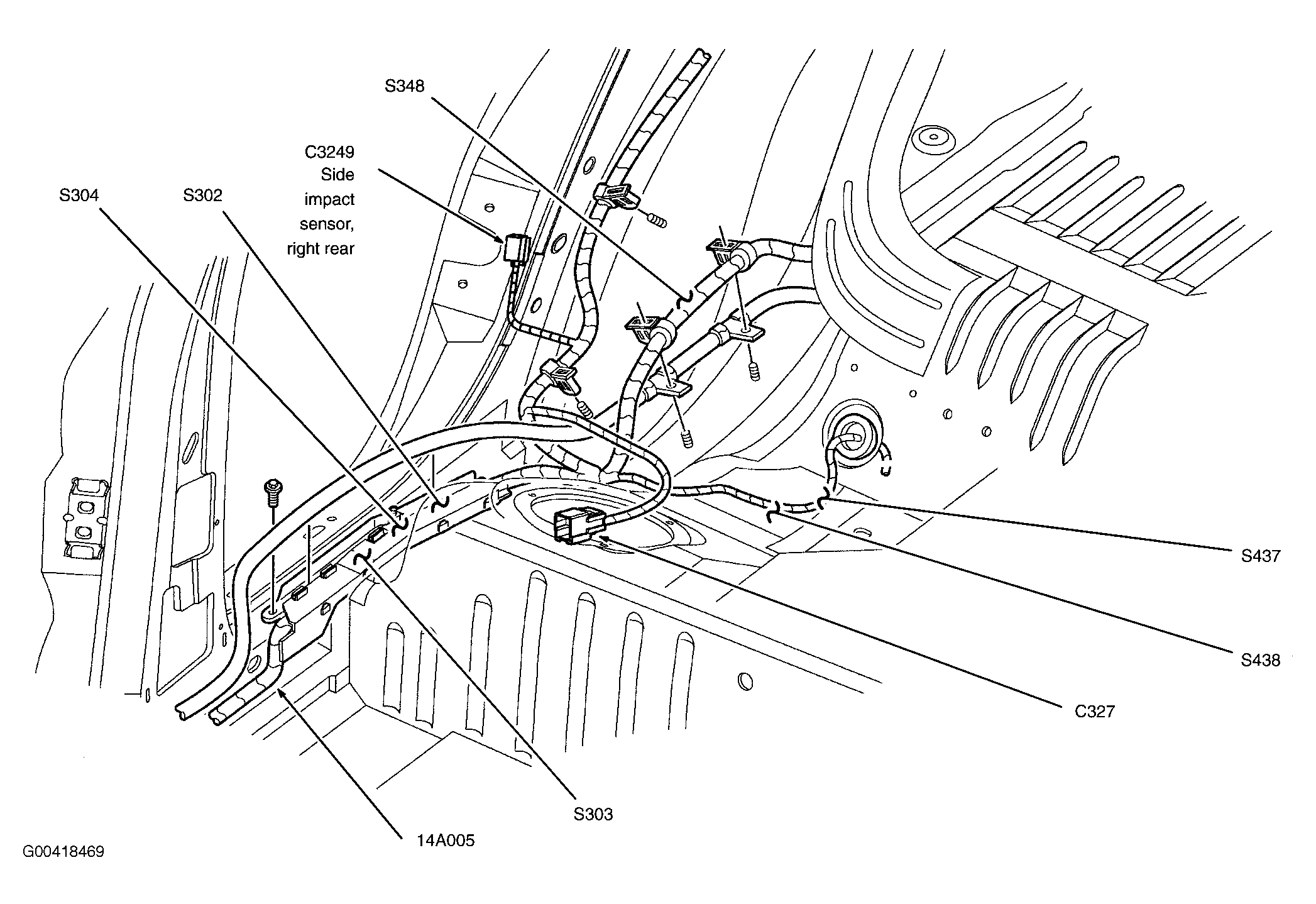

Fig 38: Right Rear Of Floor
Courtesy of FORD MOTOR CO.
Fig 39: Left Front Door
Courtesy of FORD MOTOR CO.

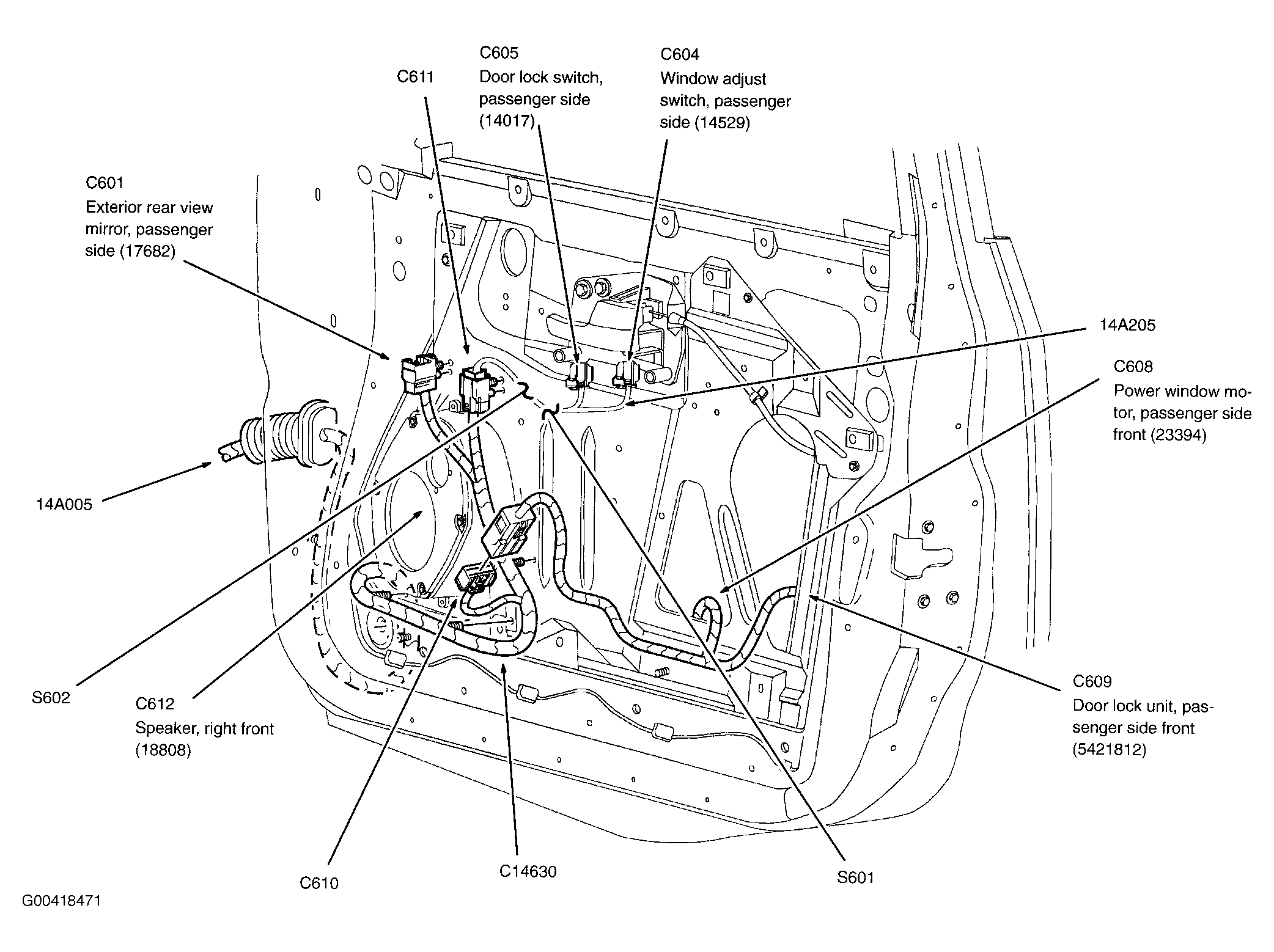

Fig 40: Right Front Door
Courtesy of FORD MOTOR CO.

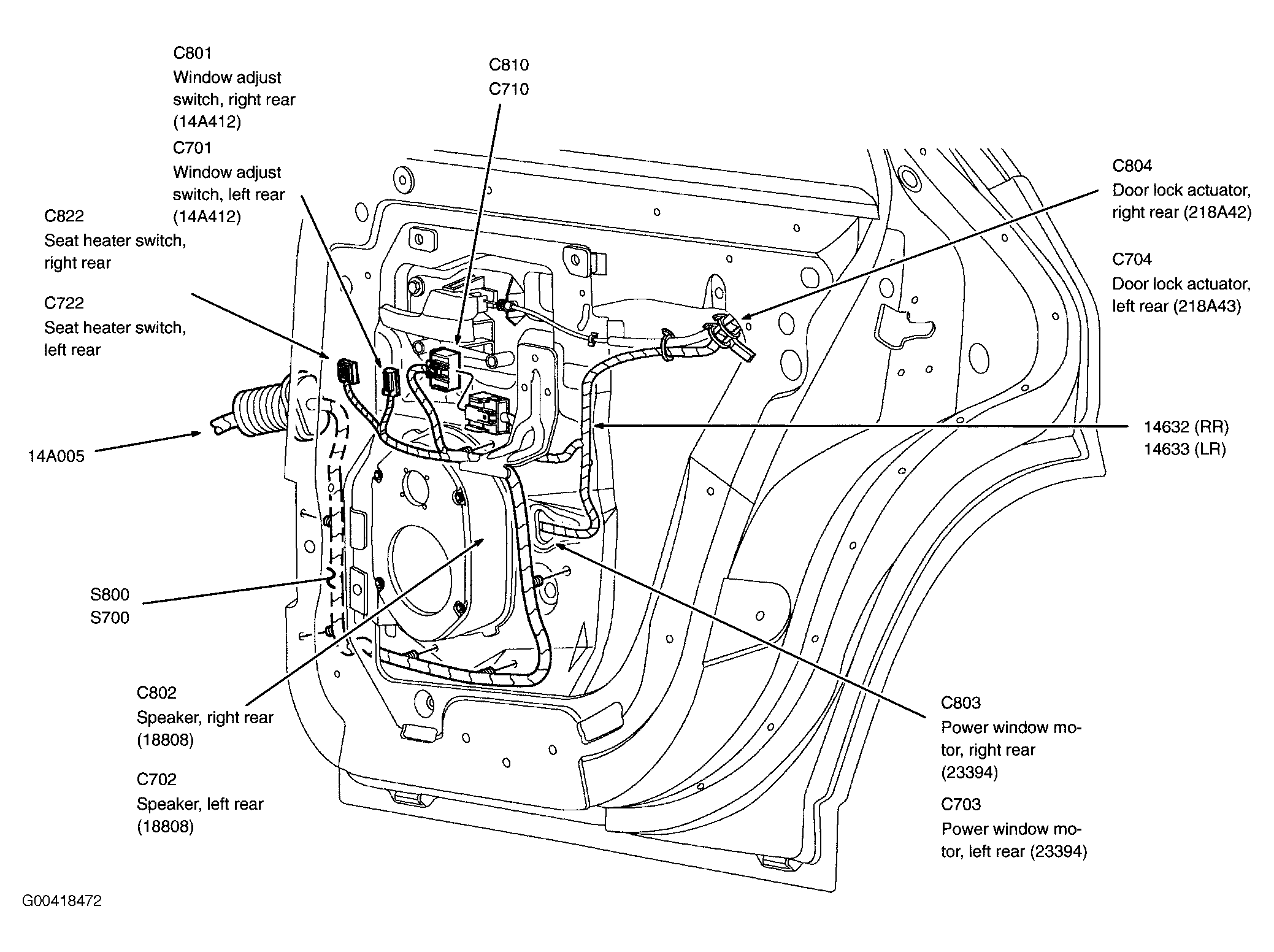

Fig 41: Right Rear Door (Left Side Similar)
Courtesy of FORD MOTOR CO.

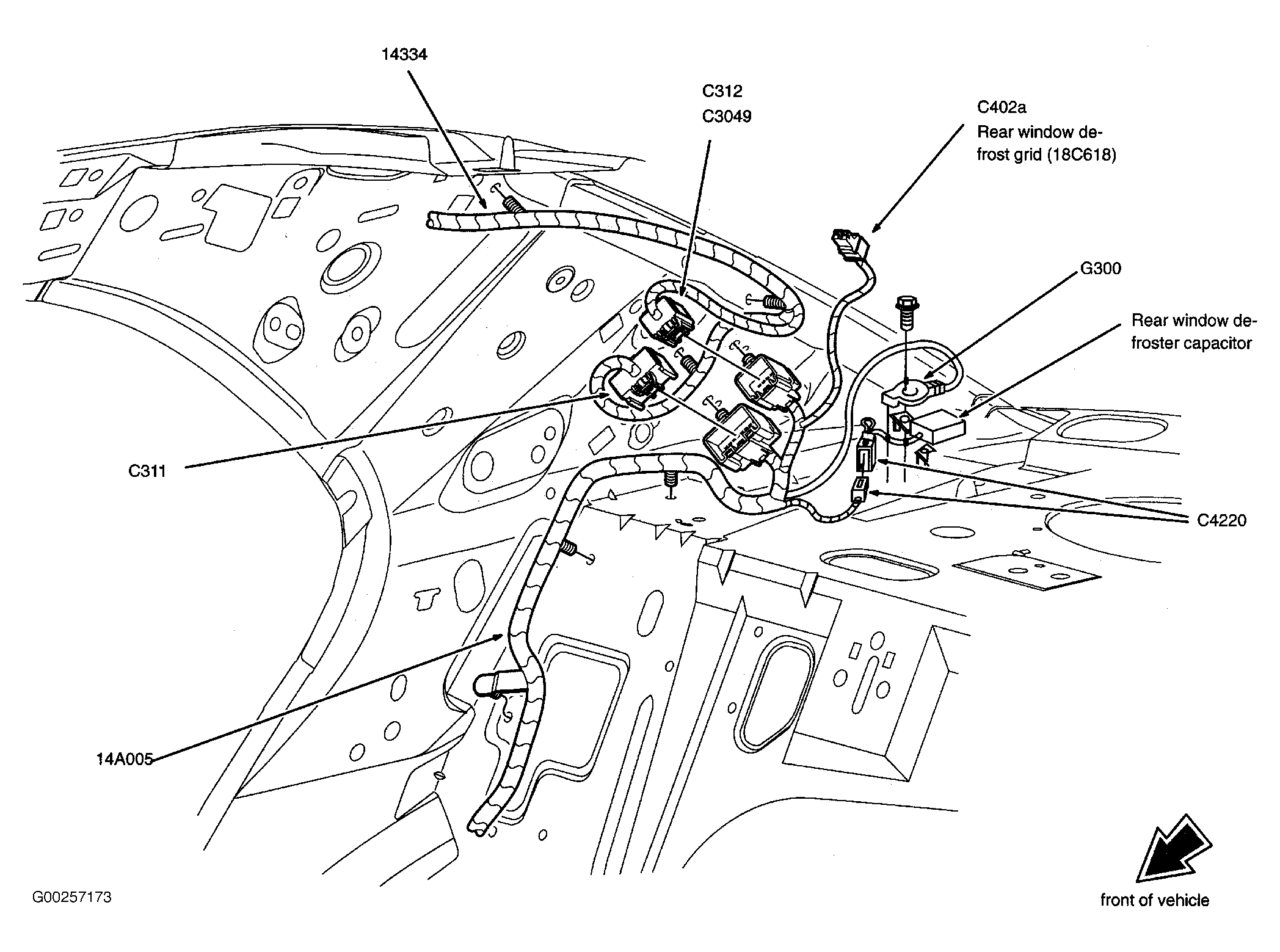

Fig 42: Package Tray
Courtesy of FORD MOTOR CO.
Fig 43: Right Side Of Package Tray
Courtesy of FORD MOTOR CO.
Fig 44: Left Side Of Package Tray
Courtesy of FORD MOTOR CO.
Fig 45: Center Rear Of Roof
Courtesy of FORD MOTOR CO.
Fig 46: Roof
Courtesy of FORD MOTOR CO.
Fig 47: Below Rear Seats
Courtesy of FORD MOTOR CO.
Fig 48: Left Side Of Luggage Compartment
Courtesy of FORD MOTOR CO.

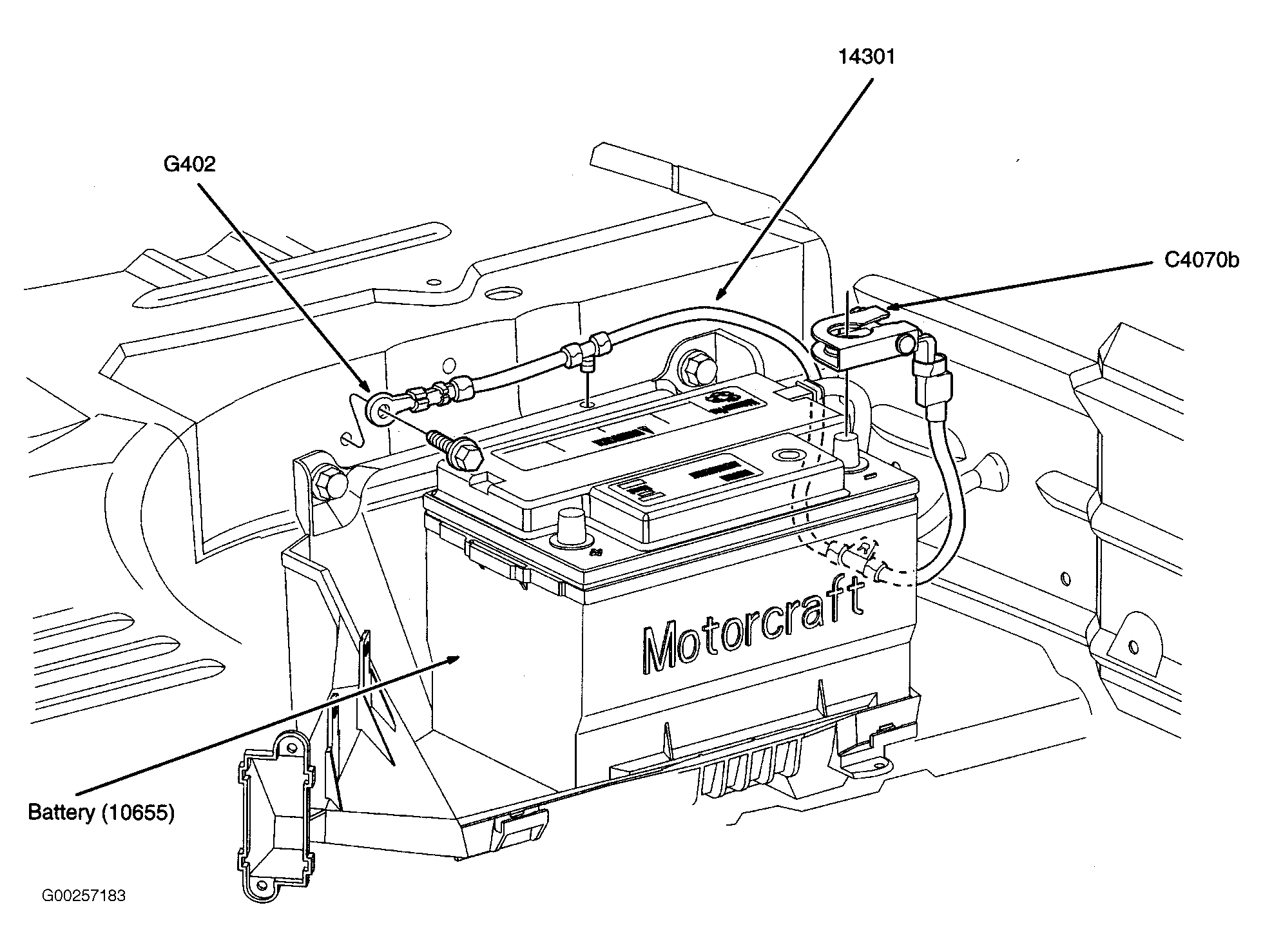

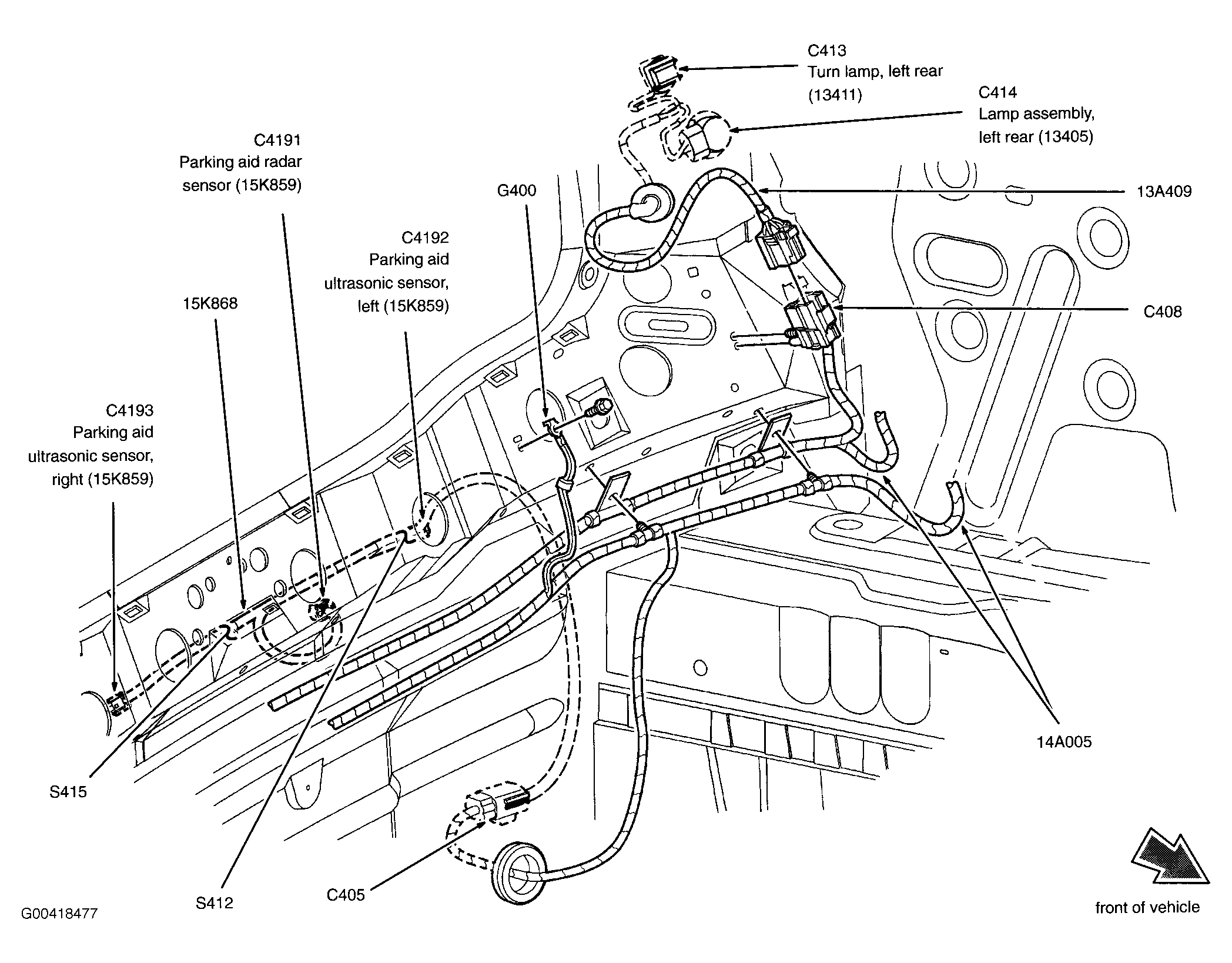

Fig 49: Left Rear Side Of Luggage Compartment
Courtesy of FORD MOTOR CO.
Fig 50: Right Side Of Luggage Compartment
Courtesy of FORD MOTOR CO.

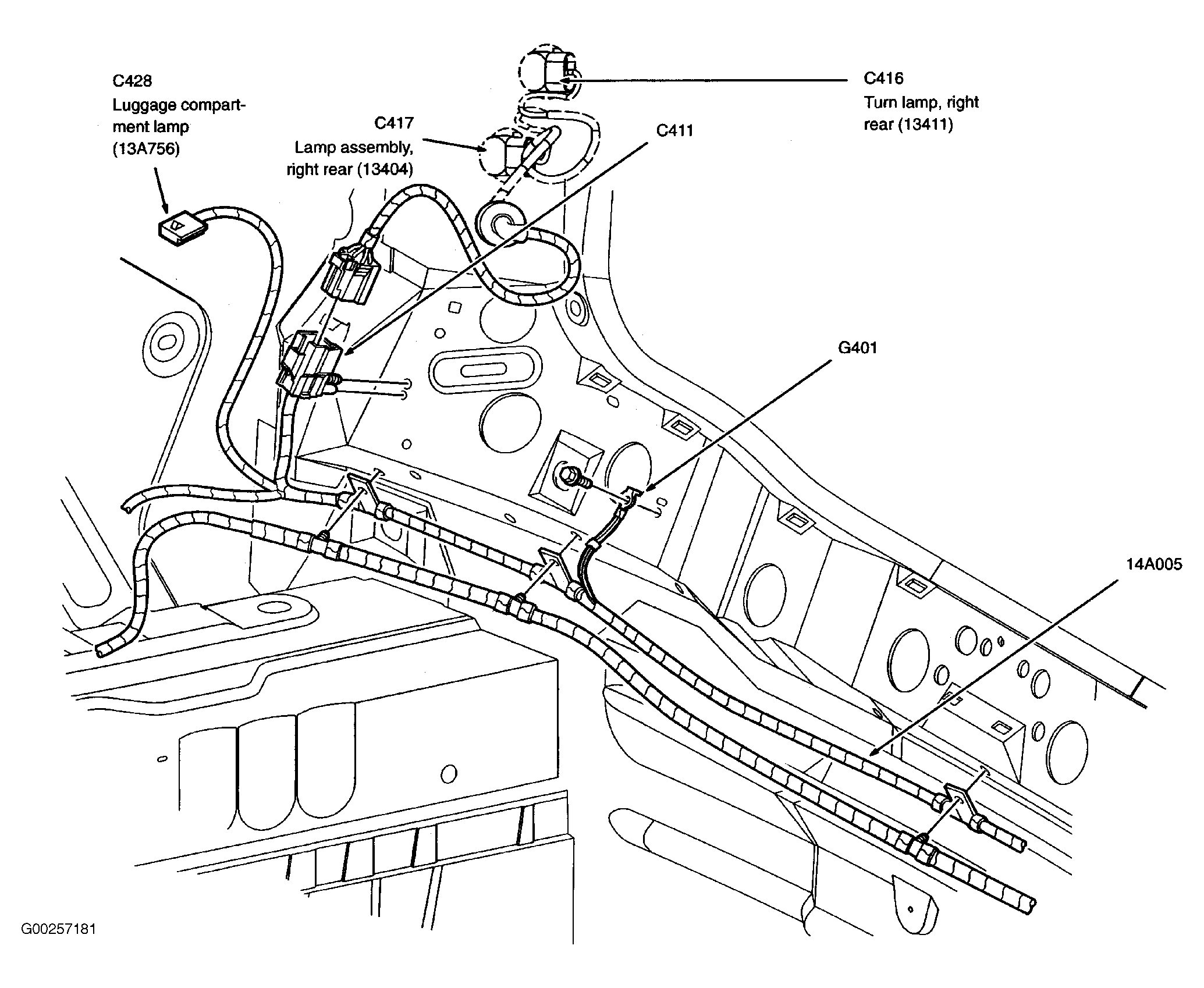

Fig 51: Right Rear Side Of Luggage Compartment
Courtesy of FORD MOTOR CO.
Fig 52: Right Rear Of Luggage Compartment
Courtesy of FORD MOTOR CO.
Fig 53: Right Rear Of Luggage Compartment
Courtesy of FORD MOTOR CO.

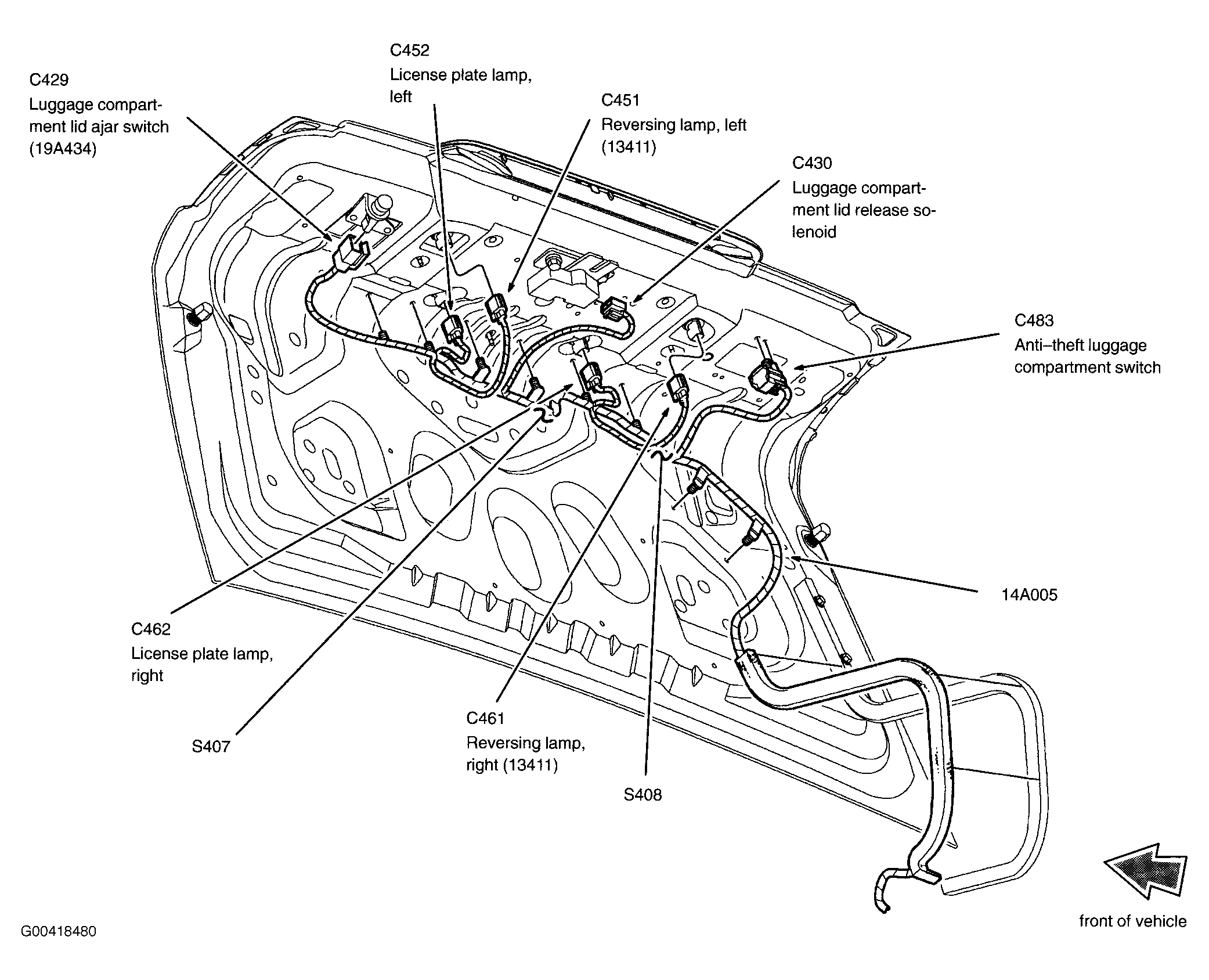

Fig 54: Decklid
Courtesy of FORD MOTOR CO.
Fig 55: Rear Seats
Courtesy of FORD MOTOR CO.

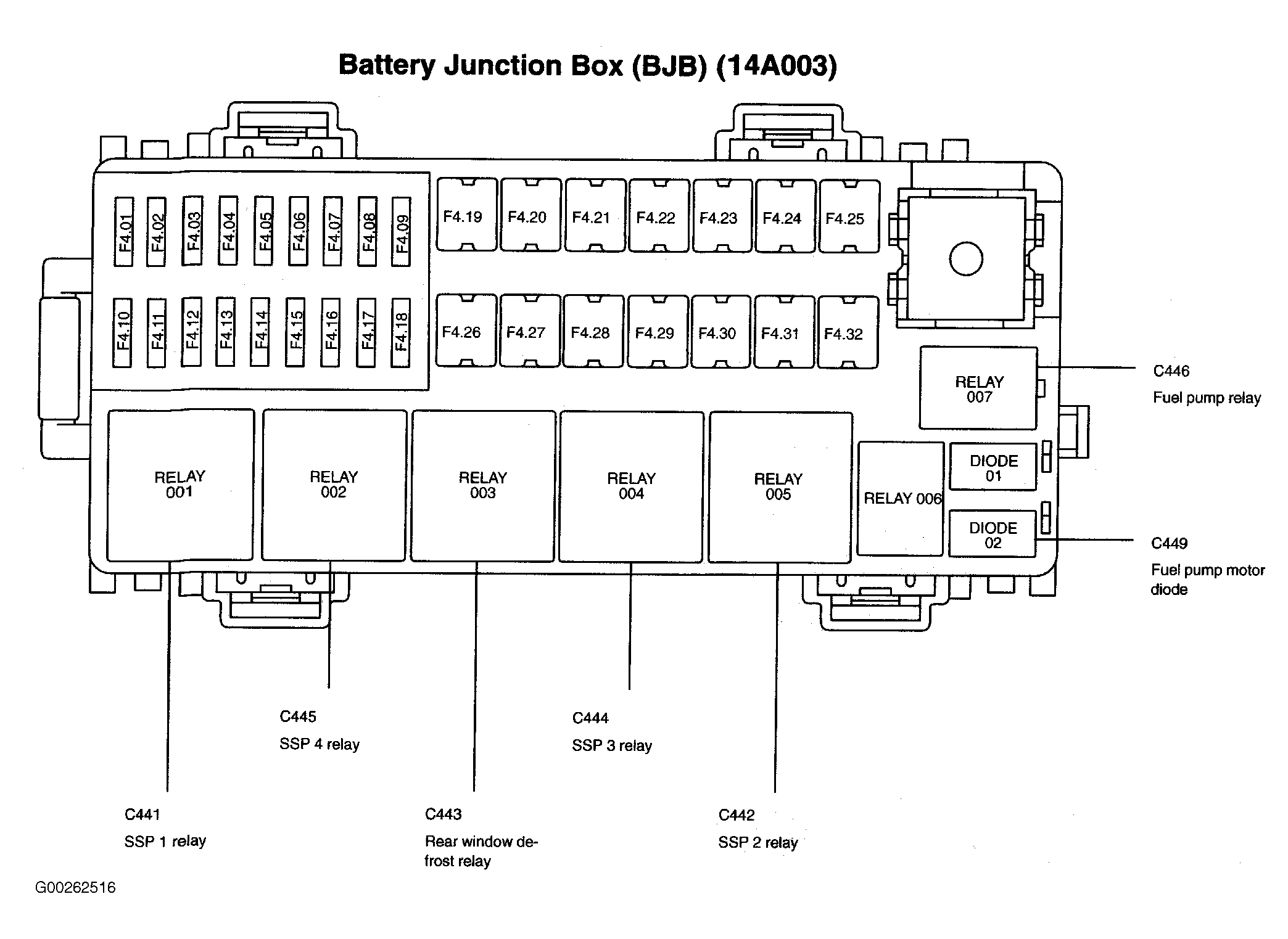

Fig 56: Battery Junction Box (BJB)
Courtesy of FORD MOTOR CO.

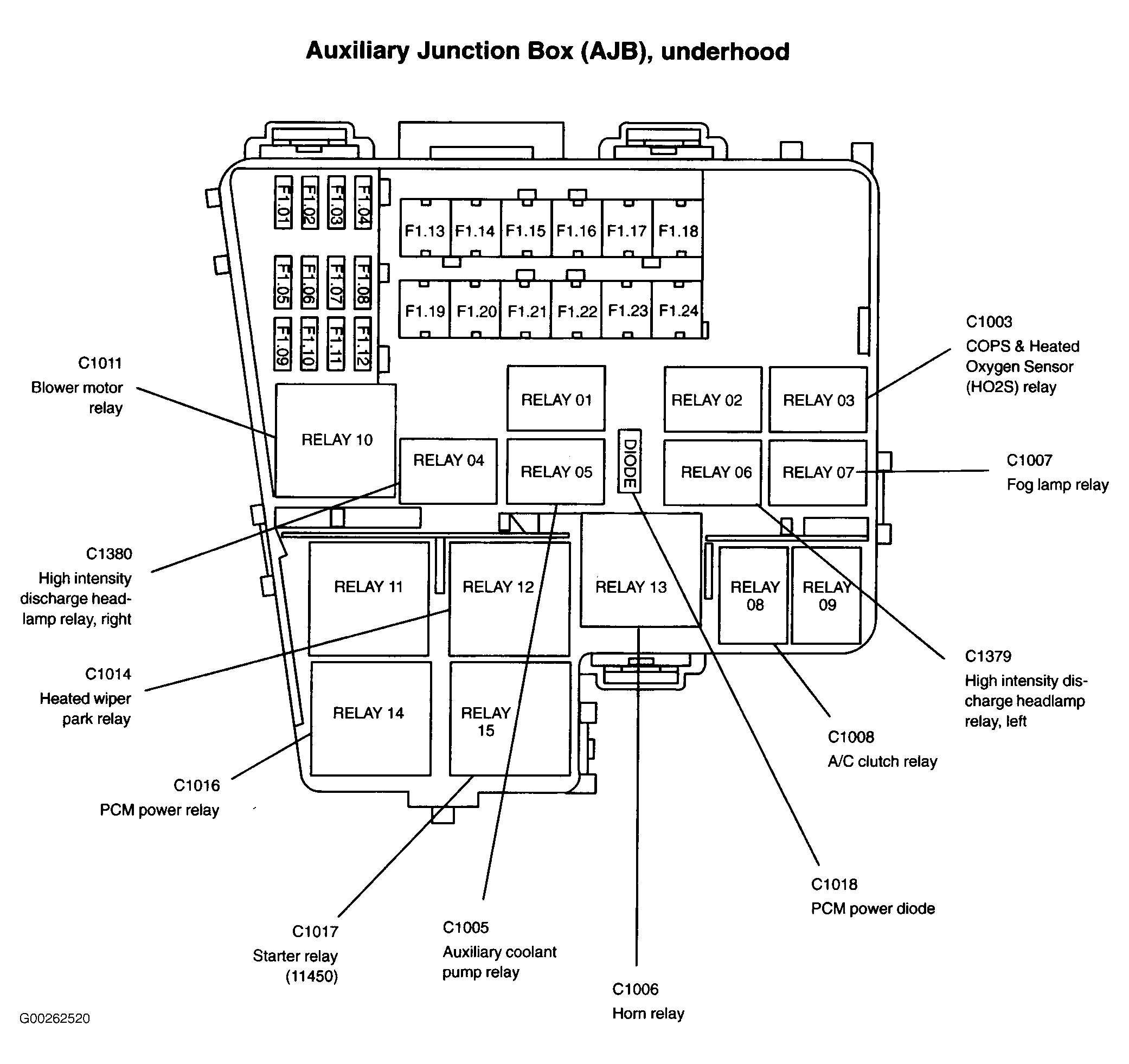

Fig 57: Auxiliary Junction Box (AJB) (Underhood)
Courtesy of FORD MOTOR CO.
