Exhaust System - Exploded View

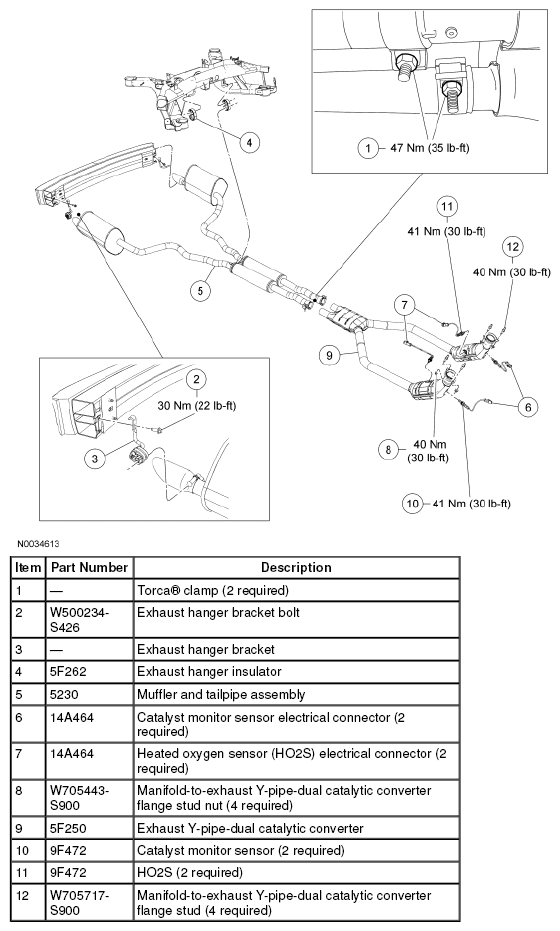

Fig 1: Exploded View Of Exhaust System With Torque Specifications
G04691814Courtesy of FORD MOTOR CO.
  1. For additional information, refer to appropriate procedure.
