Cylinder Head: Notes

SPECIAL TOOL(S)

G04690661Courtesy of FORD MOTOR CO.
 Compressor, Valve Spring
303-648
MATERIAL SPECIFICATION

Item Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (in Canada Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20- LSP12) or equivalent WSS-M2C930-A

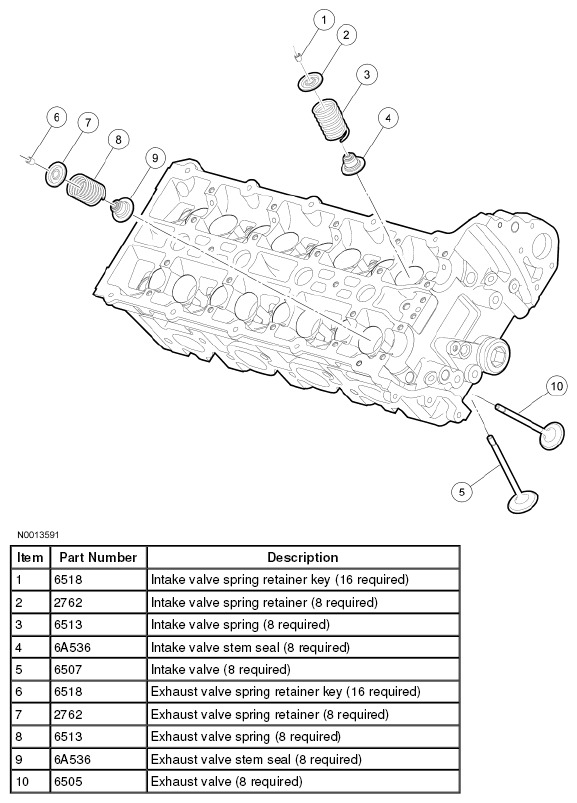

Fig 1: Identifying Cylinder Head Components
G04690662Courtesy of FORD MOTOR CO.
