Engine Front Cover: Notes

MATERIAL SPECIFICATION

Item Specification
Motorcraft Metal Surface Cleaner ZC-21 WSE-M5B392-A
Silicone Gasket and Sealant TA-30 WSE-M4G323-A4
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (in Canada Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20- LSP12) or equivalent WSS-M2C930-A

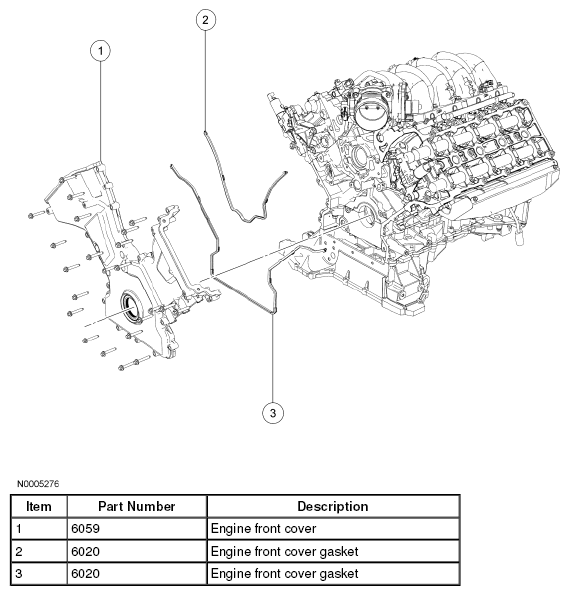

Fig 1: Identifying Engine Front Cover Components
G04690294Courtesy of FORD MOTOR CO.
