Engine Mount: Notes

SPECIAL TOOL(S)

G04690393Courtesy of FORD MOTOR CO.
 Lifting Bracket, Engine
303-050 (T70P-6000)
G04690394Courtesy of FORD MOTOR CO.
 Three-Bar Engine Support Kit
303-F072

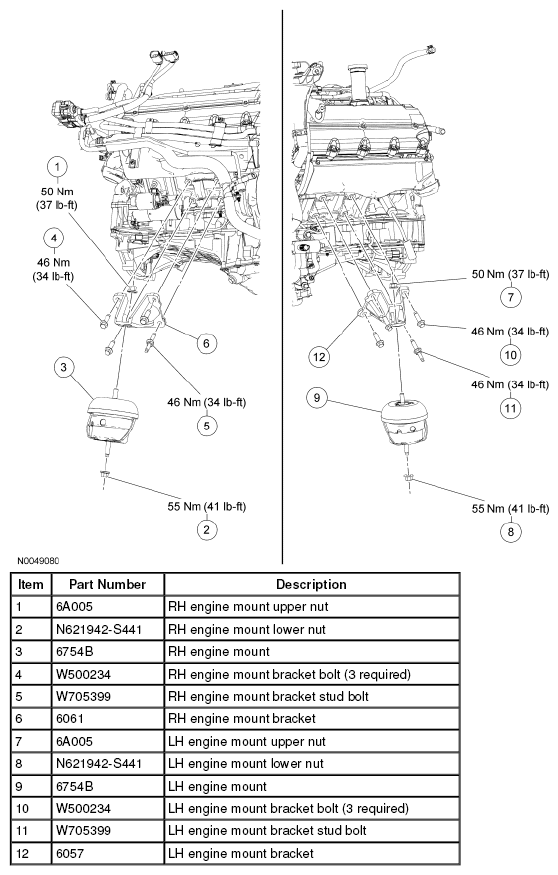

Fig 1: Exploded View Of Engine Mount With Torque Specifications
G04690395Courtesy of FORD MOTOR CO.
