Intake Manifold: Notes

MATERIAL SPECIFICATION

Item	Specification
Motorcraft Metal Surface Cleaner ZC-21	WSE-M5B392-A

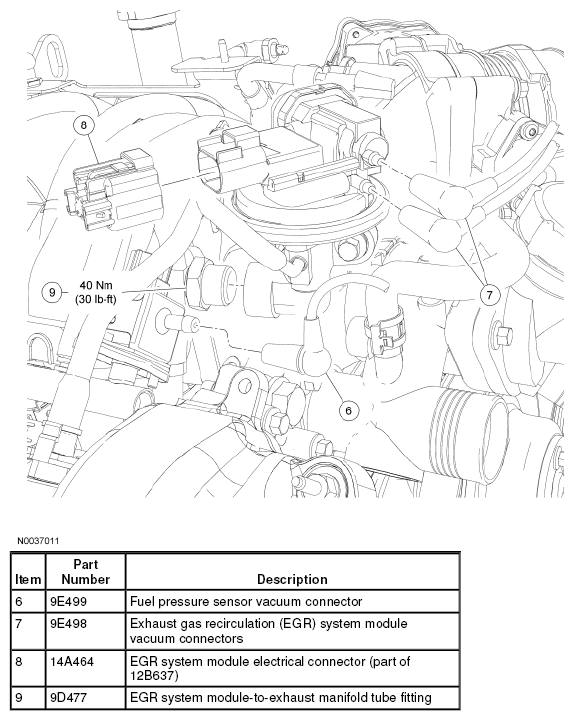

Fig 1: Identifying Intake Manifold Components (1 Of 4)

Courtesy of FORD MOTOR CO.

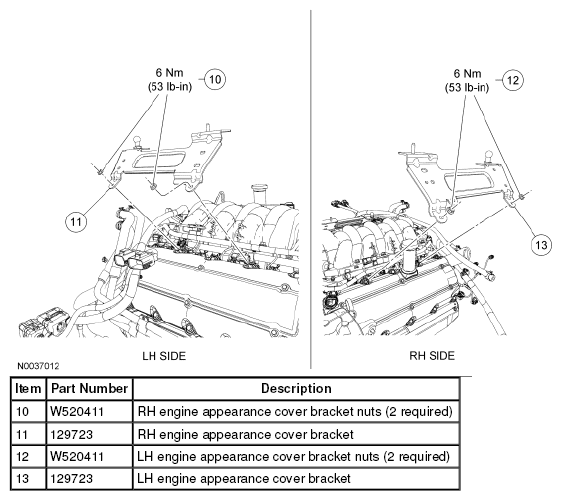

Fig 2: Intake Manifold Replacement Components With Torque Specifications (2 Of 4)

Courtesy of FORD MOTOR CO.

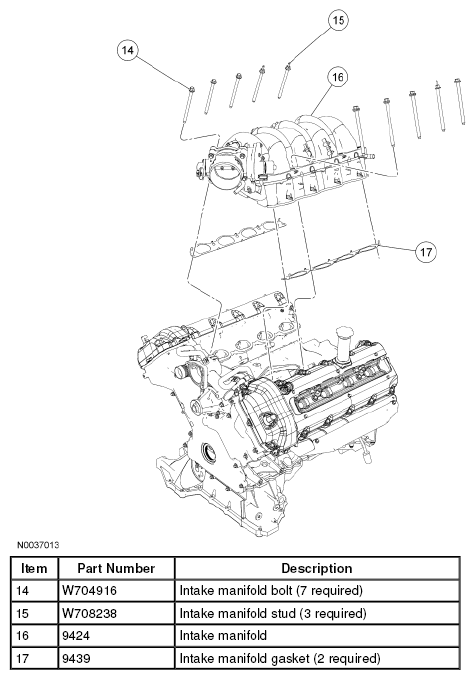

Fig 3: Intake Manifold Replacement Components With Torque Specifications (3 Of 4)

Courtesy of FORD MOTOR CO.

Fig 4: Identifying Intake Manifold Components (4 Of 4)

Courtesy of FORD MOTOR CO.
