Timing Drive Components: Installation

  1. Install the LH secondary timing chain tensioner and 2 bolts.
    • Tighten to 11 Nm (8 lb-ft).
  2. Install the LH VCT unit, exhaust camshaft sprocket and timing chain as an assembly.
    Fig 1: Locating LH VCT Unit, Exhaust Camshaft Sprocket And Timing Chain
    G04690335Courtesy of FORD MOTOR CO.
  3. Using new bolts, install the LH VCT unit and exhaust camshaft sprocket bolts finger-tight.
    Fig 2: Locating RH VCT Unit, Exhaust Camshaft Sprocket And Timing Chain Bolts
    G04690336Courtesy of FORD MOTOR CO.
  4. Remove the locking pin from the LH secondary timing chain tensioner.
    Fig 3: Removing Locking Pin
    G04690337Courtesy of FORD MOTOR CO.
  5. Install the RH secondary timing chain tensioner and 2 bolts.
    • Tighten to 11 Nm (8 lb-ft).
  6. Install the RH VCT unit, exhaust camshaft sprocket and timing chain as an assembly.
    Fig 4: Locating RH VCT Unit, Exhaust Camshaft Sprocket And Timing Chain
    G04690338Courtesy of FORD MOTOR CO.
  7. Using new bolts, install the RH VCT unit and exhaust camshaft sprocket bolts finger-tight.
    Fig 5: Locating Exhaust Camshaft Sprocket Bolts
    G04690339Courtesy of FORD MOTOR CO.
  8. Remove the locking pin from the RH secondary timing chain tensioner.
    Fig 6: Locating Locking Pin
    G04690340Courtesy of FORD MOTOR CO.
  9. Reset the timing chain tensioners.
    1. Hold the lever toward the tensioner piston.
    2. Using finger pressure, compress the tensioner until it is completely collapsed.
    3. Push the lever down and install a drill rod to lock the piston.
      Fig 7: Resetting Timing Chain Tensioners
      G04690341Courtesy of FORD MOTOR CO.
  10. CAUTION: The camshaft holding tool should still be installed on the LH cylinder head. If the special tool was removed during camshaft removal, it must be reinstalled at this time.
    CAUTION: The flats on the camshaft must completely contact the special service tool or damage to the camshafts can occur. Slowly draw the special tool down evenly until it is fully seated on the camshaft flats.
    Fig 8: Identifying Special Tool On LH Cylinder Head
    G04690342Courtesy of FORD MOTOR CO.
  11. Install the special tool on the LH cylinder head.
  12. Position the LH timing chain and crankshaft gear.
    • Position the timing chain over the LH intake camshaft sprocket.
    • Position the crankshaft gear in the timing chain.
      Fig 9: Locating LH Timing Chain
      G04690343Courtesy of FORD MOTOR CO.
  13. Install the LH timing chain guide and bolt.
    • Tighten to 11 Nm (8 lb-ft).
      Fig 10: Locating LH Timing Chain Guide And Bolt
      G04690344Courtesy of FORD MOTOR CO.
  14. Install the LH timing chain tensioner arm and nut.
    • Tighten to 11 Nm (8 lb-ft).
      Fig 11: Locating LH Timing Chain Tensioner Arm And Nut
      G04690345Courtesy of FORD MOTOR CO.
  15. Install the LH timing chain tensioner and 2 bolts.
    • Tighten to 11 Nm (8 lb-ft).
    • Remove the drill rod.
      Fig 12: Locating Timing Chain Tensioner And Bolts
      G04690346Courtesy of FORD MOTOR CO.
  16. CAUTION: The exhaust camshaft sprocket bolt must be fully tightened before tightening the intake camshaft sprocket bolt.
    CAUTION: Using the special tool, apply 10 Nm (89 lb-in) counterclockwise to the LH exhaust camshaft sprocket.
  17. Tighten the LH exhaust camshaft sprocket and VCT unit bolts in 2 stages:
    • Stage 1: Tighten to 35 Nm (26 lb-ft).
    • Stage 2: Tighten an additional 90 degrees.
      Fig 13: Locating Special Tool, Exhaust Camshaft Sprocket And VCT Unit Bolts
      G04690347Courtesy of FORD MOTOR CO.
  18. Remove the special tool.
    Fig 14: Identifying Special Tool
    G04690348Courtesy of FORD MOTOR CO.
  19. CAUTION: The flats on the camshaft must completely contact the special service tool or damage to the camshafts can occur. Slowly draw the special tool down evenly until it is fully seated on the camshaft flats.
    Fig 15: Identifying Special Tool
    G04690349Courtesy of FORD MOTOR CO.
  20. Install the special tool on the RH cylinder head.
  21. Position the RH timing chain over the RH intake camshaft sprocket and over the crankshaft gear.
    Fig 16: Locating RH Primary Timing Chain
    G04690350Courtesy of FORD MOTOR CO.
  22. Install the RH timing chain guide and bolt.
    • Tighten to 11 Nm (8 lb-ft).
      Fig 17: Locating RH Timing Chain Guide And Bolt
      G04690351Courtesy of FORD MOTOR CO.
  23. Install the RH timing chain tensioner arm.
    • Tighten to 11 Nm (8 lb-ft).
      Fig 18: Locating RH Timing Chain Tensioner Arm And Bolt
      G04690352Courtesy of FORD MOTOR CO.
  24. Install the RH timing chain tensioner and 2 bolts.
    • Tighten to 11 Nm (8 lb-ft).
    • Remove the drill rod.
      Fig 19: Locating Timing Chain Tensioner And Bolts
      G04690353Courtesy of FORD MOTOR CO.
  25. CAUTION: The exhaust camshaft sprocket bolt must be fully tightened before tightening the intake camshaft sprocket bolt.
    CAUTION: Using the special tool, apply 10 Nm (89 lb-in) counterclockwise to the RH exhaust camshaft sprocket.
  26. Tighten the RH exhaust camshaft sprocket and VCT unit bolts in 2 stages:
    • Stage 1: Tighten to 35 Nm (26 lb-ft).
    • Stage 2: Tighten an additional 90 degrees.
      Fig 20: Locating Special Tool, RH Exhaust Camshaft Sprocket And VCT Unit Bolts
      G04690354Courtesy of FORD MOTOR CO.
  27. Remove the special tool.
    Fig 21: Identifying Special Tool
    G04690355Courtesy of FORD MOTOR CO.
  28. NOTE: Lubricate the VCT bush carrier seals with clean engine oil.
  29. Carefully insert the bush carrier into the VCT unit, compress ring seals with fingers as required. Fully seat the bush carrier by hand before fitting the bolts and nut.
    • Tighten the bolts to 20 Nm (15 lb-ft).
    • Tighten the nut to 10 Nm (89 lb-in).

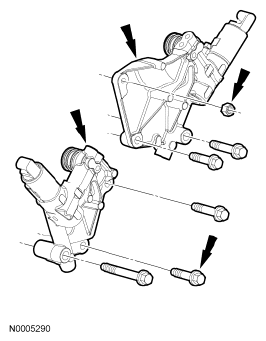

      Fig 22: Identifying Variable Cam Timing Bush Carriers, Bolts & Nuts
      G04690356Courtesy of FORD MOTOR CO.
  30. Remove the special tool.
    Fig 23: Identifying Special Tool
    G04690357Courtesy of FORD MOTOR CO.
  31. Install the CKP sensor and the torque converter cover.
    • Tighten to 10 Nm (89 lb-in).
      Fig 24: Locating Crankshaft Position (CKP) Sensor
      G04690358Courtesy of FORD MOTOR CO.
  32. Install the engine front cover. For additional information, refer to ENGINE FRONT COVER .
  33. Connect the battery ground cable. For additional information, refer to BATTERY MOUNTING AND CABLES .
