Valve Cover - LH: Notes

MATERIAL SPECIFICATION

Item Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (in Canada Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12) or equivalent WSS-M2C930-A
Silicone Gasket Remover ZC-30 -
Motorcraft Metal Surface Prep ZC-31 -
Silicone Gasket and Sealant TA-30 WSEM4G323-A4

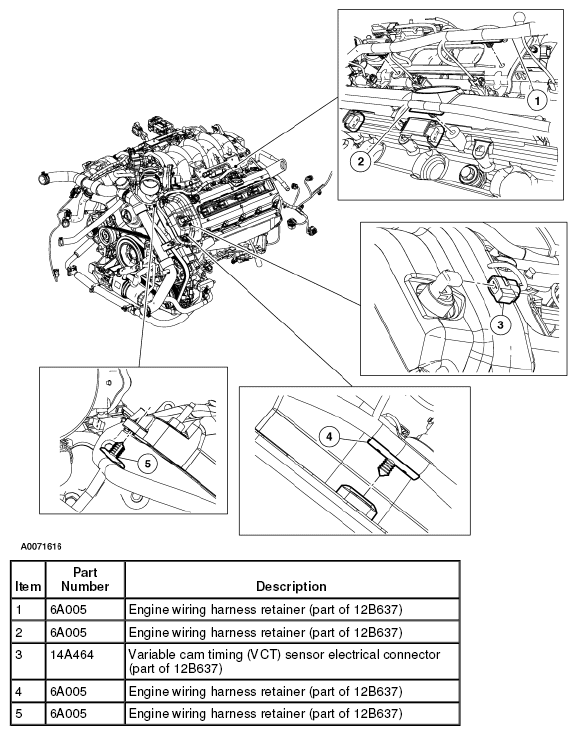

Fig 1: Identifying Valve Cover Components - LH (1 Of 4)
G04690251Courtesy of FORD MOTOR CO.
Fig 2: Valve Cover Replacement Components With Torque Specifications -- LH (2 Of 4)
G04690252Courtesy of FORD MOTOR CO.
Fig 3: Valve Cover Replacement Components With Torque Specifications -- LH (3 Of 4)
G04690253Courtesy of FORD MOTOR CO.
Fig 4: Identifying Valve Cover Components - LH (4 Of 4)
G04690254Courtesy of FORD MOTOR CO.
