Engine Ignition Components - Exploded View

NOTE: RH shown, LH similar.

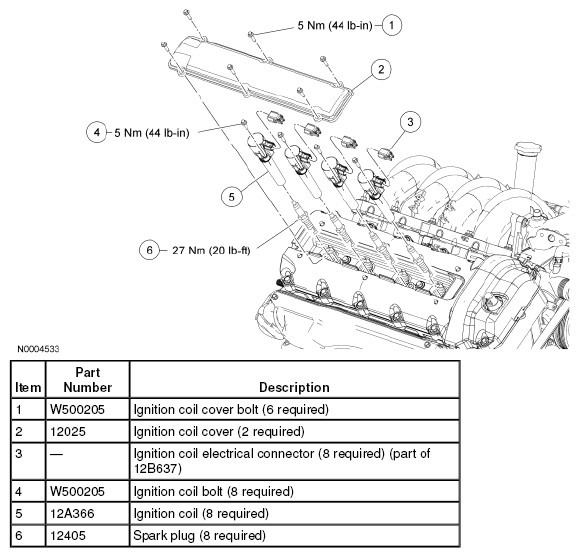

Fig 1: Exploded View Of Engine Ignition Components With Torque Specifications
G04691036Courtesy of FORD MOTOR CO.
  1. For additional information, refer to appropriate procedure.
