Throttle Body: Notes

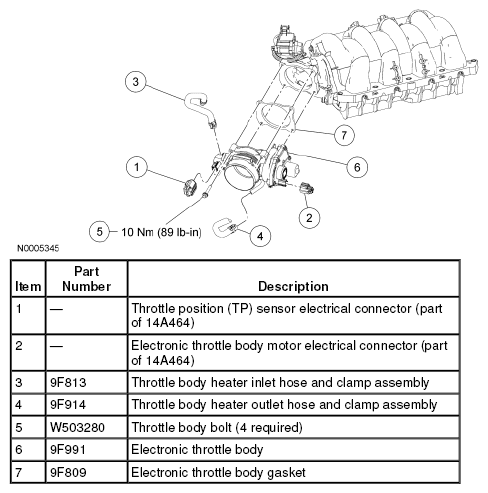

Fig 1: Throttle Body Replacement Components With Torque Specifications
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
