Knock Sensor (KS): Notes

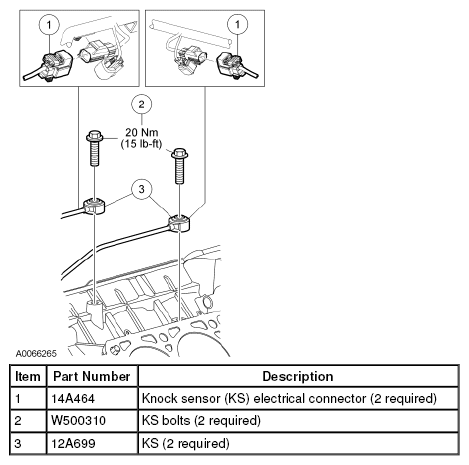

Fig 1: Knock Sensor (KS) Replacement Components With Torque Specifications
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
