Variable Camshaft Timing Oil Control Solenoid: Notes

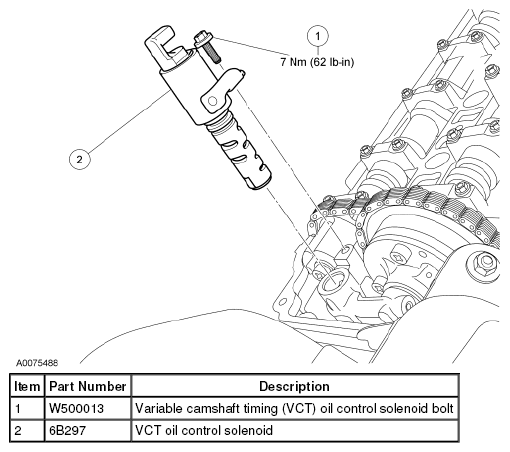

Fig 1: Variable Camshaft Timing Oil Control Solenoid Replacement Components With Torque Specifications
G04691071Courtesy of FORD MOTOR CO.
