Front Safety Belt System

NOTE: Passenger side shown, driver side similar.

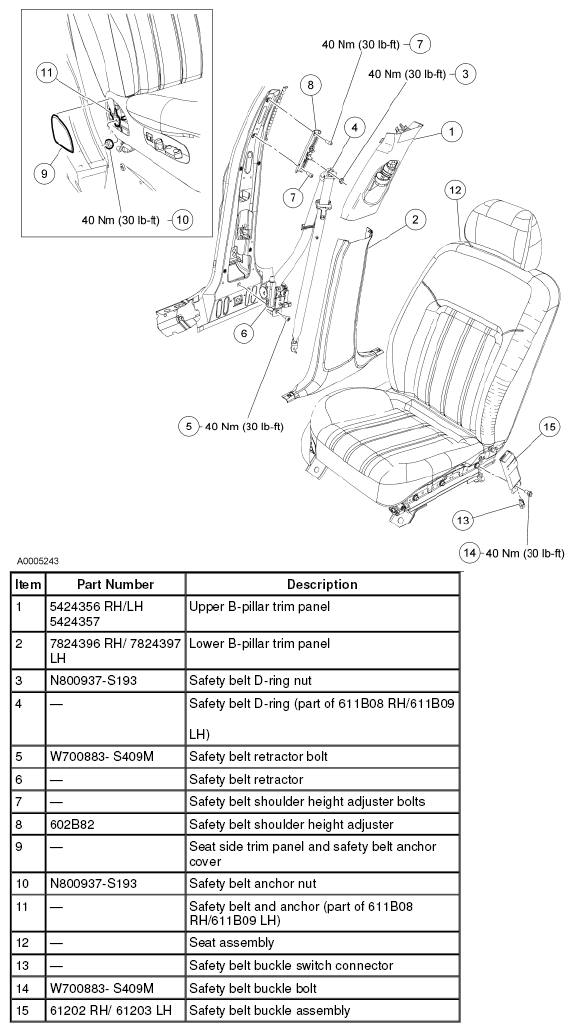

Fig 1: Exploded View Of Front Safety Belt System With Torque Specifications
G04693484Courtesy of FORD MOTOR CO.
  1. For additional information, refer to appropriate procedure.
