Powertrain Control Module (PCM)

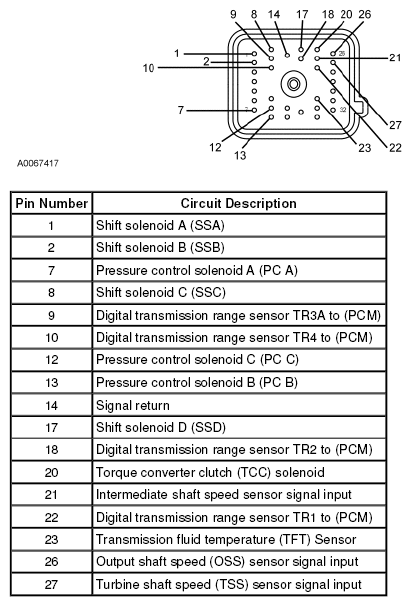

Fig 1: Powertrain Control Module Connector Terminal Identification
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
