Forward Clutch: Disassembly

Remove the pressure plate.
1. Remove the forward clutch retaining ring.
2. Remove the pressure plate.

  Fig 1: Identifying Forward Clutch Retaining Ring And Pressure Plate
  Courtesy of FORD MOTOR CO.
Remove the forward clutch disc pack.
- Inspect the forward clutch plates for wear, damage or overheating.

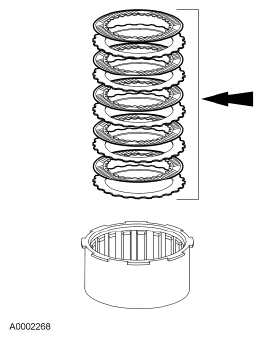

  Fig 2: Locating Forward Clutch Plates
  Courtesy of FORD MOTOR CO.

WARNING: Use caution when releasing tool pressure on the clutch piston springs. Failure to follow these instructions may result in personal injury.

CAUTION: Do not fully depress the special tool or damage to the spring retainer may occur.

Fig 3: Identifying Special Tool (307-015) And Forward Clutch Piston Retaining Ring

Courtesy of FORD MOTOR CO.

Using the special tool, remove the forward clutch piston retaining ring.
Relieve the forward clutch spring tension and remove the tool.
Remove the forward clutch piston spring assembly.

Fig 4: Locating Forward Clutch Piston Spring Assembly
Courtesy of FORD MOTOR CO.

WARNING: Air pressure must not exceed 138 kPa (20 psi). Wear safety glasses when using compressed air. Make sure the cylinder is facing down as shown. Failure to follow these instructions may result in personal injury.

Remove the forward clutch piston.
1. Place the forward clutch cylinder with forward clutch piston facing down.
2. Install the center support on the forward clutch cylinder.
3. Apply air pressure to the left port of the center support.

  Fig 5: Identifying Forward Clutch Piston
  Courtesy of FORD MOTOR CO.
