Main Control Valve Body: Notes

SPECIAL TOOL CHART

Courtesy of FORD MOTOR CO.

Aligner, Valve Body (2 required)
307-334 (T95L-70010-C)

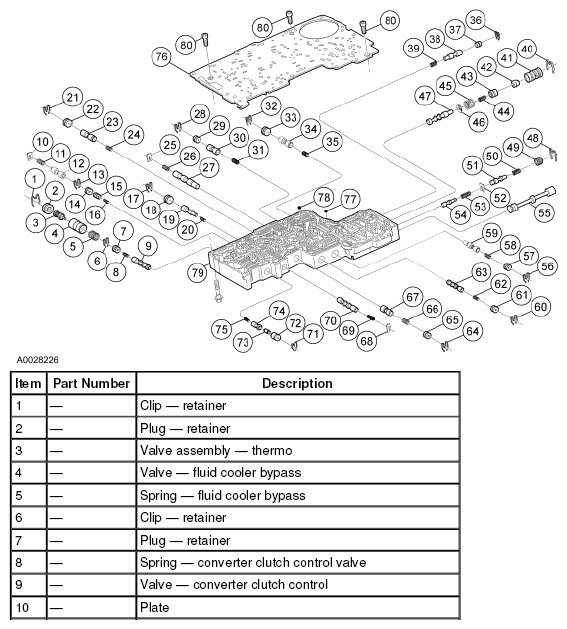

Fig 1: Identifying Main Control Valve Body Components (Items 1-10)

Courtesy of FORD MOTOR CO.

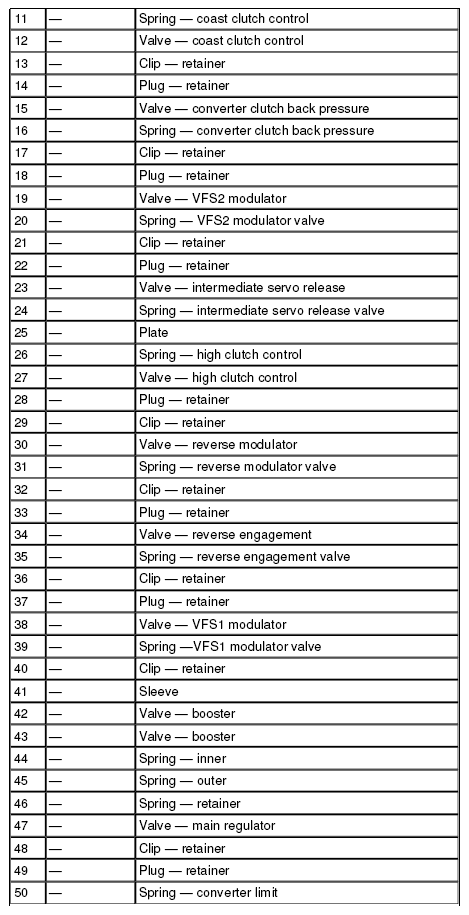

Fig 2: Main Control Valve Body Components Reference Table (Items 11-50)

Courtesy of FORD MOTOR CO.

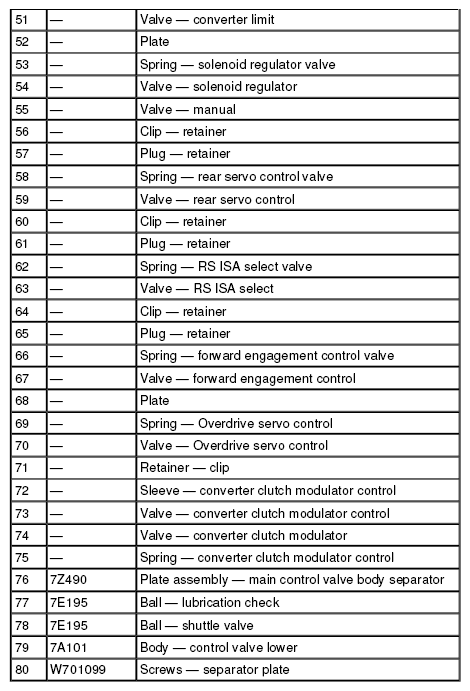

Fig 3: Main Control Valve Body Components Reference Table (Items 51-80)

Courtesy of FORD MOTOR CO.
