Main Control Valve Body: Notes

SPECIAL TOOL CHART

G04691220Courtesy of FORD MOTOR CO.
 Aligner, Valve Body (2 required)
307-334 (T95L-70010-C)
MATERIAL CHART

Item Specification
MERCON® V Automatic Transmission Fluid XT-5-QM MERCON® V

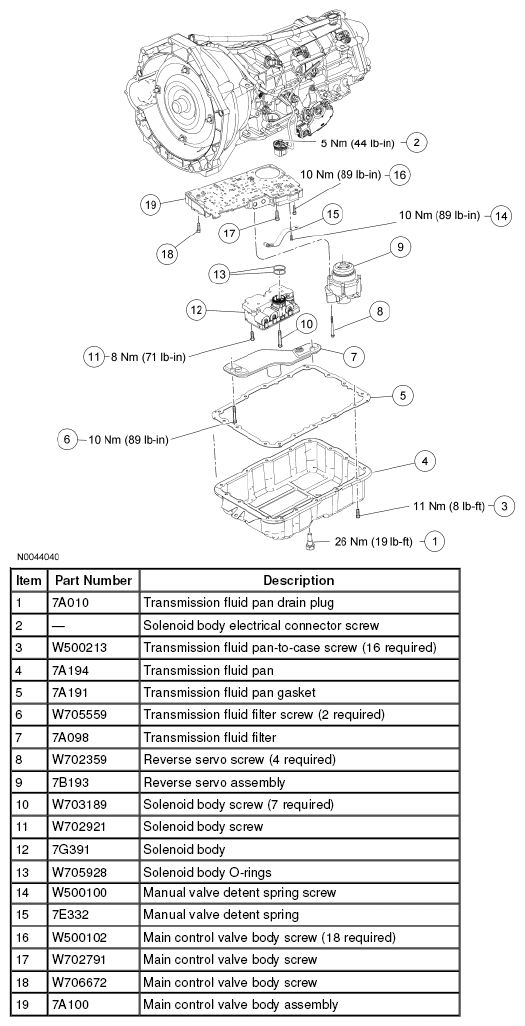

Fig 1: Main Control Valve Body Replacement Components With Torque Specifications
G04691221Courtesy of FORD MOTOR CO.
