Solenoid Body Assembly: Notes

MATERIAL CHART

Item Specification
MERCON® V Automatic Transmission Fluid XT-5-QM MERCON® V

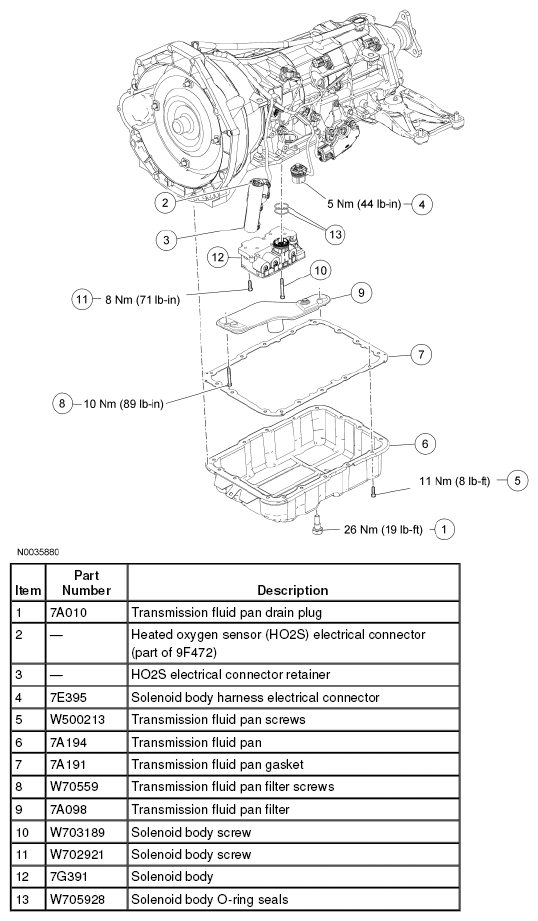

Fig 1: Solenoid Body Assembly Replacement Components With Torque Specifications
G04691276Courtesy of FORD MOTOR CO.
