Transmission Support Insulator: Notes

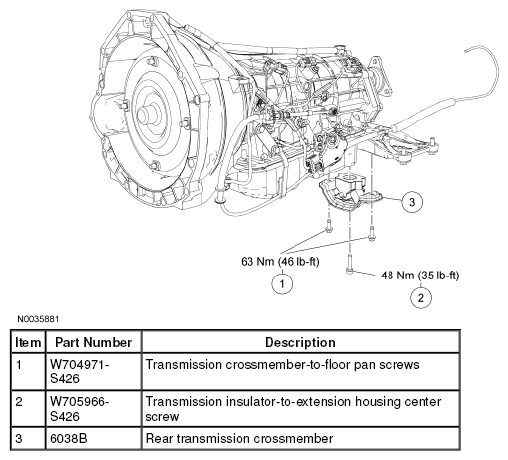

Fig 1: Transmission Support Insulator And Torque Specification
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
