Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Smart Junction Box (SJB)

G00418324

Courtesy of FORD MOTOR CO.

Fig 2: Battery Junction Box (BJB)

G00418325

Courtesy of FORD MOTOR CO.

Fig 3: Roof (W/O Moonroof)

G00418326

Courtesy of FORD MOTOR CO.

Fig 4: Roof (W/ Moonroof)

G00418327

Courtesy of FORD MOTOR CO.

Fig 5: Trunk (Zephyr)

G00418328

Courtesy of FORD MOTOR CO.

Fig 6: Trunk (Milan)

G00418329

Courtesy of FORD MOTOR CO.

Fig 7: Trunk (Fusion)

G00418330

Courtesy of FORD MOTOR CO.

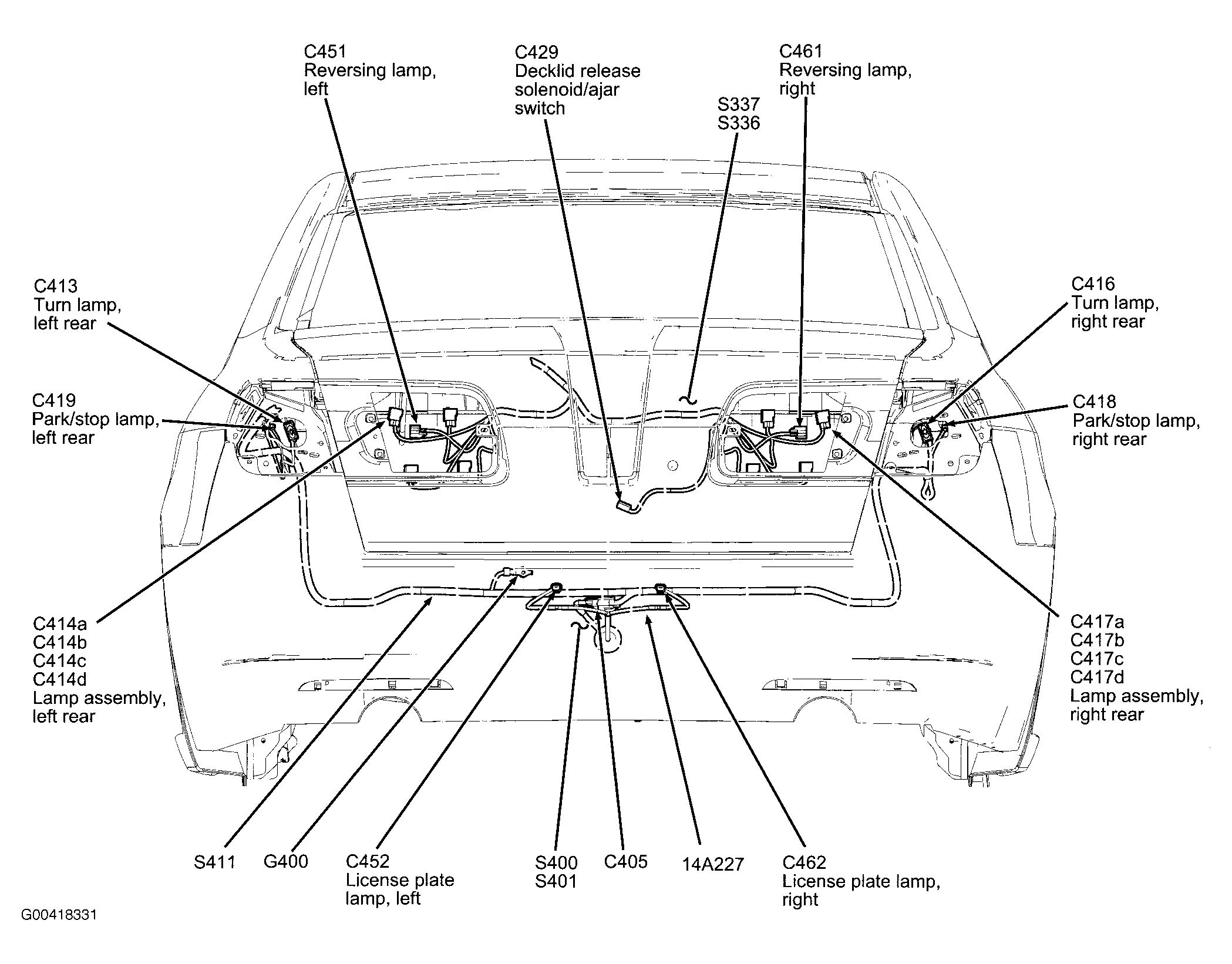

Fig 8: Rear End (Zephyr)

G00418331

Courtesy of FORD MOTOR CO.

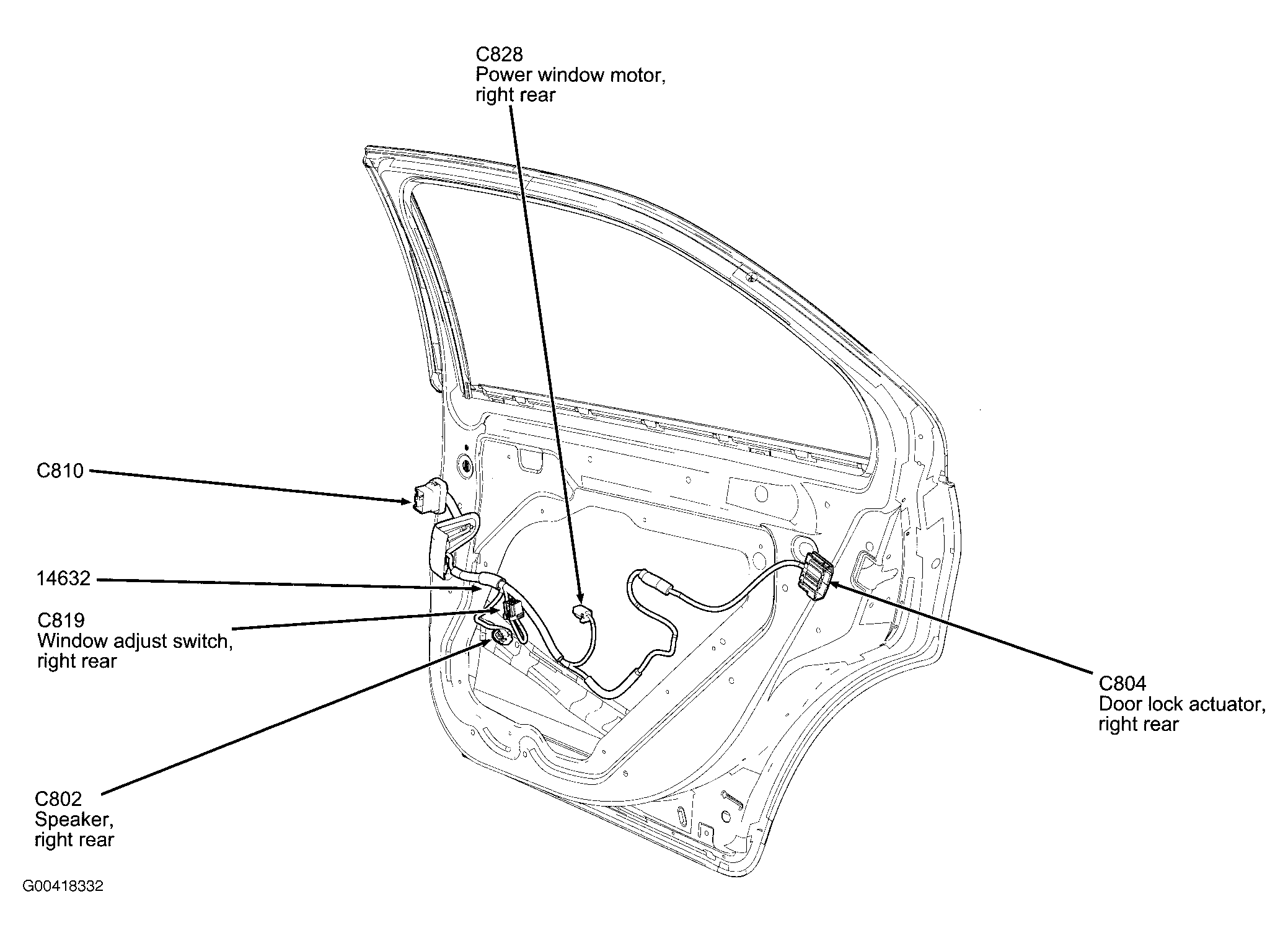

Fig 9: Right Rear Door

G00418332

Courtesy of FORD MOTOR CO.

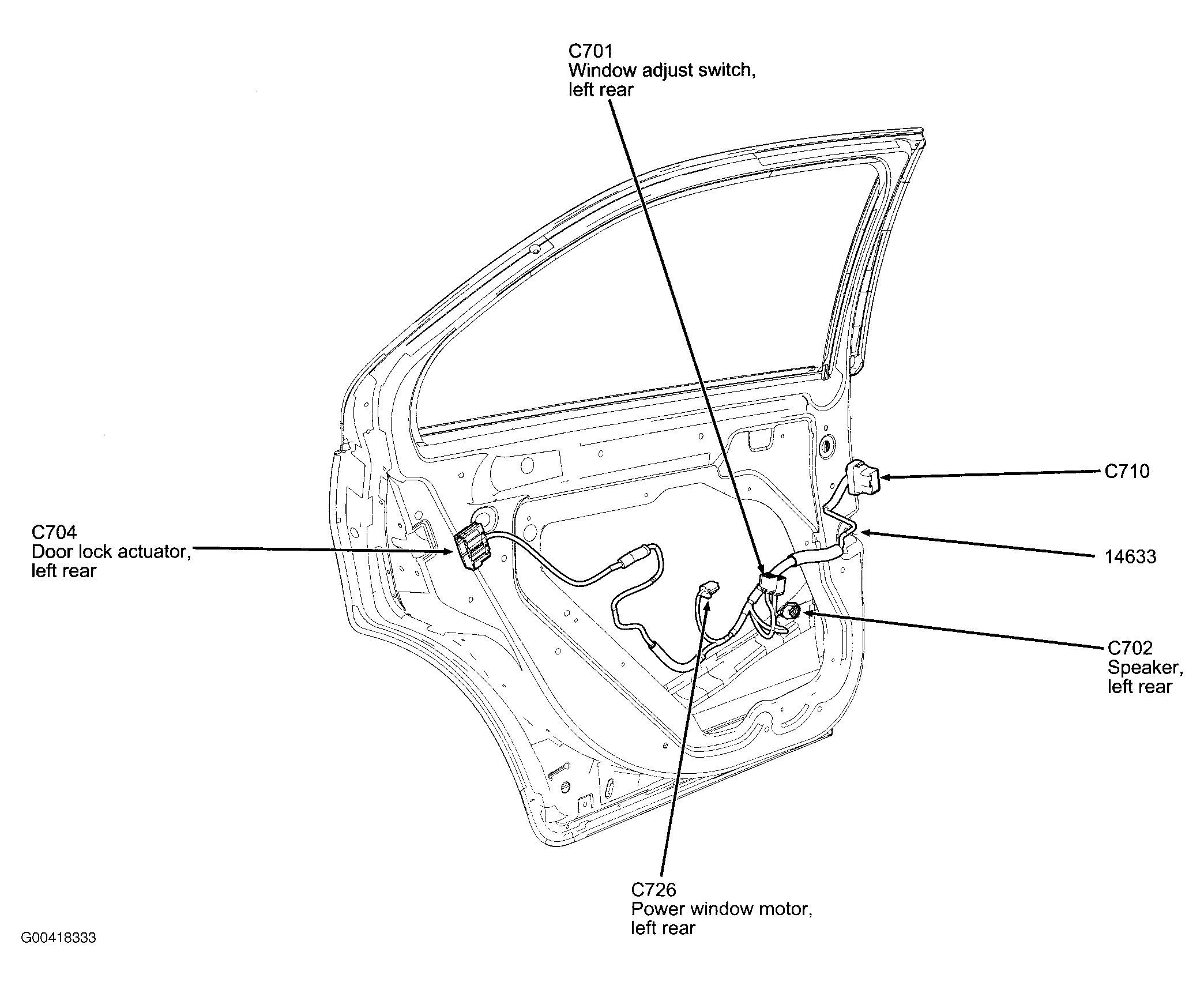

Fig 10: Left Rear Door

G00418333

Courtesy of FORD MOTOR CO.

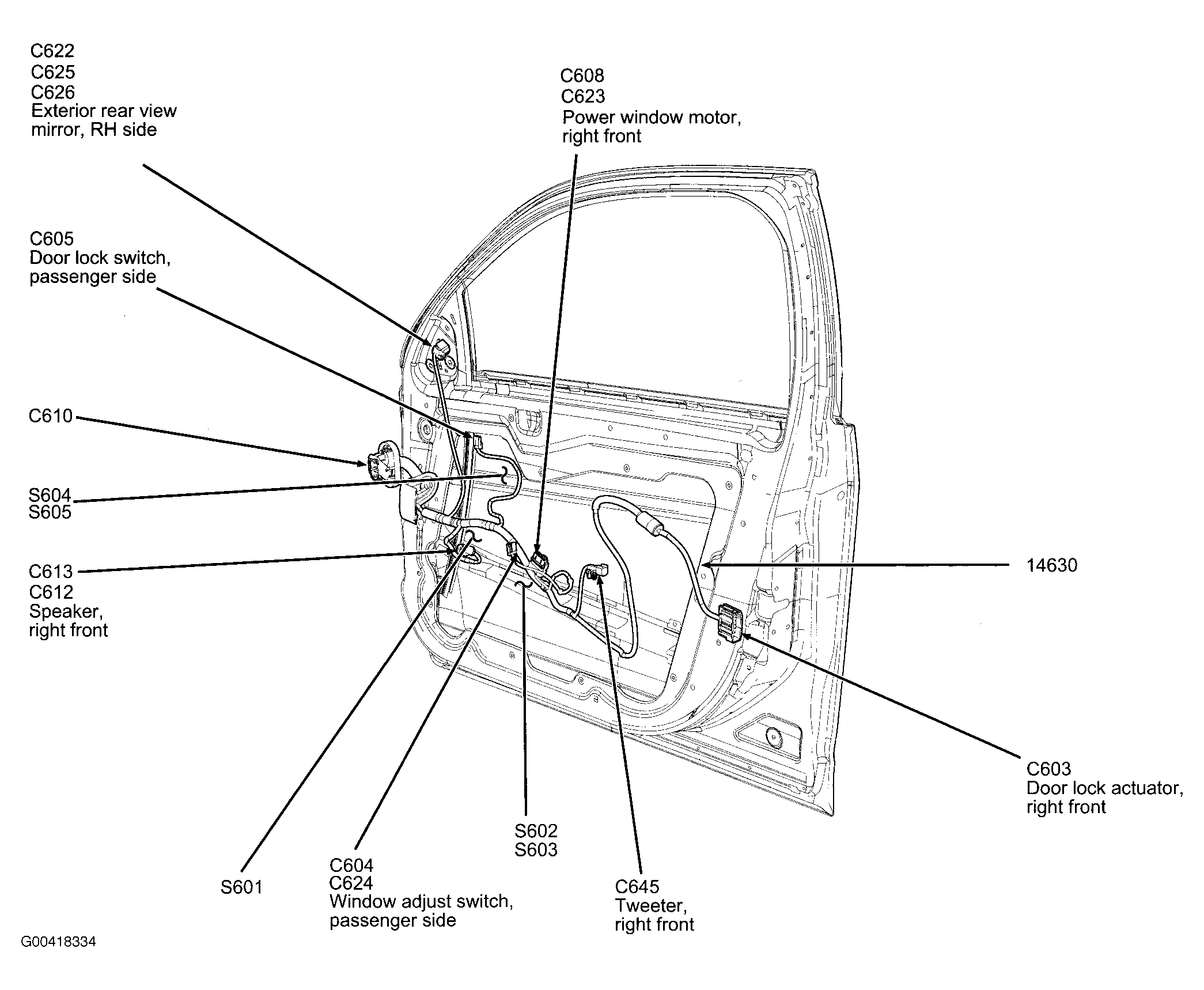

Fig 11: Right Front Door

G00418334

Courtesy of FORD MOTOR CO.

Fig 12: Driver's Door

G00418335

Courtesy of FORD MOTOR CO.

Fig 13: Front Passenger's Seat

G00418336

Courtesy of FORD MOTOR CO.

Fig 14: Driver's Seat

G00418337

Courtesy of FORD MOTOR CO.

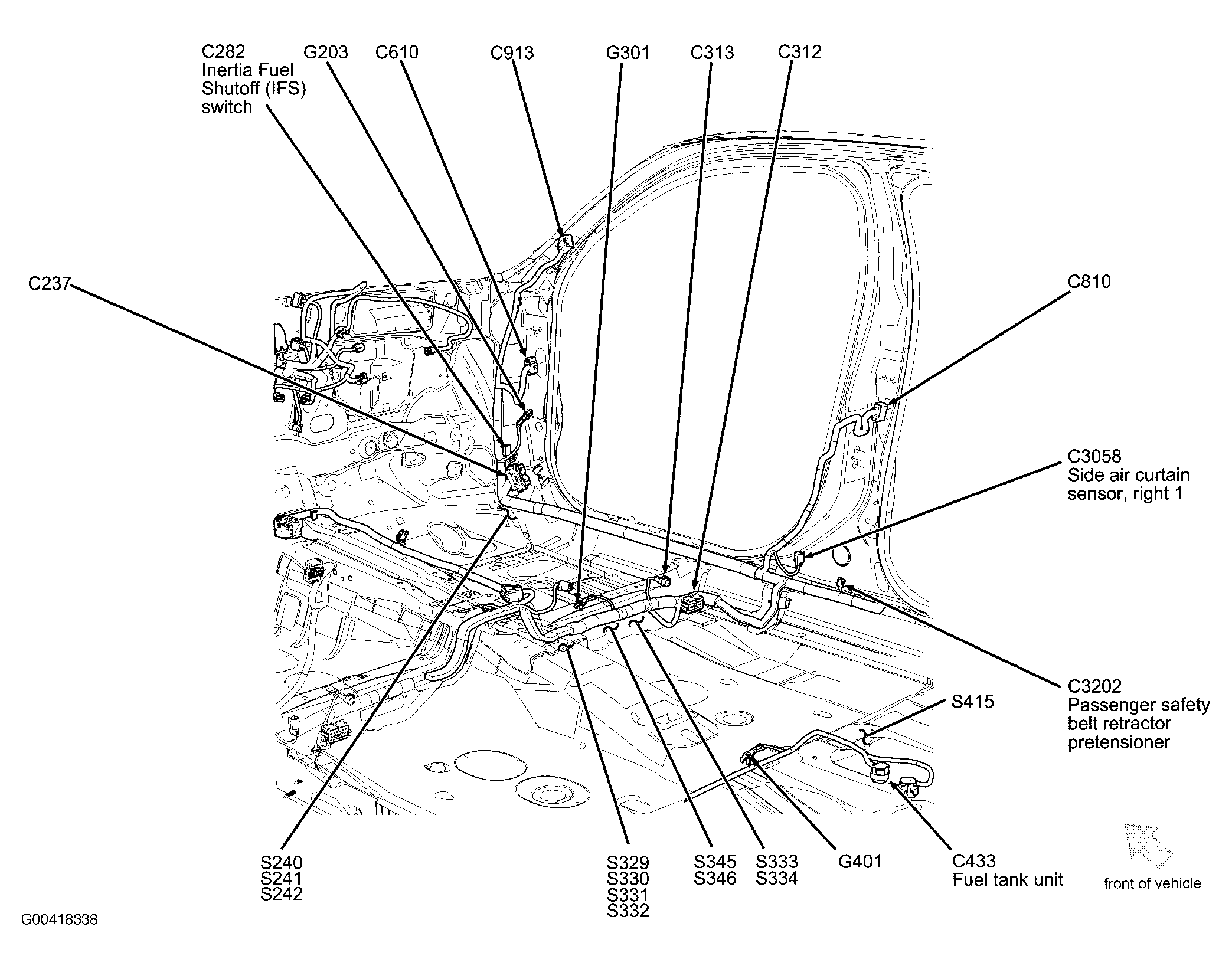

Fig 15: Right Front Of Passenger Compartment

G00418338

Courtesy of FORD MOTOR CO.

Fig 16: Left Front Of Passenger Compartment

G00418339

Courtesy of FORD MOTOR CO.

Fig 17: Center Console

G00418340

Courtesy of FORD MOTOR CO.

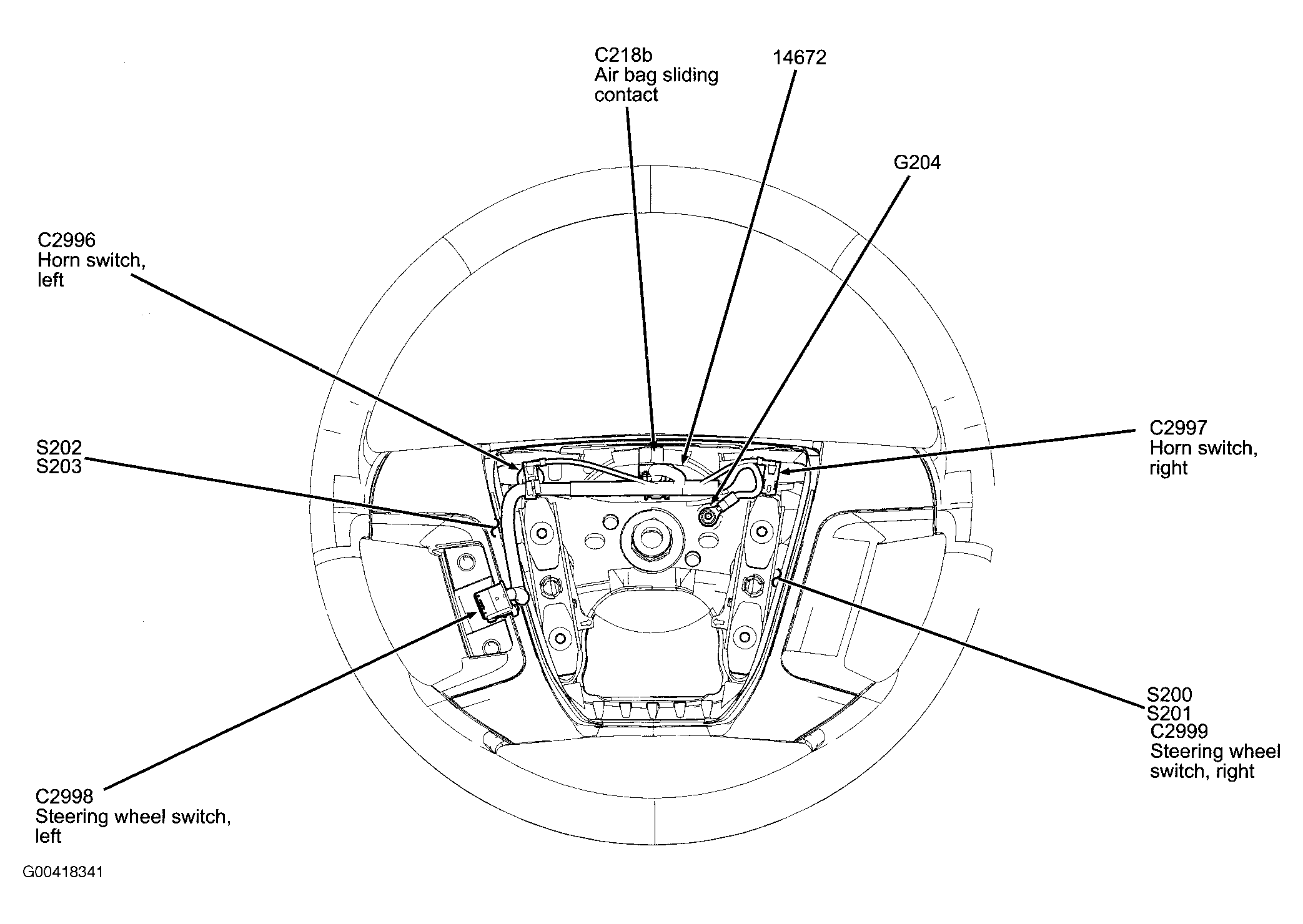

Fig 18: Steering Wheel

G00418341

Courtesy of FORD MOTOR CO.

Fig 19: Dash

G00418342

Courtesy of FORD MOTOR CO.

Fig 20: Dash

G00418343

Courtesy of FORD MOTOR CO.

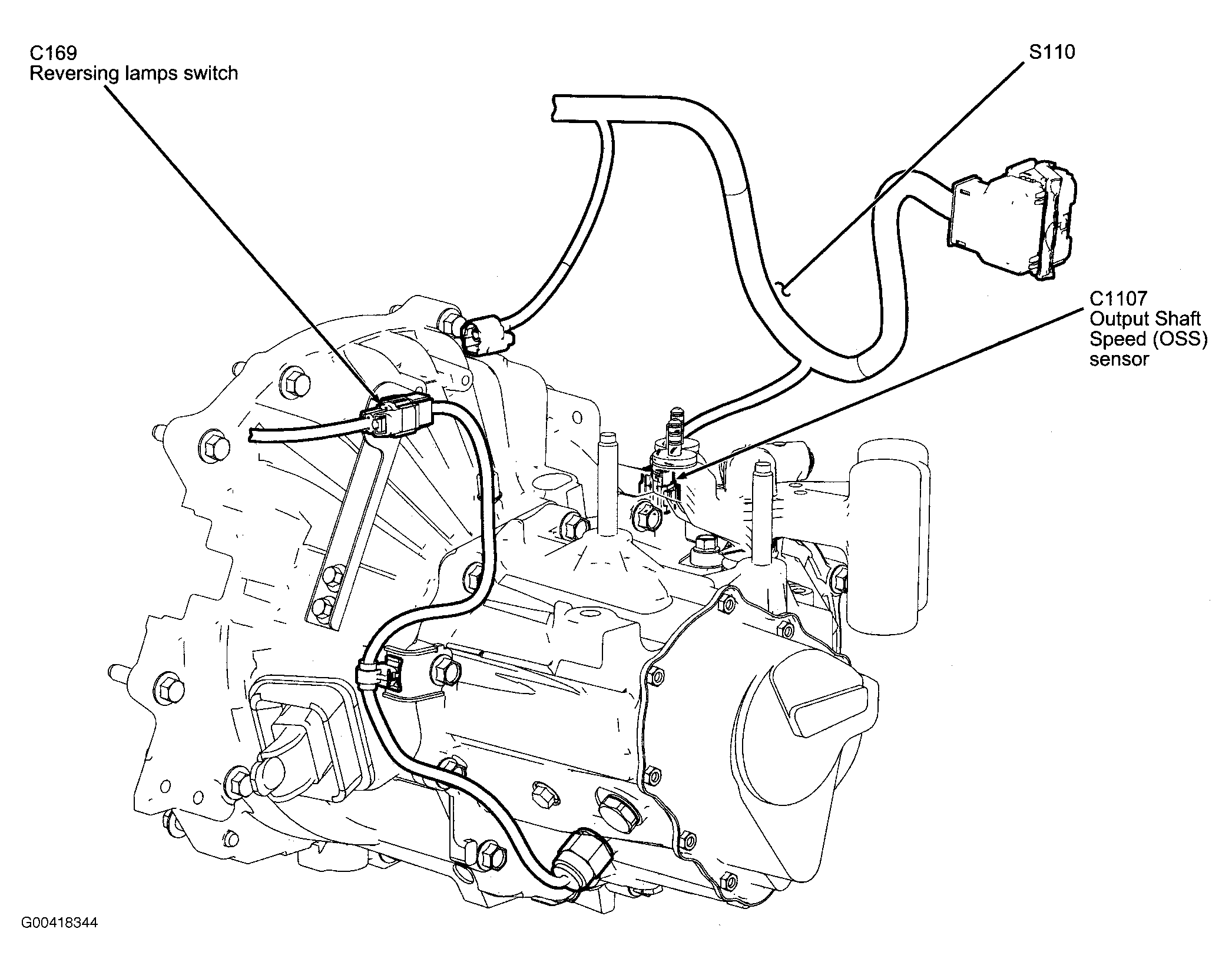

Fig 21: Manual Transmission (2.3L)

G00418344

Courtesy of FORD MOTOR CO.

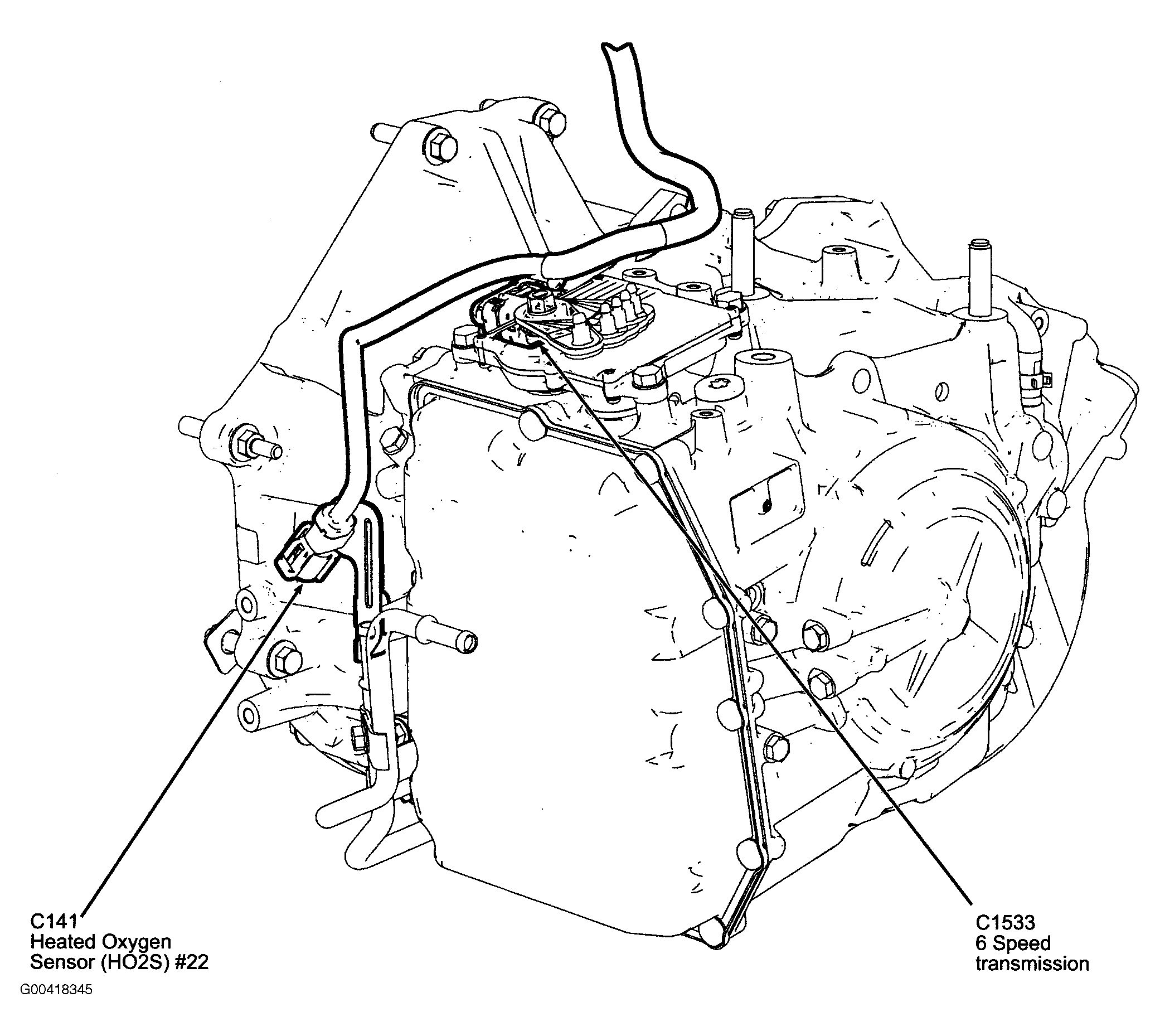

Fig 22: Automatic Transmission (3.0L)

G00418345

Courtesy of FORD MOTOR CO.

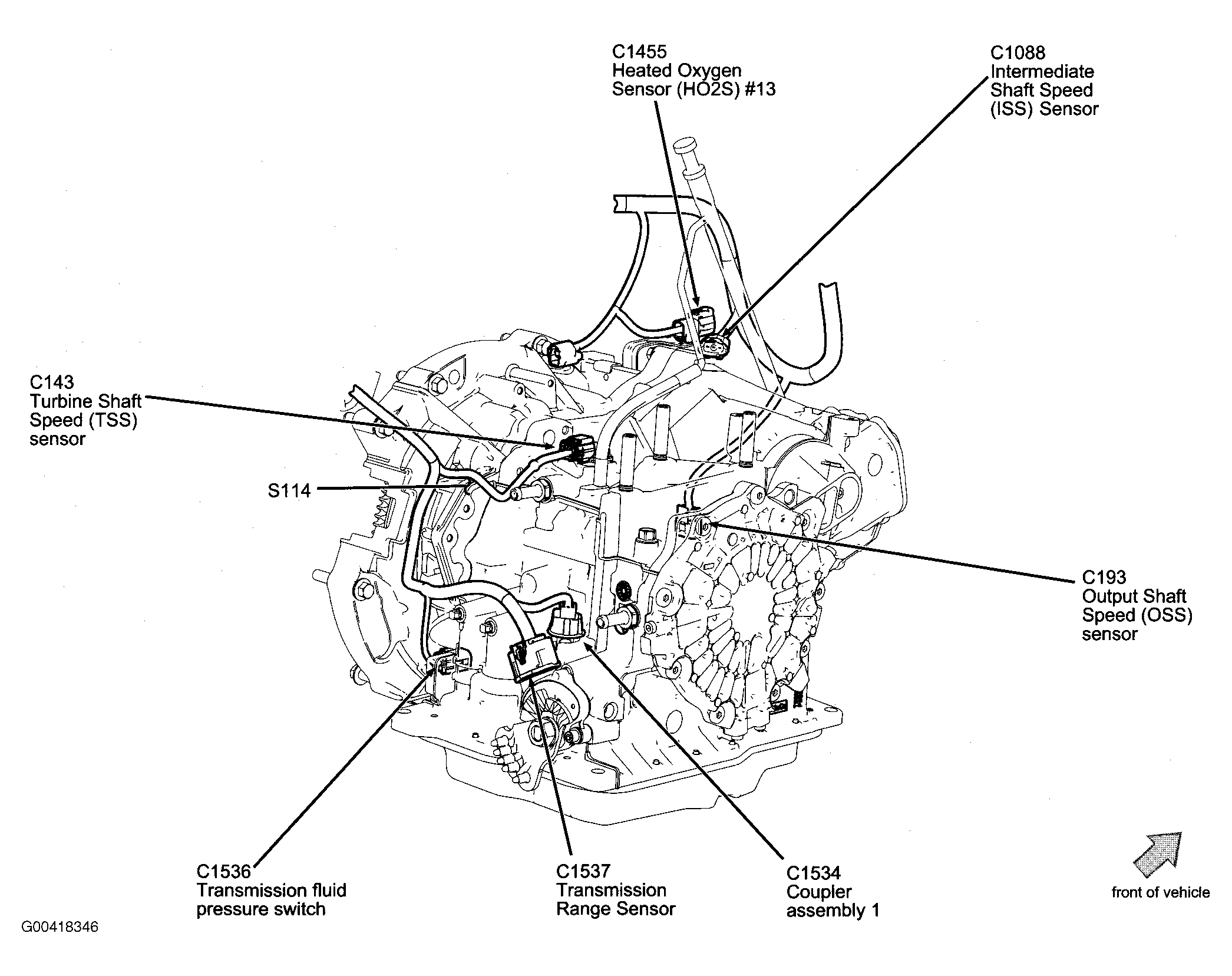

Fig 23: Automatic Transmission (2.3L)

G00418346

Courtesy of FORD MOTOR CO.

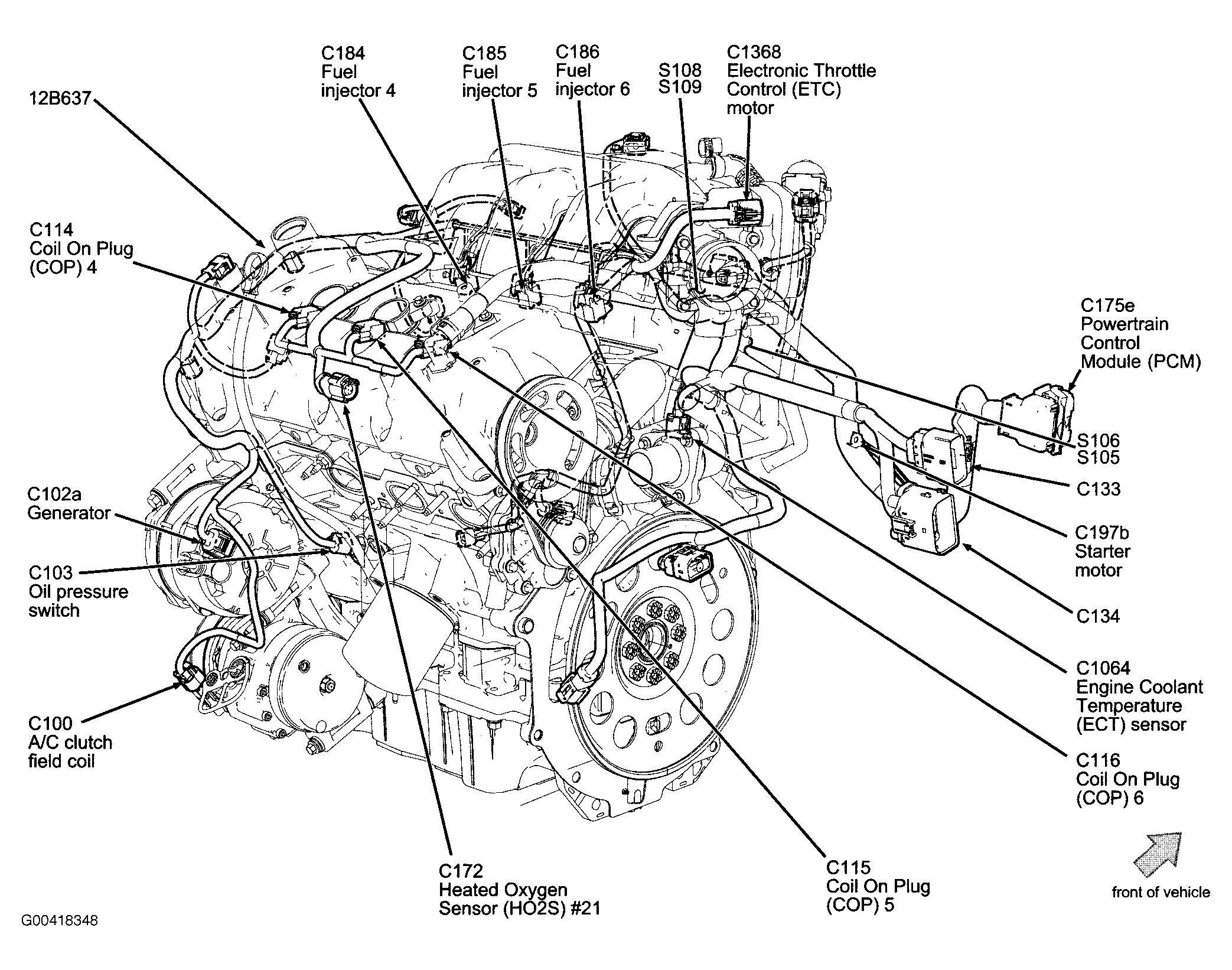

Fig 24: Rear Of Engine (3.0L)

G00418348

Courtesy of FORD MOTOR CO.

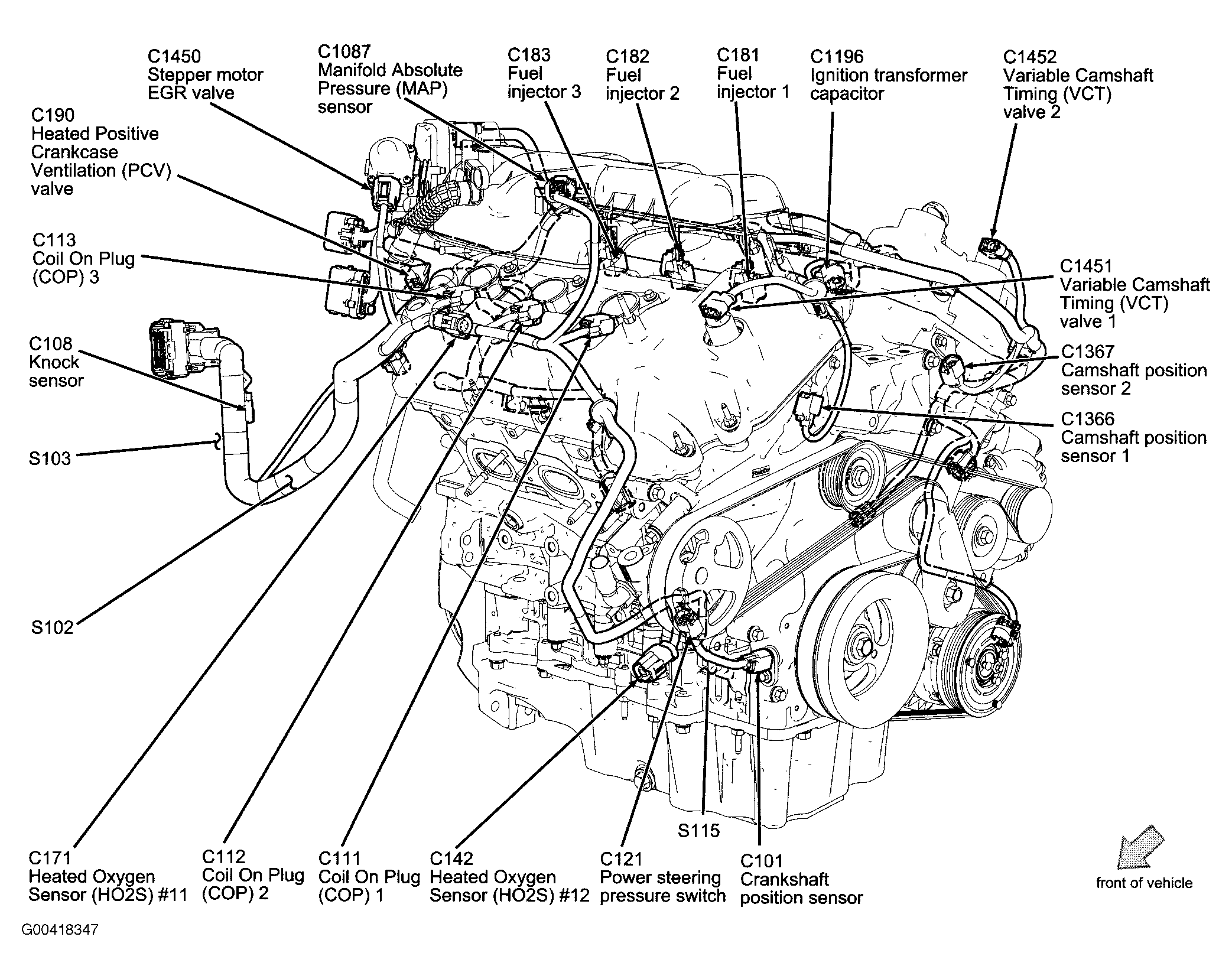

Fig 25: Front Of Engine (3.0L)

G00418347

Courtesy of FORD MOTOR CO.

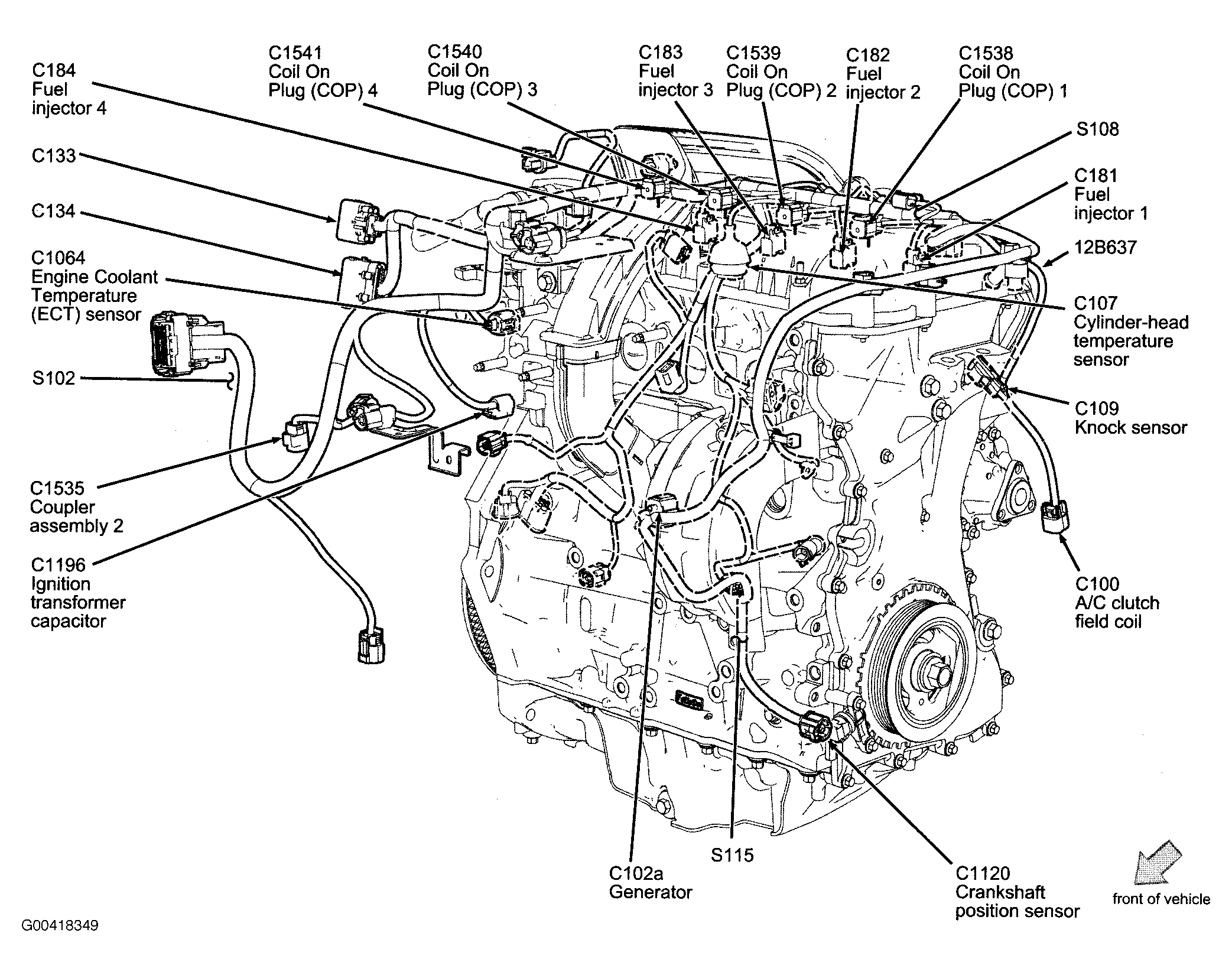

Fig 26: Front Of Engine (2.3L)

G00418349

Courtesy of FORD MOTOR CO.

Fig 27: Rear Of Engine (2.3L)

G00418350

Courtesy of FORD MOTOR CO.

Fig 28: Engine Compartment (3.0L)

G00418351

Courtesy of FORD MOTOR CO.

Fig 29: Engine Compartment (3.0L)

G00418352

Courtesy of FORD MOTOR CO.

Fig 30: Engine Compartment (2.3L)

G00418993

Courtesy of FORD MOTOR CO.

Fig 31: Engine Compartment (2.3L)

G00418994

Courtesy of FORD MOTOR CO.

Fig 32: Transaxle Assembly

G00476752

Courtesy of FORD MOTOR CO.

Fig 33: Transmission Control Module (TCM)

GF0029691

Courtesy of FORD MOTOR CO.
