Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

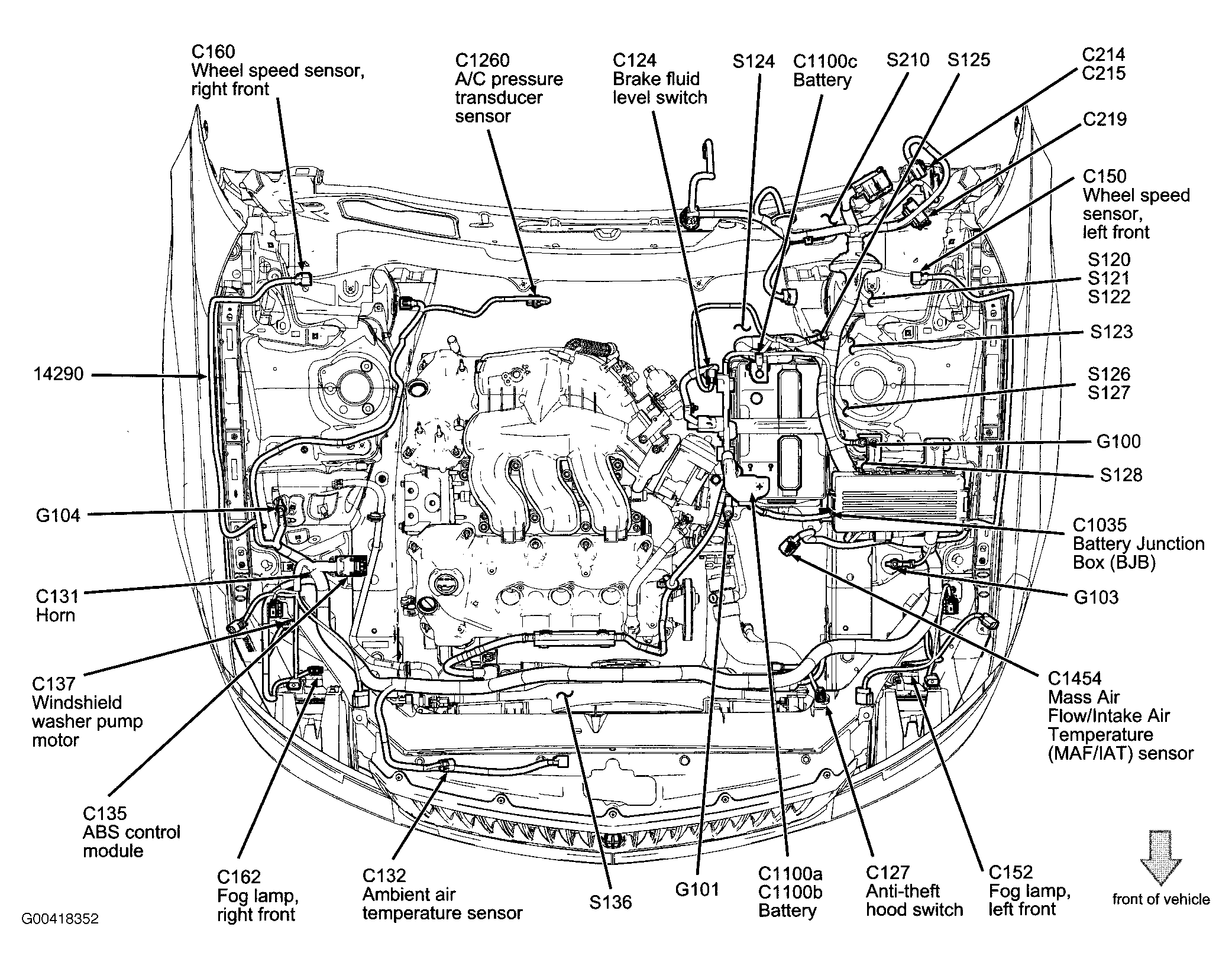

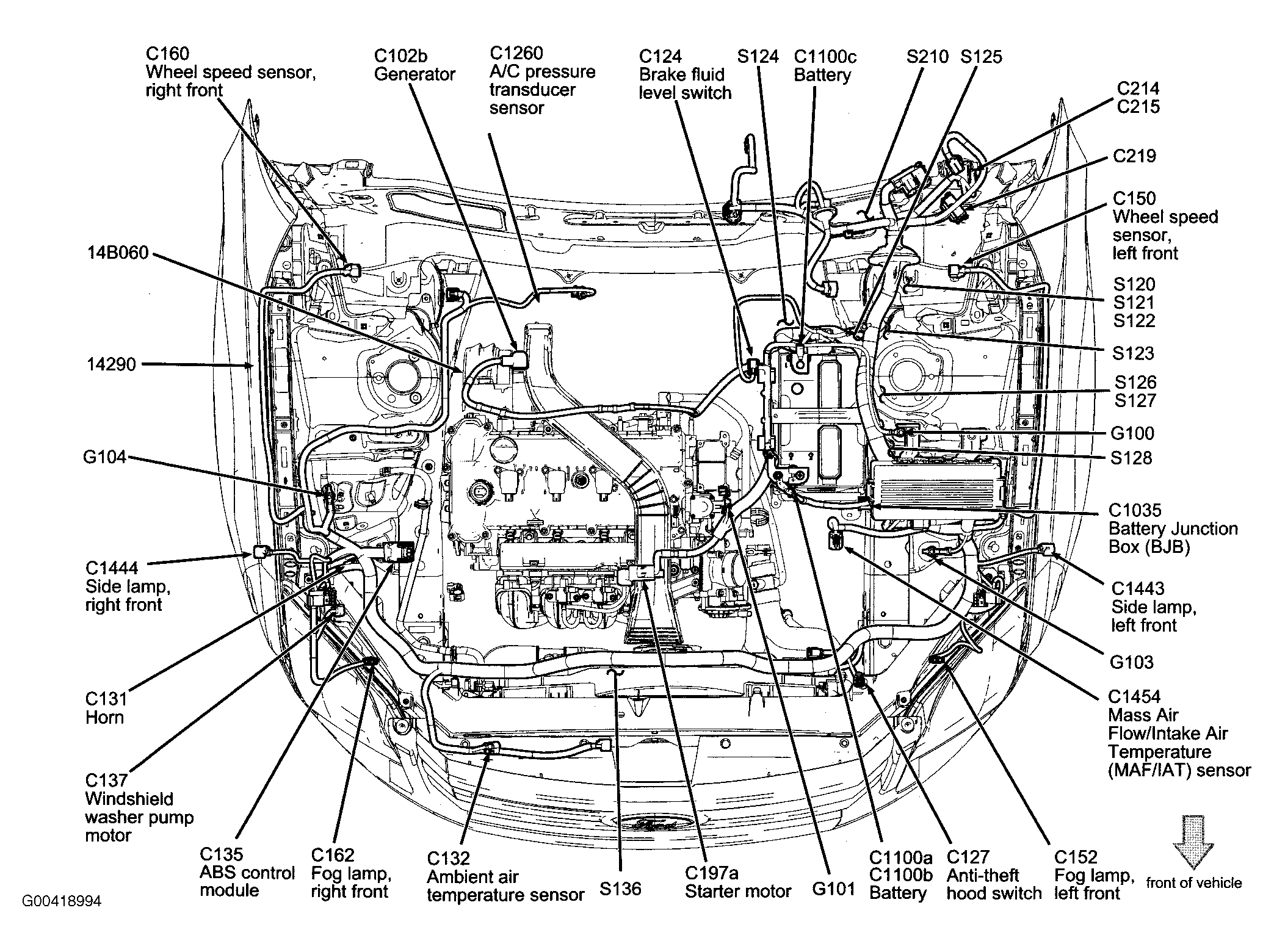

| ABS Control Module (2.3L) | Right front of engine compartment. See Figure. |

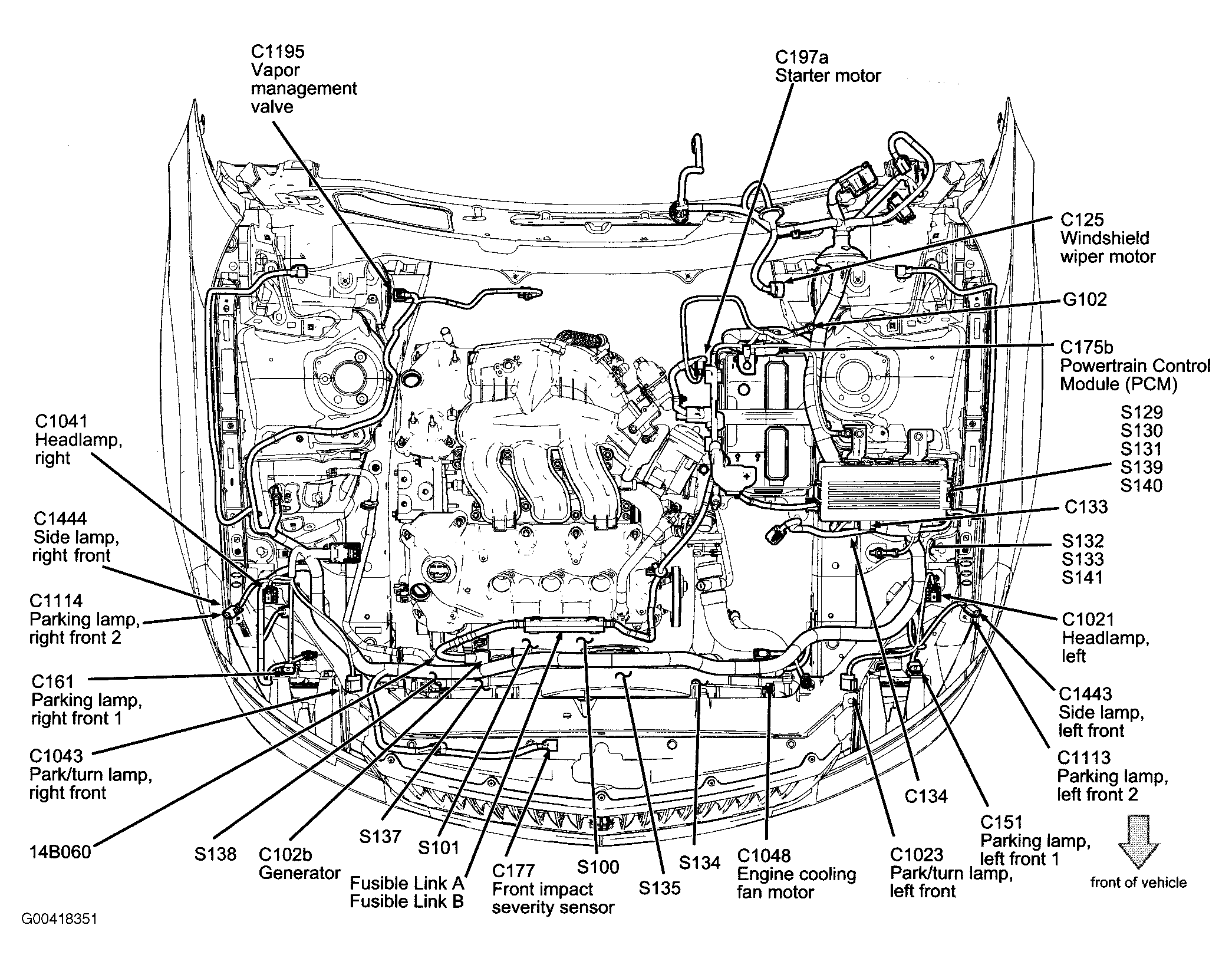

| ABS Control Module (3.0L) | Right front of engine compartment. See Figure. |

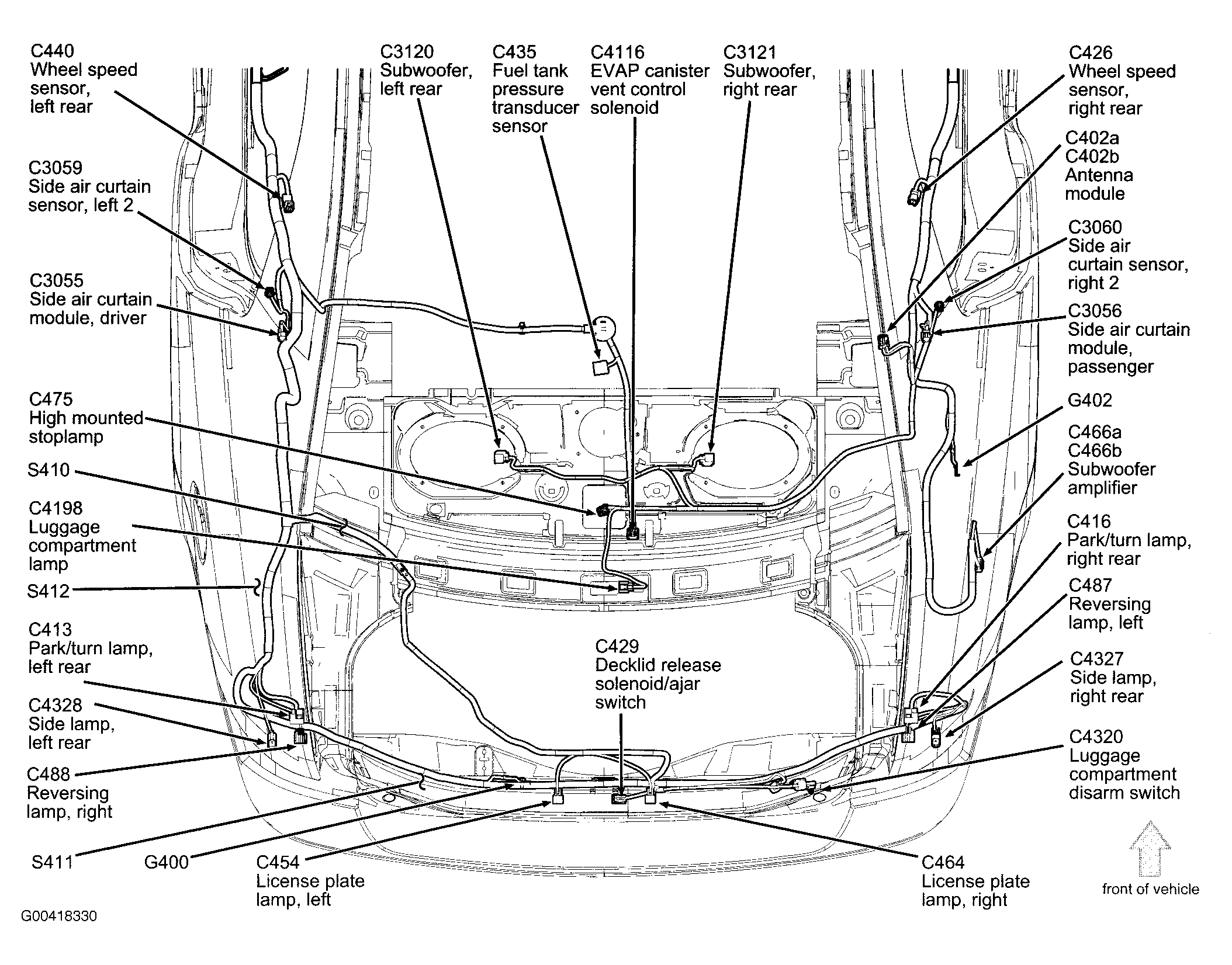

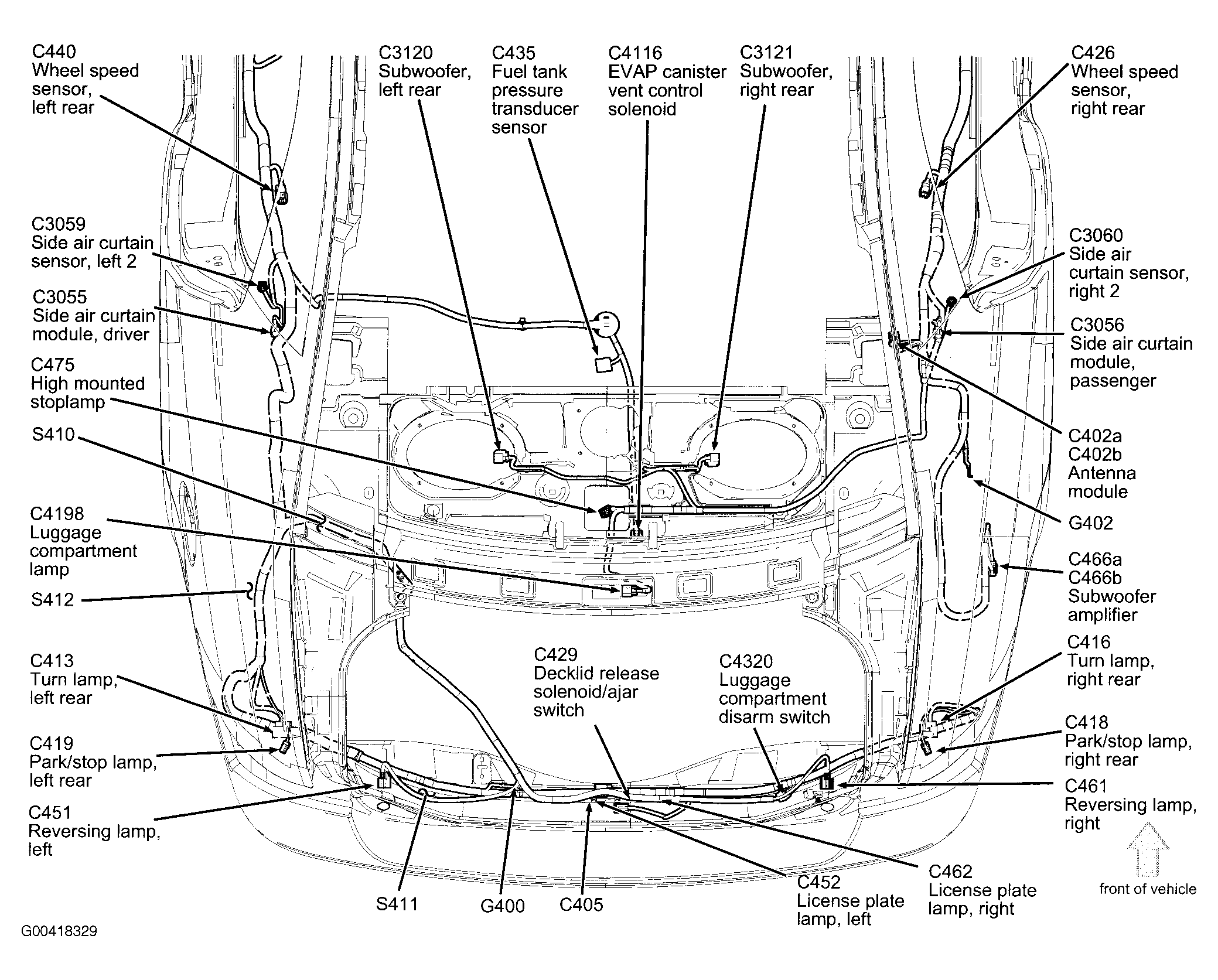

| Antenna Module (Fusion) | Base of right "C" pillar. See Figure. |
| Antenna Module (Milan) | Base of right "C" pillar. See Figure. |
| Antenna Module (Zephyr) | Base of right "C" pillar. See Figure. |

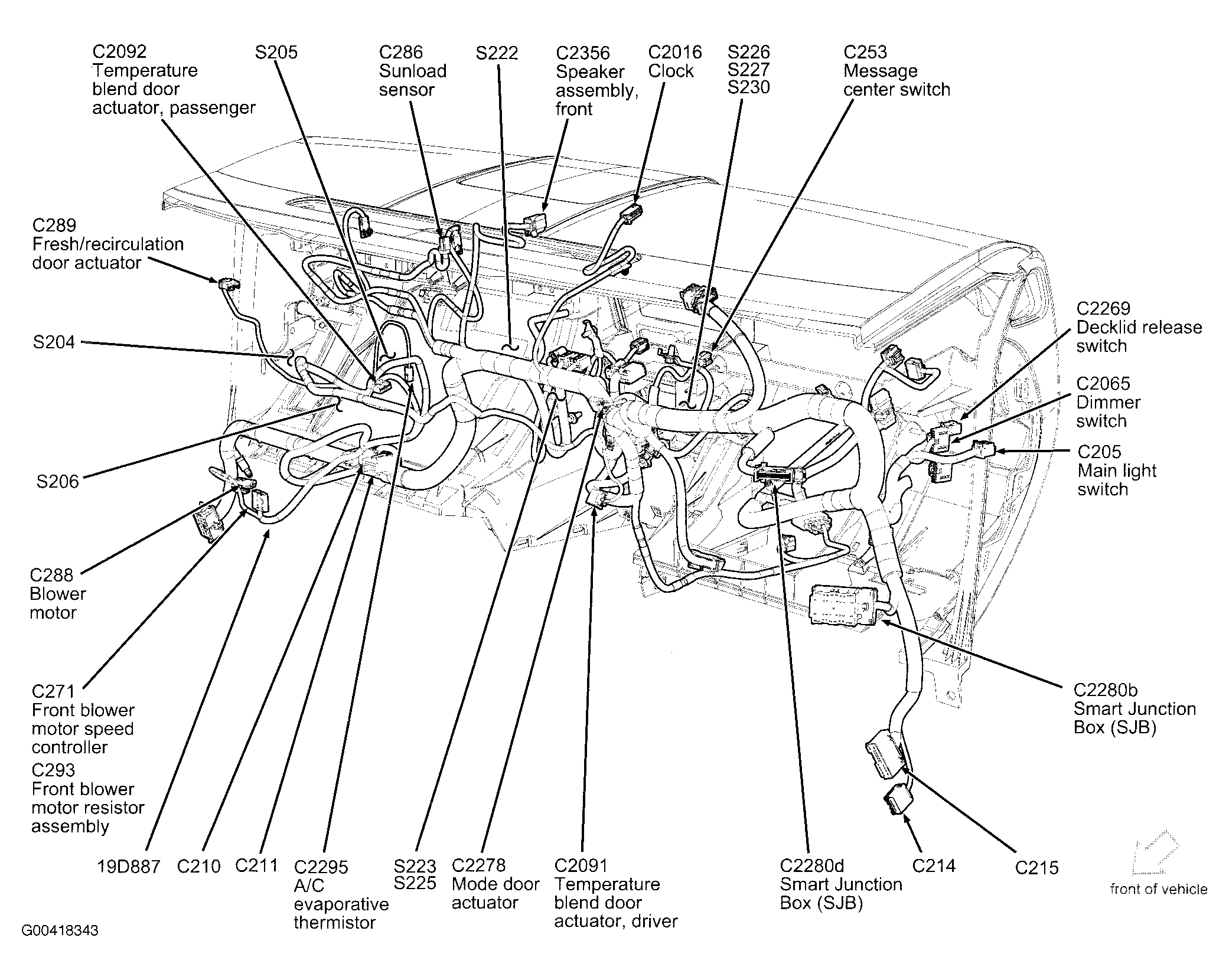

| Blower Motor Speed Controller (Front) | Right side of dash. See Figure. |

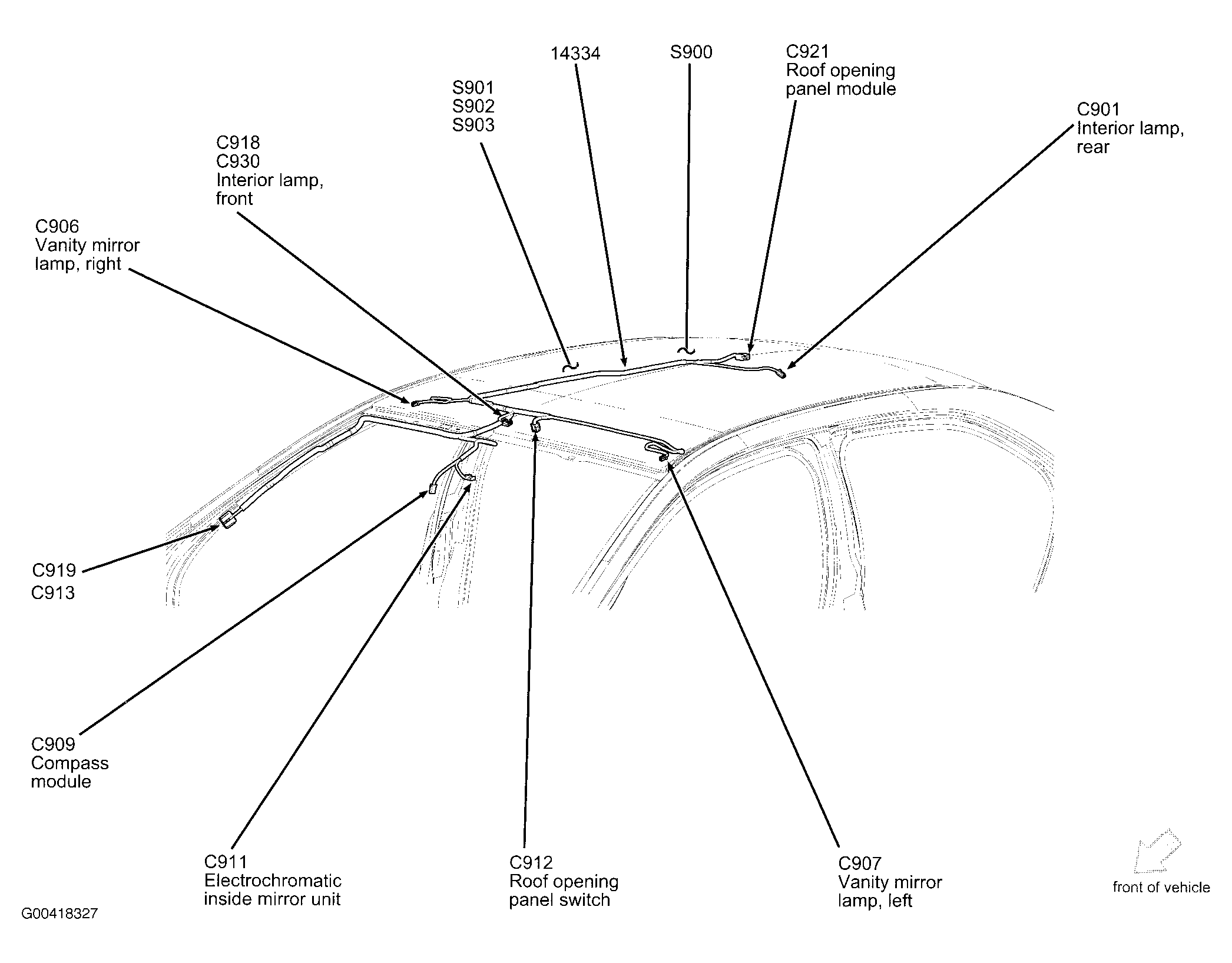

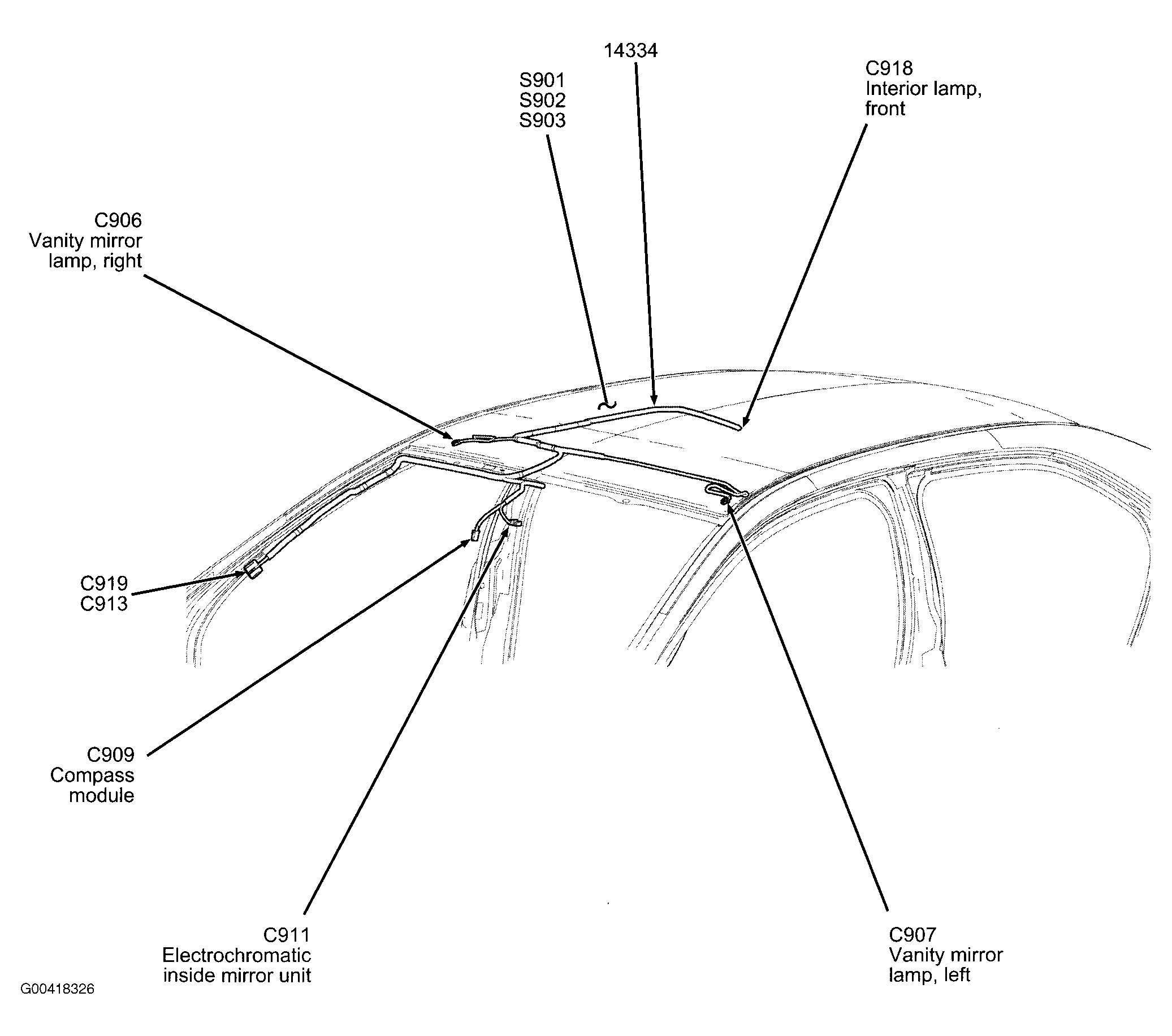

| Compass Module | Front center of roof. See Figure. |
| Compass Module (W/ Moonroof) | In roof harness. See Figure. |

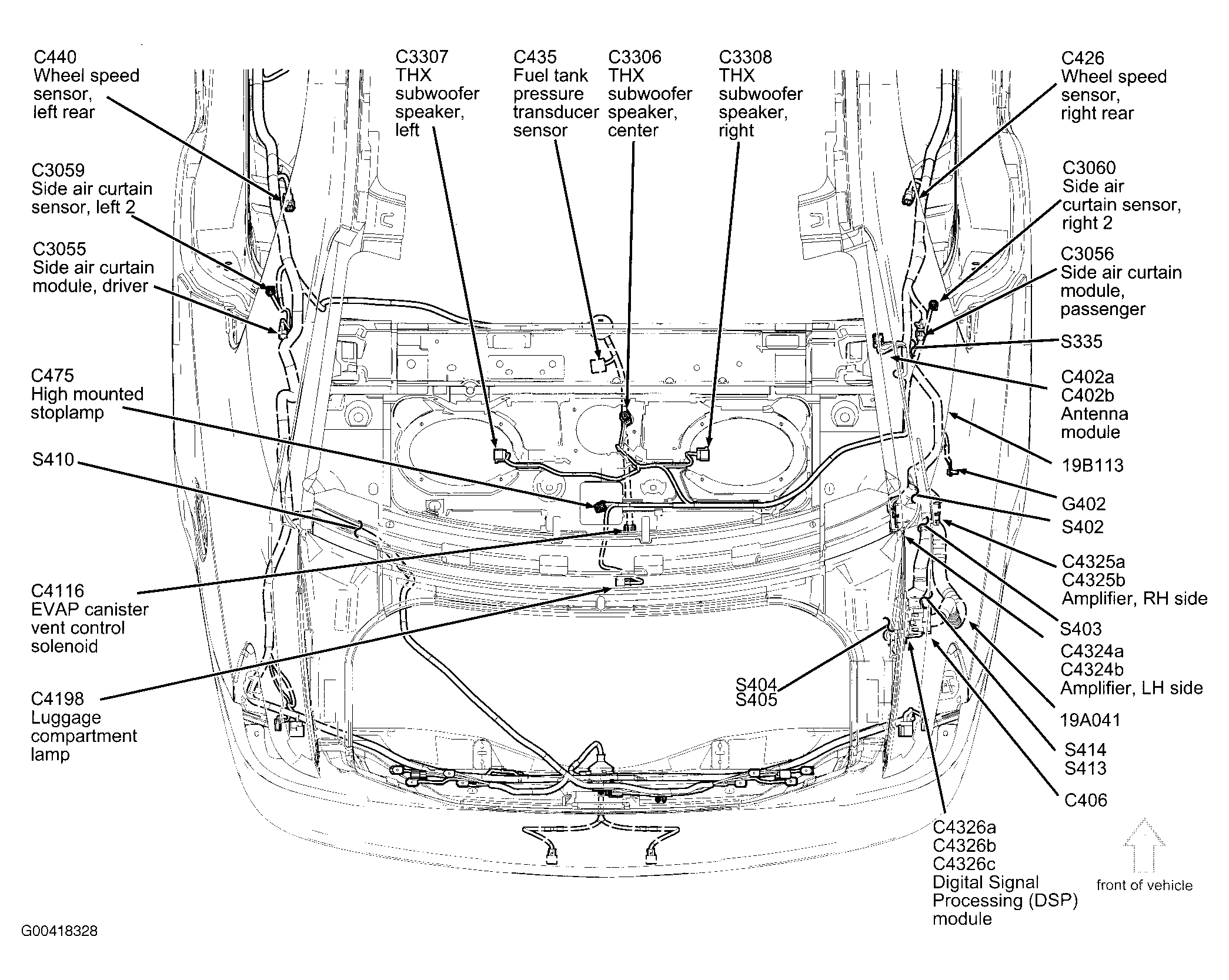

| Digital Signal Processing (DSP) Module | Right rear of trunk compartment. See Figure. |

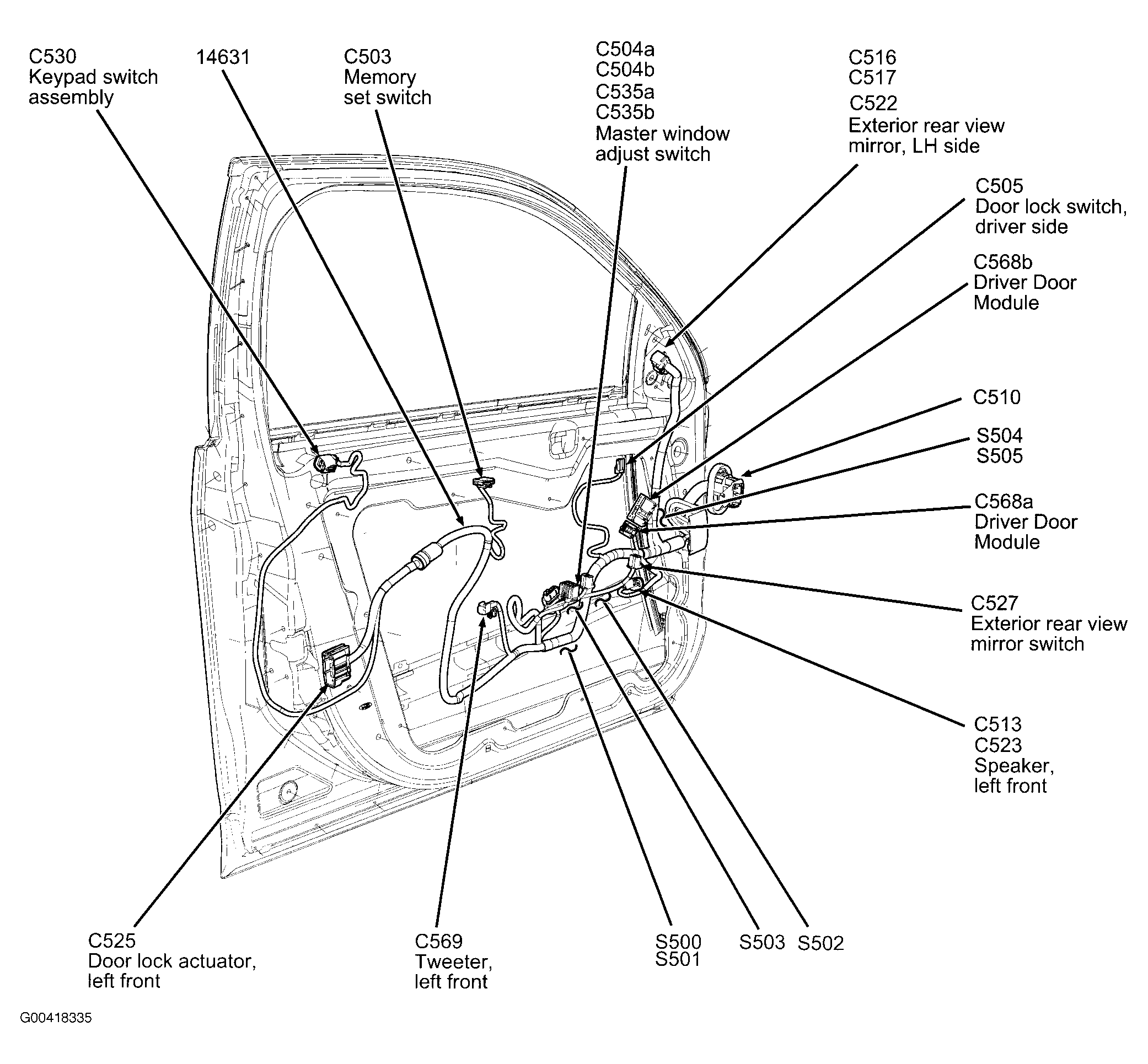

| Driver's Door Module | Front of driver's door. See Figure. |

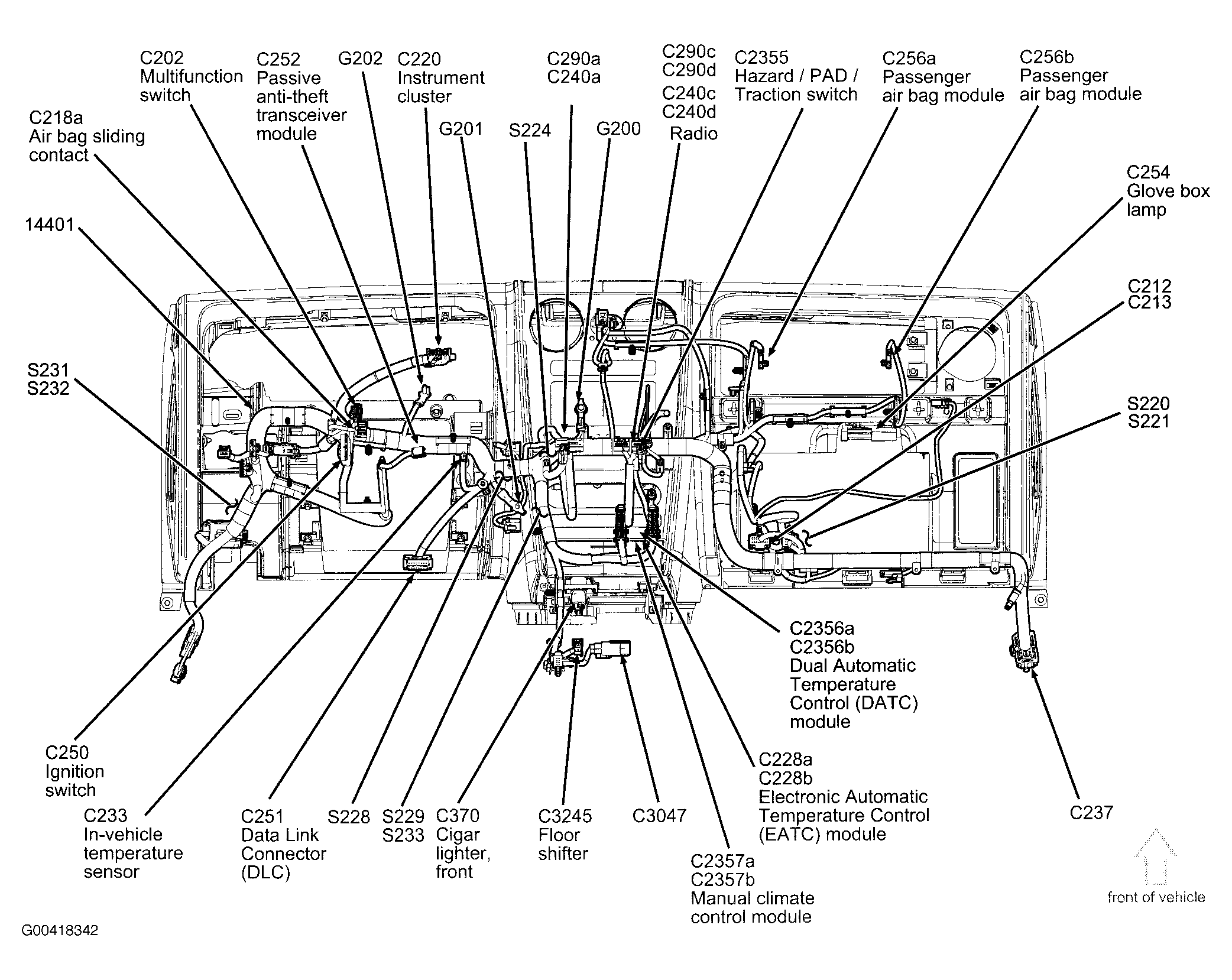

| Dual Automatic Temperature Control (DATC) Module | Center of dash. See Figure. |
| Electronic Automatic Temperature Control (EATC) Module | Center of dash. See Figure. |

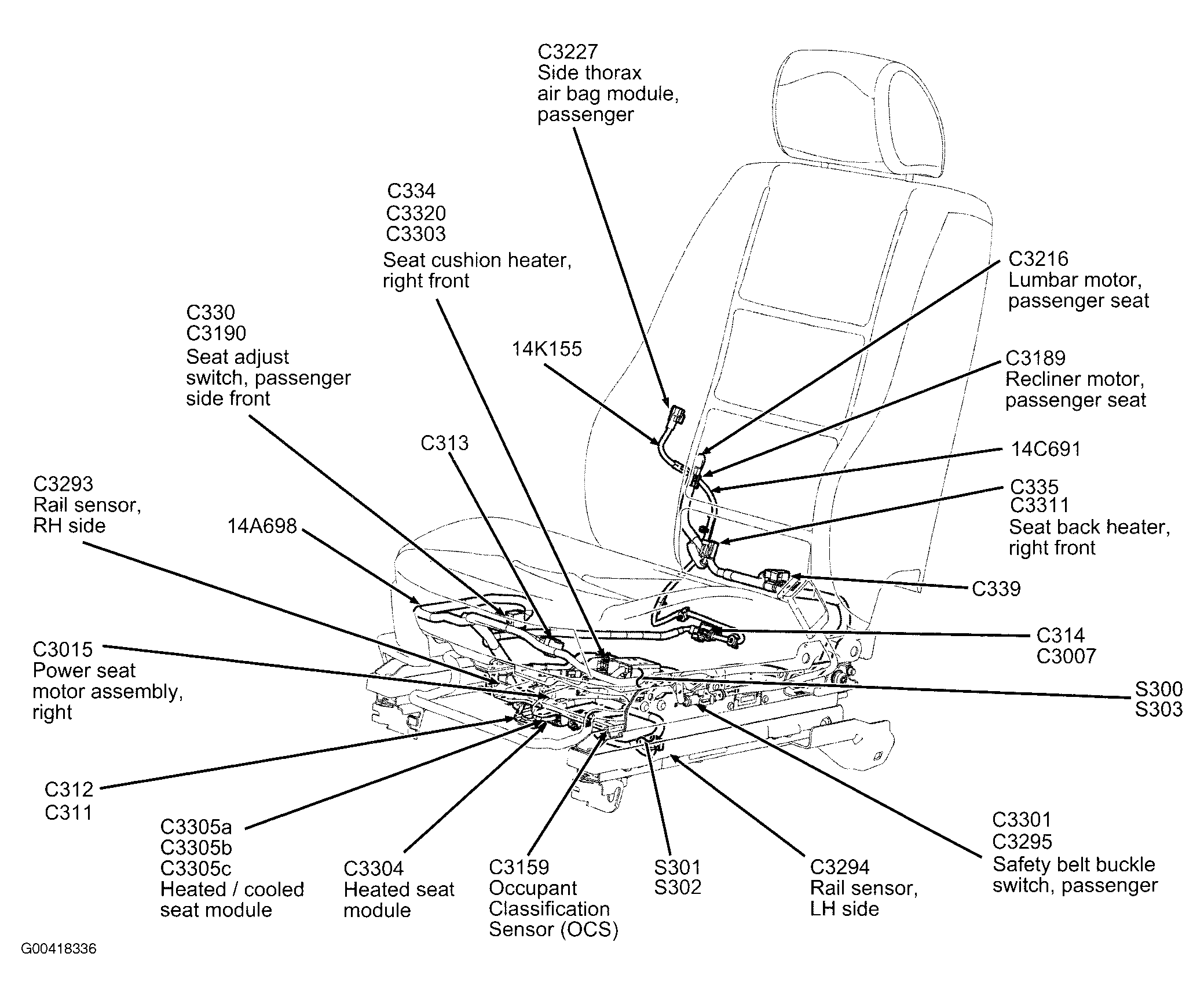

| Heated / Cooled Seat Module | Under seat bottom. See Figure. |
| Heated Seat Module | Under seat bottom. See Figure. |

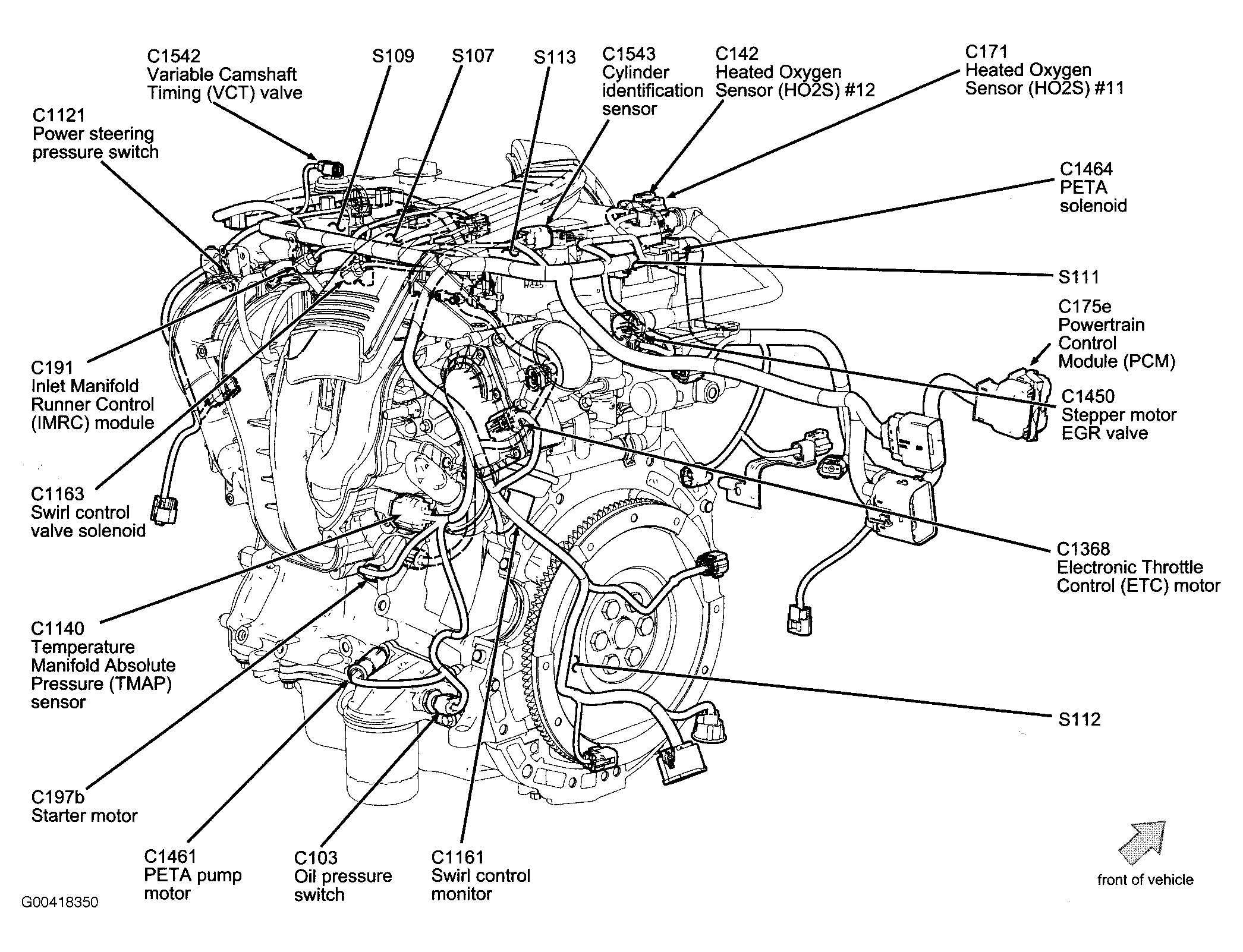

| Intake Manifold Runner Control (IMRC) Module | Top of intake manifold. See Figure. |
| Manual Climate Control Module | Center of dash. See Figure. |

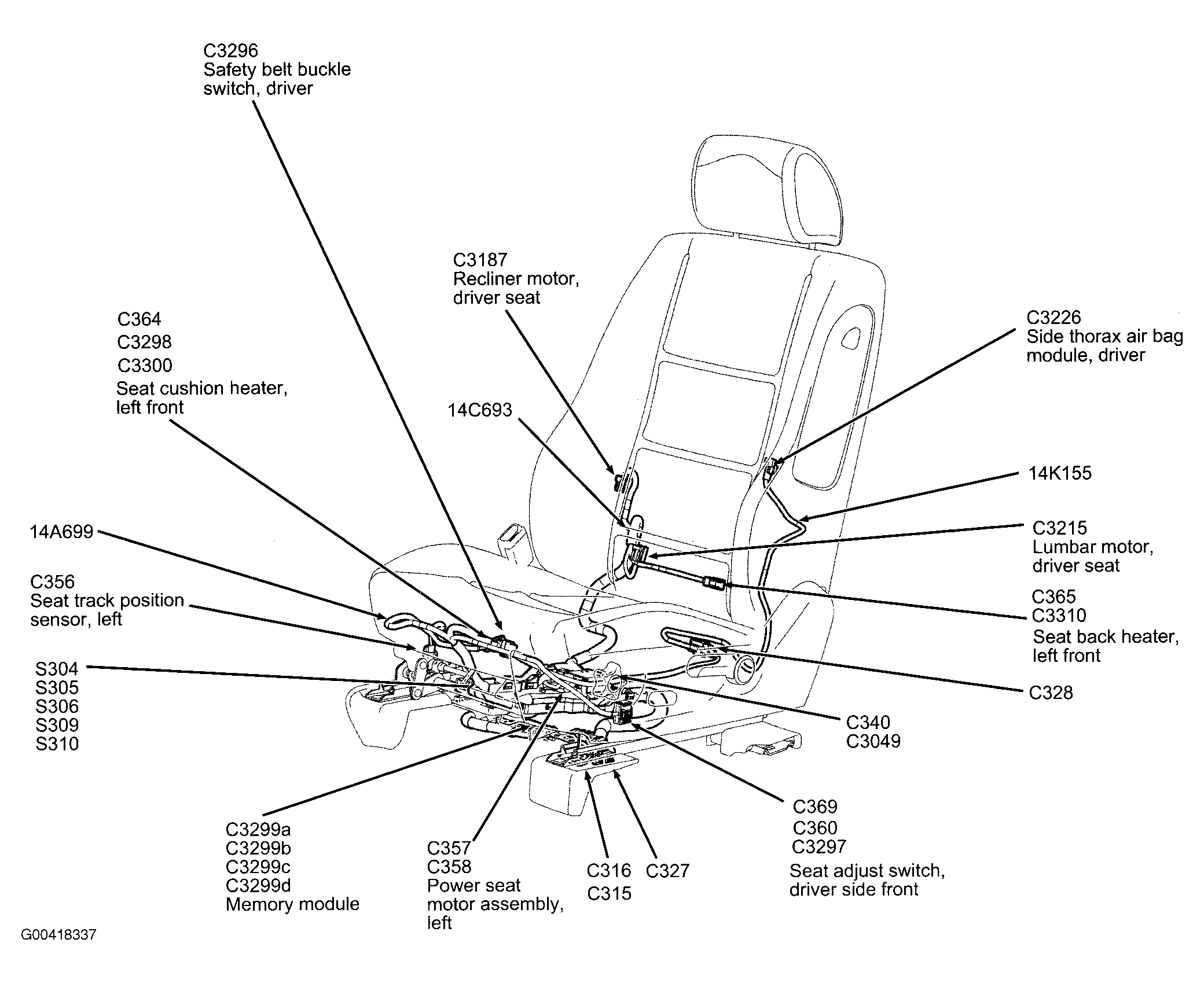

| Memory Module | Under driver's seat. See Figure. |
| Passive Anti-Theft Transceiver Module | Left side of dash. See Figure. |

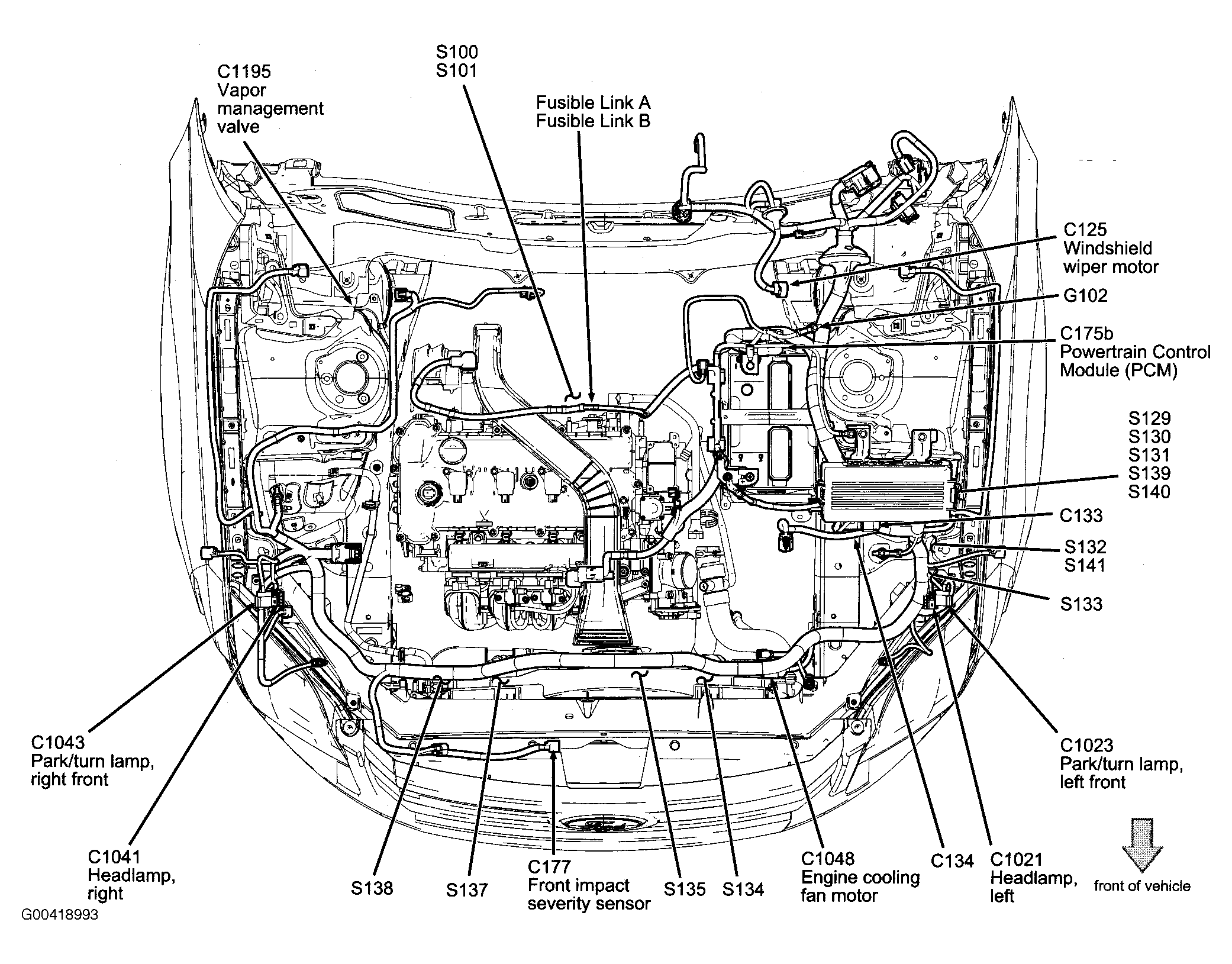

| Powertrain Control Module (PCM) (2.3L) | Left rear of engine compartment. See Figure. |
| Powertrain Control Module (PCM) (3.0L) | Left rear of engine compartment. See Figure. |

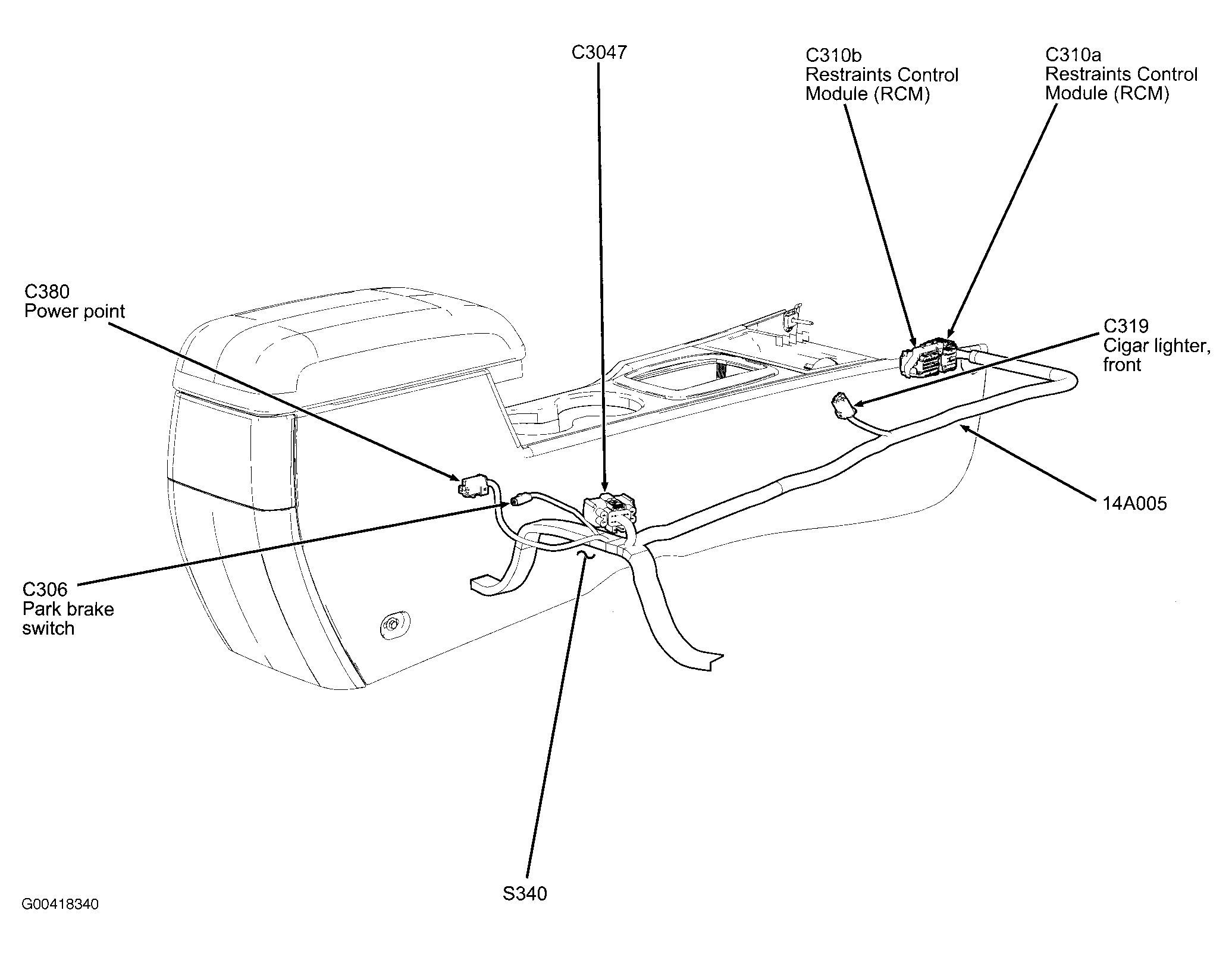

| Restraints Control Module (RCM) | Under center console. See Figure. |
| Roof Opening Panel Module | In roof harness. See Figure. |
| Side Air Curtain Module (Driver's) (Fusion) | Base of left "C" pillar. See Figure. |
| Side Air Curtain Module (Driver's) (Milan) | Base of left "C" pillar. See Figure. |
| Side Air Curtain Module (Driver's) (Zephyr) | Base of left "C" pillar. See Figure. |
| Side Air Curtain Module (Passenger's) (Fusion) | Base of right "C" pillar. See Figure. |
| Side Air Curtain Module (Passenger's) (Milan) | Base of right "C" pillar. See Figure. |
| Side Air Curtain Module (Passenger's) (Zephyr) | Base of right "C" pillar. See Figure. |

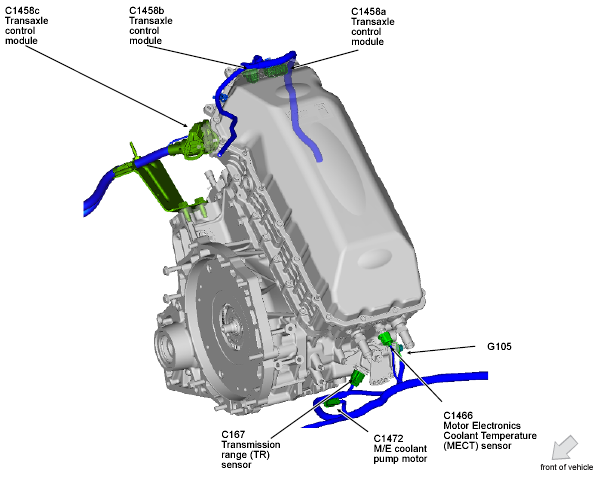

| Transaxle Control Module (AW21) | On transaxle. See Figure. |

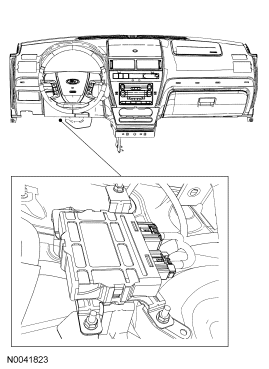

| Transmission Control Module (FNR5) | Under instrument panel, LH side. See Figure. |
