Safety Belt Shoulder Height Adjuster: Notes

NOTE: Late build safety belt shoulder height adjuster shown, early build similar.

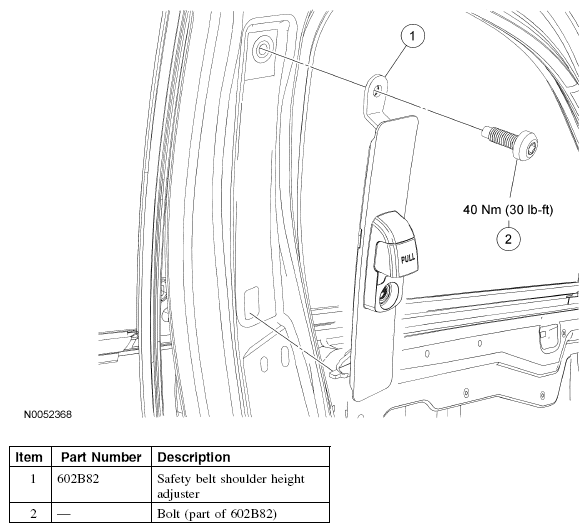

Fig 1: Safety Belt Shoulder Height Adjuster Replacement Components With Torque Specifications
G04683821Courtesy of FORD MOTOR CO.
