Selector Lever Bezel: Installation

All vehicles

NOTE: Selector lever shown removed for clarity.

Install the PRNDL bezel.
- Make sure that the 3 locking tabs are locked in place.

  Fig 1: Locating Tabs
  Courtesy of FORD MOTOR CO.

Vehicles equipped with LED illumination

Connect the LED electrical connector.

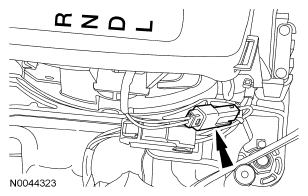

Fig 2: Locating LED Electrical Connector
Courtesy of FORD MOTOR CO.

Vehicles equipped with a light bulb

Connect the light to the PRNDL bezel.

Fig 3: Locating Light From PRNDL Bezel
Courtesy of FORD MOTOR CO.

All vehicles

Install the lower shift knob bezel.

Fig 4: Locating Lower Shift Knob Bezel
Courtesy of FORD MOTOR CO.
Install the shift knob and the bolts.

Fig 5: Locating Bolts
Courtesy of FORD MOTOR CO.
Slide the lower shift knob bezel up and snap it into place.

Fig 6: Sliding Lower Shift Knob Bezel Up
Courtesy of FORD MOTOR CO.
Connect the power outlet electrical connector.

Fig 7: Locating Power Outlet Electrical Connector
Courtesy of FORD MOTOR CO.
Install the power outlet trim panel in the center console.

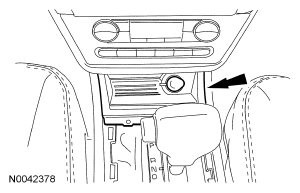

Fig 8: Locating Power Outlet Trim Panel
Courtesy of FORD MOTOR CO.
Install the upper console panel.

Fig 9: Locating Upper Console Panel
Courtesy of FORD MOTOR CO.
Install the PRNDL trim ring.

Fig 10: Locating PRNDL Trim Ring
Courtesy of FORD MOTOR CO.
