Selector Lever Bezel: Removal

All vehicles

Remove the PRNDL trim ring.

Fig 1: Locating PRNDL Trim Ring

Courtesy of FORD MOTOR CO.

Remove the upper console panel.

Fig 2: Locating Upper Console Panel

Courtesy of FORD MOTOR CO.

Remove the power outlet trim panel from the center console.

Fig 3: Locating Power Outlet Trim Panel

Courtesy of FORD MOTOR CO.

Disconnect the electrical connector and remove the power outlet trim panel.

Fig 4: Locating Electrical Connector

Courtesy of FORD MOTOR CO.

Slide the lower shift knob bezel downward.

Fig 5: Sliding Lower Shift Knob Bezel Downward

Courtesy of FORD MOTOR CO.

Remove the 2 bolts and remove the selector lever knob.

Fig 6: Locating Bolts

Courtesy of FORD MOTOR CO.

Remove the lower shift knob bezel.

Fig 7: Locating Lower Shift Knob Bezel

Courtesy of FORD MOTOR CO.

Vehicles equipped with a light bulb

Disconnect the light from the PRNDL bezel.

Fig 8: Locating Light From PRNDL Bezel

Courtesy of FORD MOTOR CO.

Vehicles equipped with LED illumination

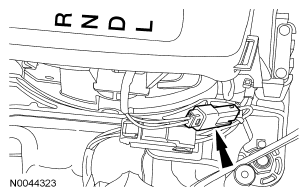

Disconnect the LED electrical connector.

Fig 9: Locating LED Electrical Connector

Courtesy of FORD MOTOR CO.

All vehicles

Fig 10: Locating Tabs

Courtesy of FORD MOTOR CO.
