Accelerator Pedal and Bracket: Notes

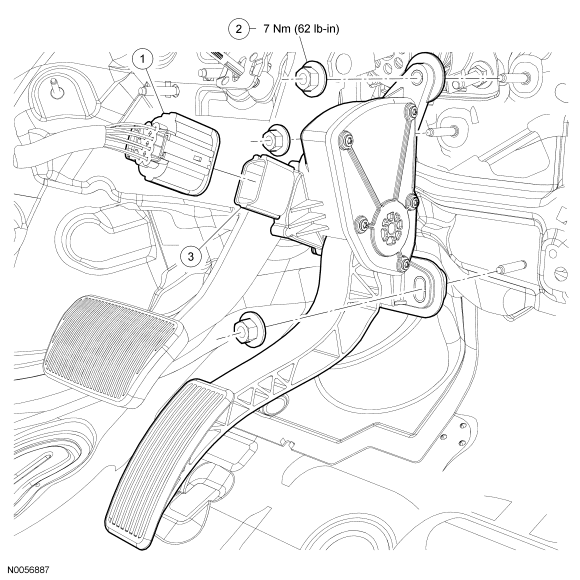

Fig 1: Exploded View Of Accelerator Pedal & Bracket With Torque Specification
GF0032041Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Accelerator pedal sensor electrical connector (part of 14290)
2 90907 Accelerator pedal bracket nut (3 required)
3 9F836 Accelerator pedal and bracket
