Accelerator Pedal: Notes

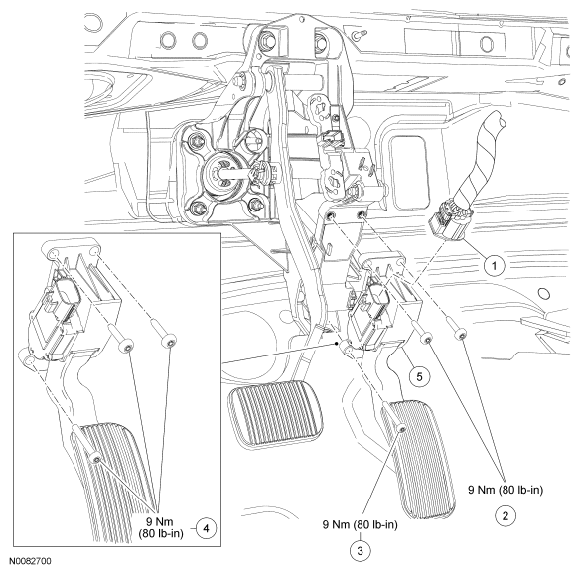

PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Accelerator pedal sensor electrical connector |
| 2 | W506015 | Fixed accelerator pedal and sensor upper bolts (2 required) |
| 3 | W506104 | Fixed accelerator pedal and sensor lower bolt |
| 4 | W506015 | Adjustable accelerator pedal and sensor bolts (3 required) |
| 5 | 9F836 | Accelerator pedal and sensor assembly (fixed pedal assembly shown, adjustable pedal assembly similar) |
