Accelerator Pedal: Notes

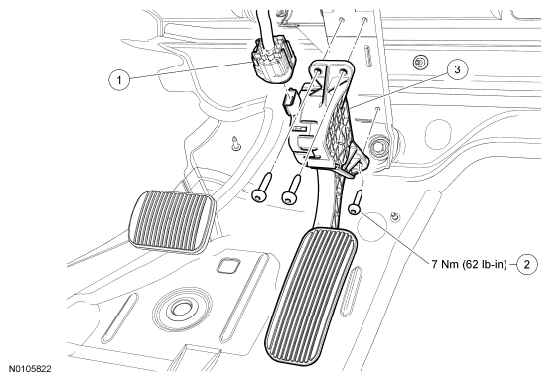

Fig 1: Accelerator Pedal Replacement Components With Torque Specifications
G06261592Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Accelerator pedal sensor electrical connector
2 W714332 Accelerator pedal and sensor bolt (3 required)
3 9F836 Accelerator pedal and sensor assembly
