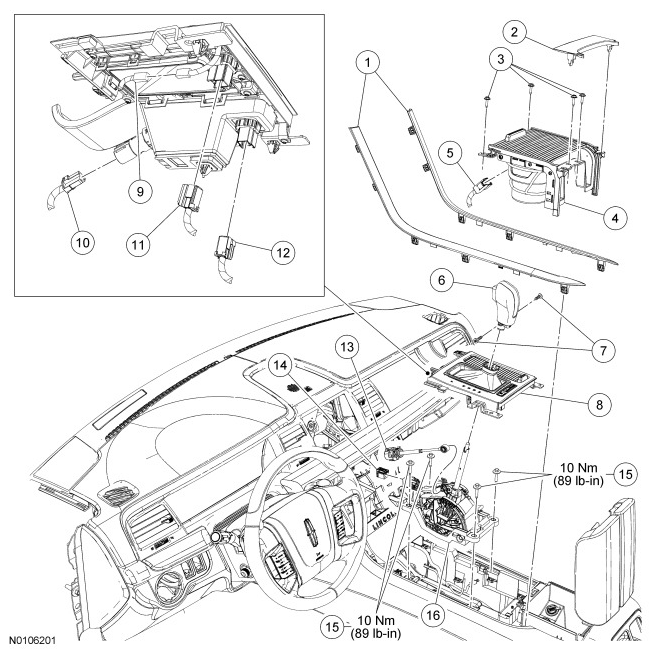

| 1 |
54061A16 |
Center console side trim panels |
| 2 |
5404569 |
Cup holder lid trim panel |
| 3 |
W707628-S424 |
Cup holder retaining screws |
| 4 |
5406010 |
Cup holder |
| 5 |
5413560 |
Cup holder illumination electrical connector |
| 6 |
7L010 |
Selector lever knob |
| 7 |
W790088-S901 |
Selector lever knob screws (2 required) |
| 8 |
54045A76 |
Selector lever bezel |
| 9 |
14489 |
PRNDL illumination electrical connector |
| 10 |
14489 |
Power outlet electrical connector |
| 11 |
14489 |
Auto PARK button electrical connector |
| 12 |
14489 |
Storage compartment illumination electrical connector |
| 13 |
7E395 |
Selector lever cable |
| 14 |
14489 |
Selector lever electrical connector |
| 15 |
W503926-S424 |
Selector lever bolts (4 required) |
| 16 |
7210 |
Selector lever |
