Steering Column Shroud: Notes

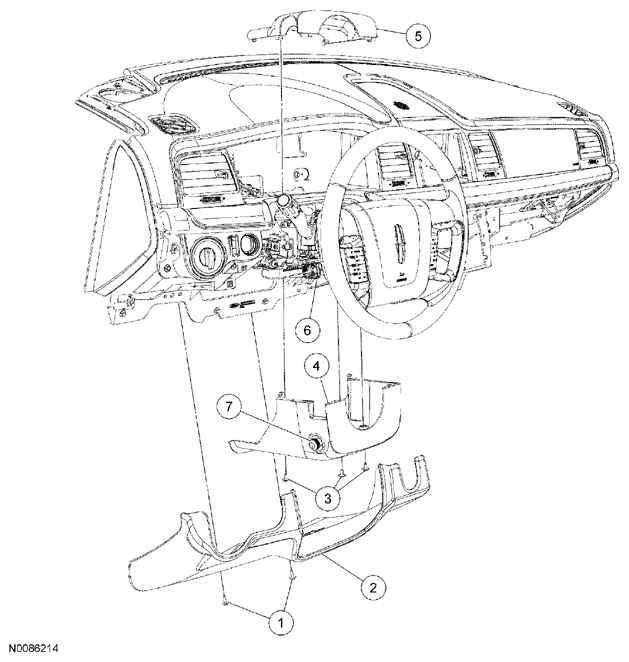

Fig 1: Identifying Steering Column Shroud Related Components
G07813888Courtesy of FORD MOTOR CO.
Item Part Number Description
1 N808453 Steering column opening trim panel screws (2 required)
2 044F08 Steering column opening trim panel
3 N713507 Steering column shroud screws (3 required)
4 3533 Lower steering column shroud
5 3530 Upper steering column shroud
6 - Steering column control switch electrical connector (part of 14401)
7 3B504 Steering column control switch
