Throttle Position (TP) Sensor: Installation

NOTE: When installing the new TP sensor, make sure that the radial locator tab on the TP sensor is aligned with the radial locator hole on the ETB.

NOTE: Do not use power tools.

Install the new TP sensor.
- Using hand tools, install the 2 new bolts.
  - Tighten to 3 Nm (27 lb-in).

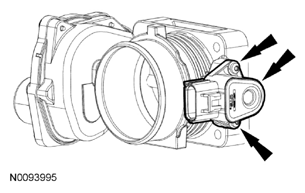

    Fig 1: Locating TP Sensor And Bolts
    Courtesy of FORD MOTOR CO.
Connect the TP sensor electrical connector.

Fig 2: Locating Throttle Position (TP) Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Install the CAC outlet pipe. For additional information, refer to Intake Air System Components - Exploded View in INTAKE AIR DISTRIBUTION & FILTERING .
