Steering Wheel: Notes

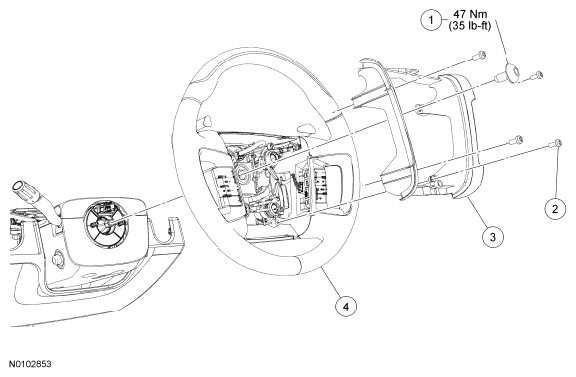

Fig 1: Exploded View Of Steering Wheel Components With Torque Specifications
G06284850Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W708887 Steering wheel bolt
2 W790212 Steering wheel bezel screw (4 required)
3 3F910 Steering wheel bezel
4 3K519 Steering wheel
