Selector Lever Bezel: Installation

  1. Position the selector lever boot on the selector lever bezel and install the 6 screws.
    Fig 1: Locating Selector Lever Boot Screws
    G06283551Courtesy of FORD MOTOR CO.
  2. Install the selector lever boot retainer on the selector lever bezel and latch the 7 tabs.
    Fig 2: Locating Selector Lever Boot Retainer Tabs
    G06283550Courtesy of FORD MOTOR CO.
  3. Install the selector lever bezel. Connect the selector lever bezel electrical connector. Install the selector lever bezel on the center console and install the 2 screws.

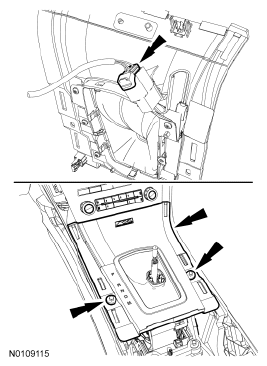

    Fig 3: Locating Selector Lever Bezel Electrical Connector And Screws
    G06283554Courtesy of FORD MOTOR CO.
  4. Install the 2 center console side trim panels.
    Fig 4: Locating Center Console Side Trim Panels
    G06283548Courtesy of FORD MOTOR CO.
  5. Install the cupholder. Connect the electrical connector and install the cupholder in the center console.
    Fig 5: Locating Cupholder And Electrical Connector
    G06283556Courtesy of FORD MOTOR CO.
  6. If equipped, install the rear floor console trim cover. Connect the electrical connector and install the trim cover on the center console.

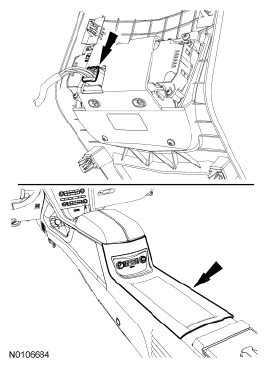

    Fig 6: Locating Electrical Connector And Rear Floor Console Trim Cover On Center Console
    G06283557Courtesy of FORD MOTOR CO.
  7. Install the selector lever knob. For additional information, refer to SELECTOR LEVER KNOB .
