Selector Lever Cable: Notes

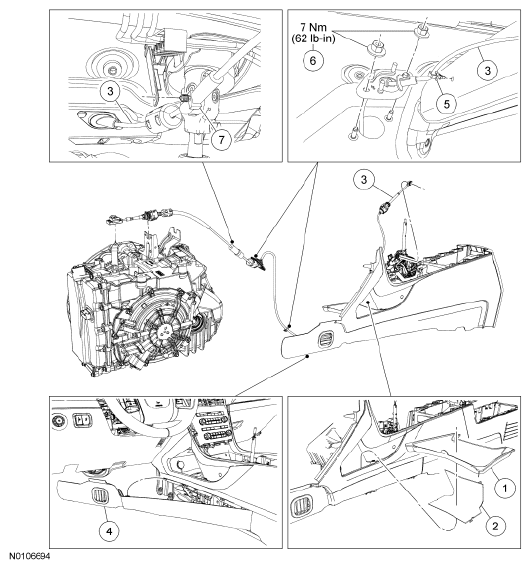

Fig 1: Selector Lever Cable Removal And Installation With Torque Specifications
G06283491Courtesy of FORD MOTOR CO.
Item Part Number Description
1 74045M97 Center console storage tray
2 74045M96 Selector lever cable access panel
3 7E395 Selector lever cable
4 74045M11 LH center console lower trim panel
5 A9718 Selector lever cable retainer
6 N804795 Selector lever cable grommet retaining nuts
7 S8019 Selector lever cable retainer
