Selector Lever: Notes

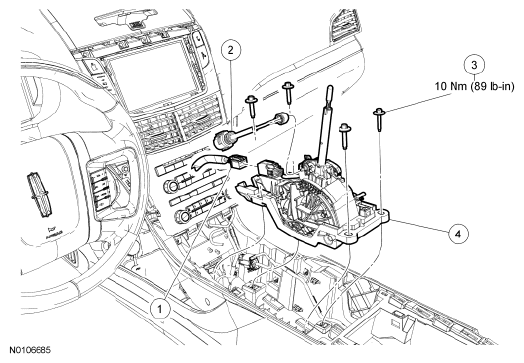

Fig 1: Selector Lever Replacement Components With Torque Specifications
G06283531Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7E395 Selector lever cable
2 14489 Selector lever electrical connector
3 W503926-S424 Selector lever bolt (4 required)
4 7210 Selector lever
