Accelerator Pedal: Notes

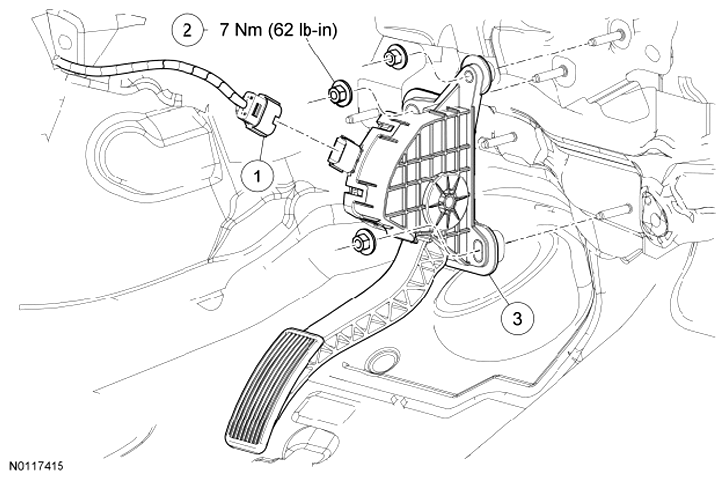

Fig 1: Accelerator Pedal Replacement Components With Torque Specifications
G07402322Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Accelerator pedal sensor electrical connector (part of 14290)
2 90907 Accelerator pedal nut (3 required)
3 9F836 Accelerator pedal and sensor assembly
