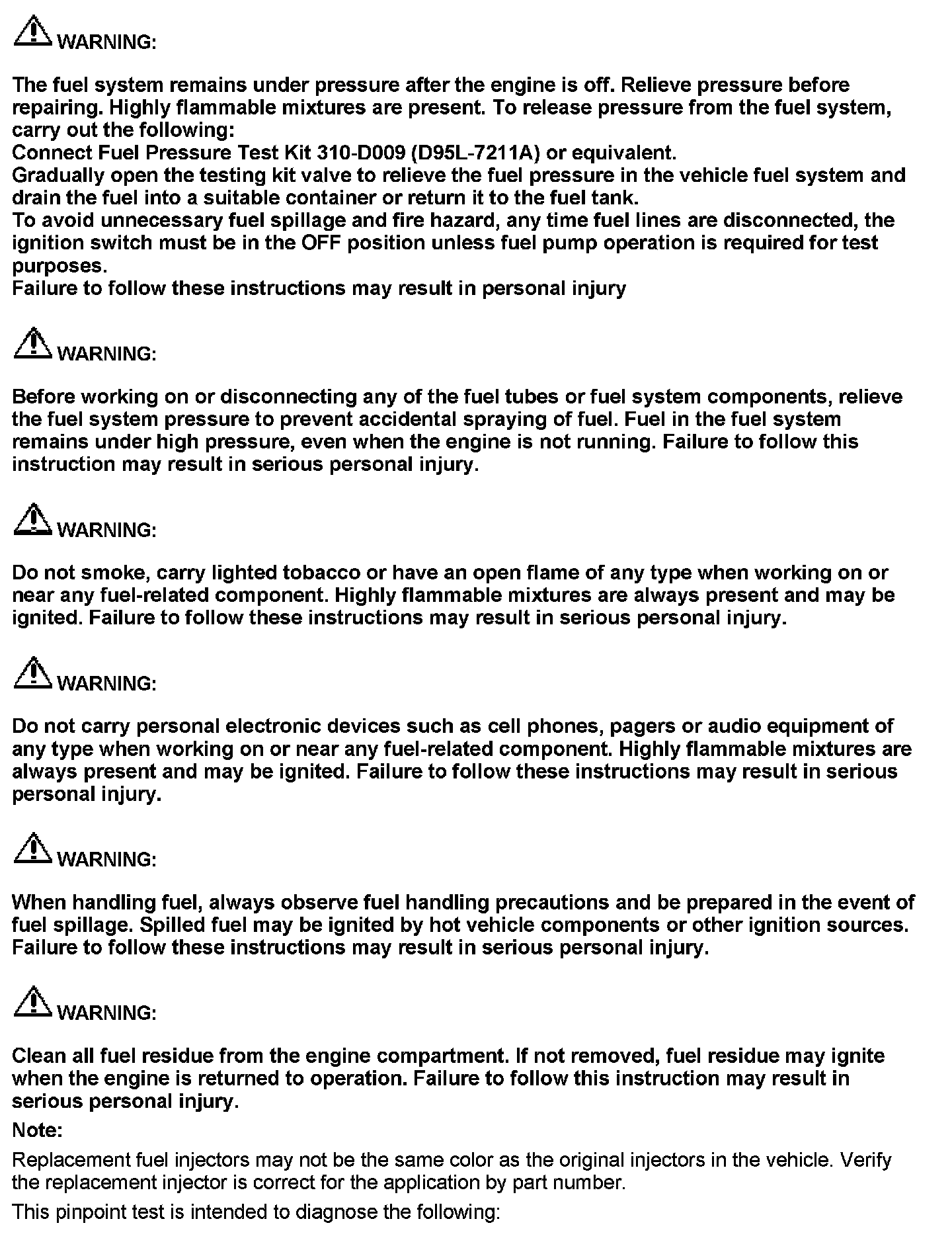

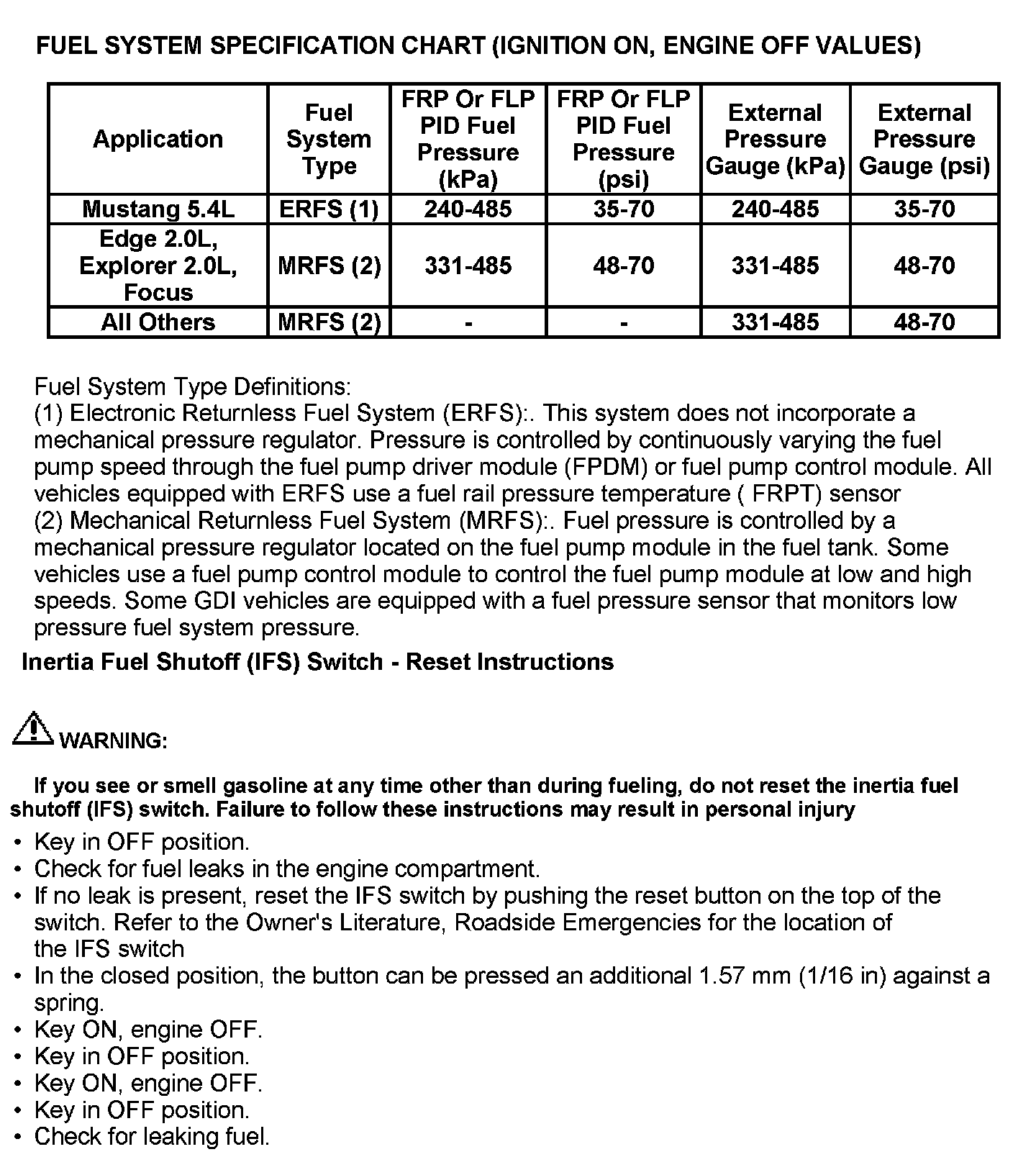

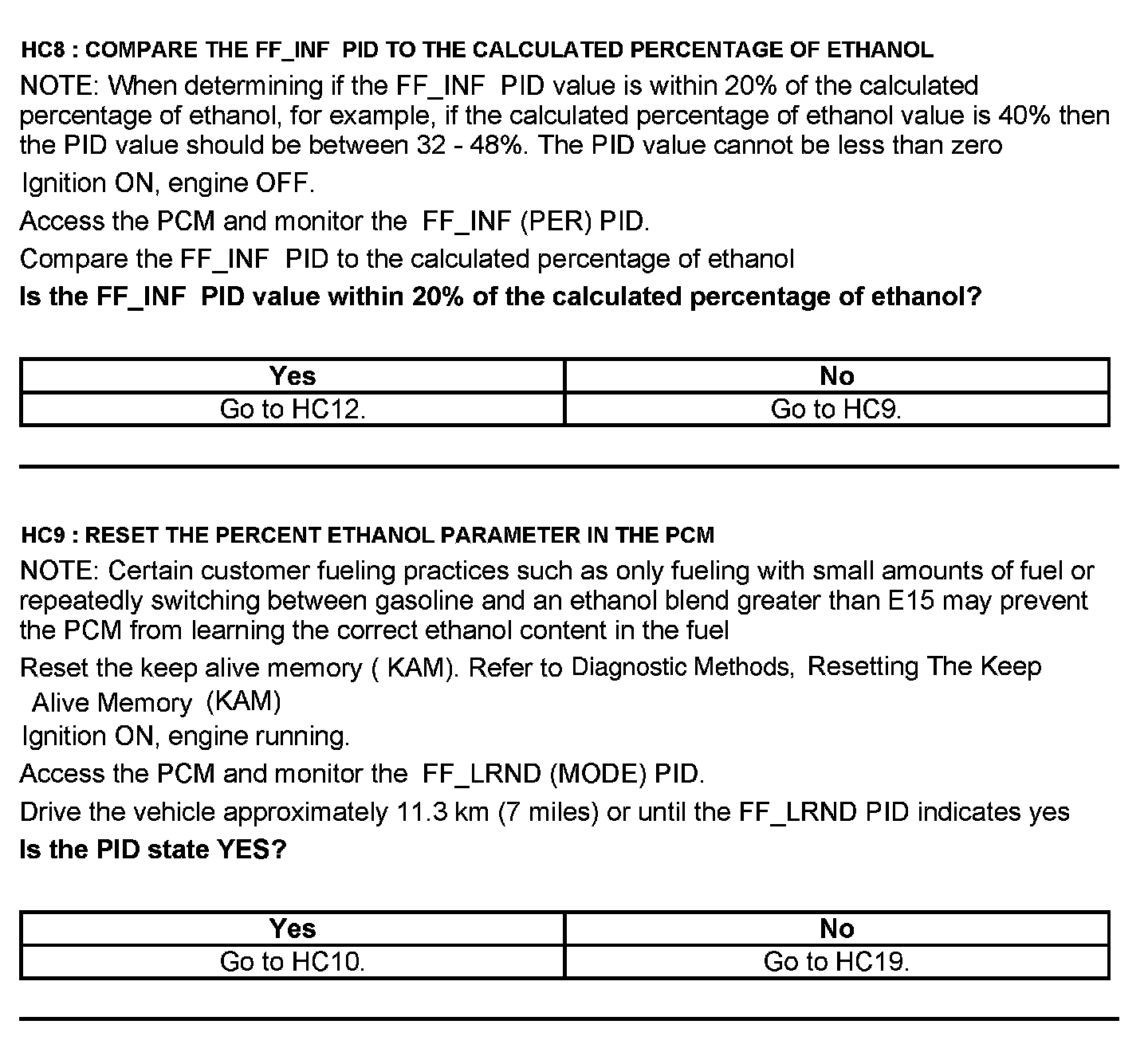

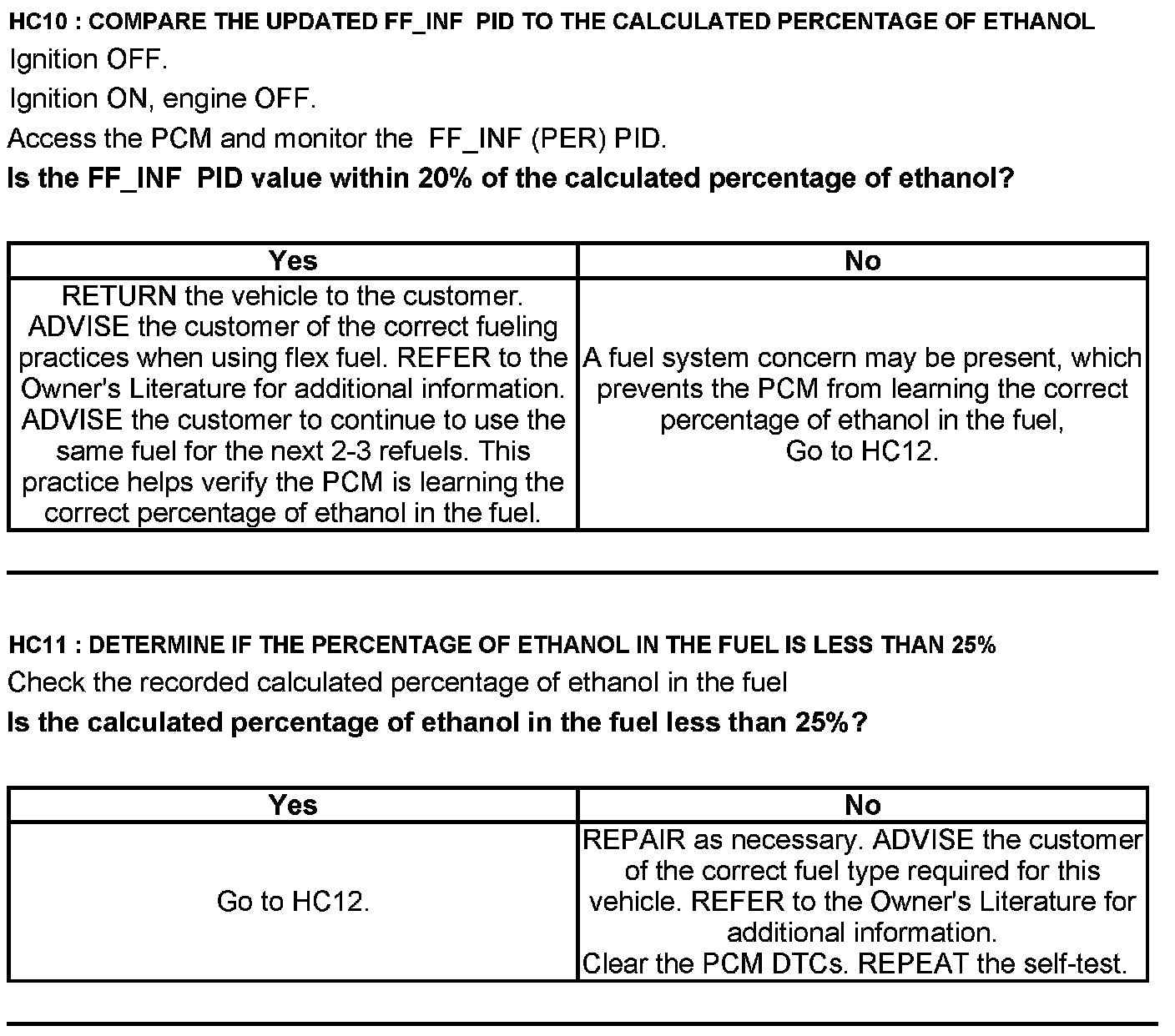

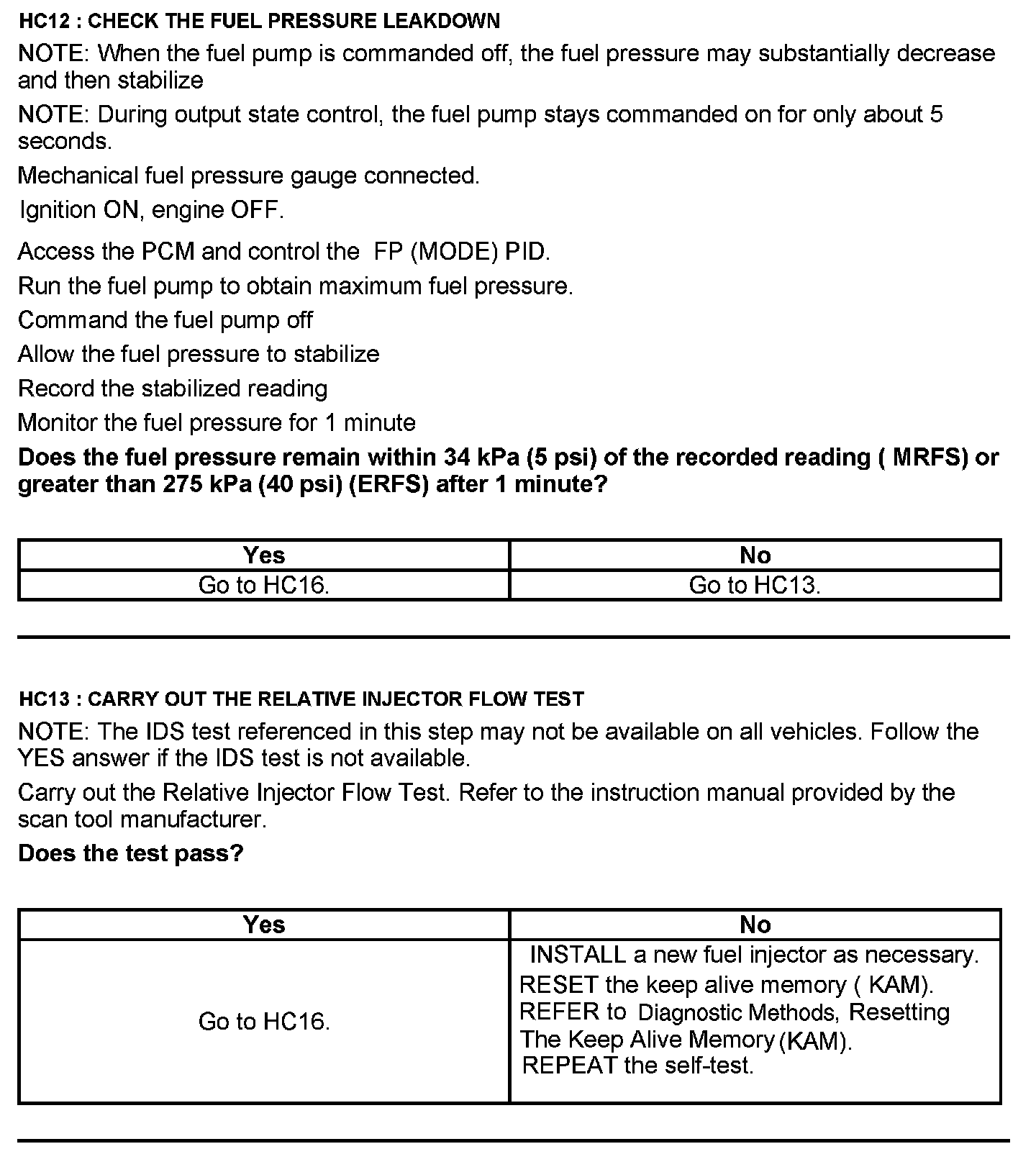

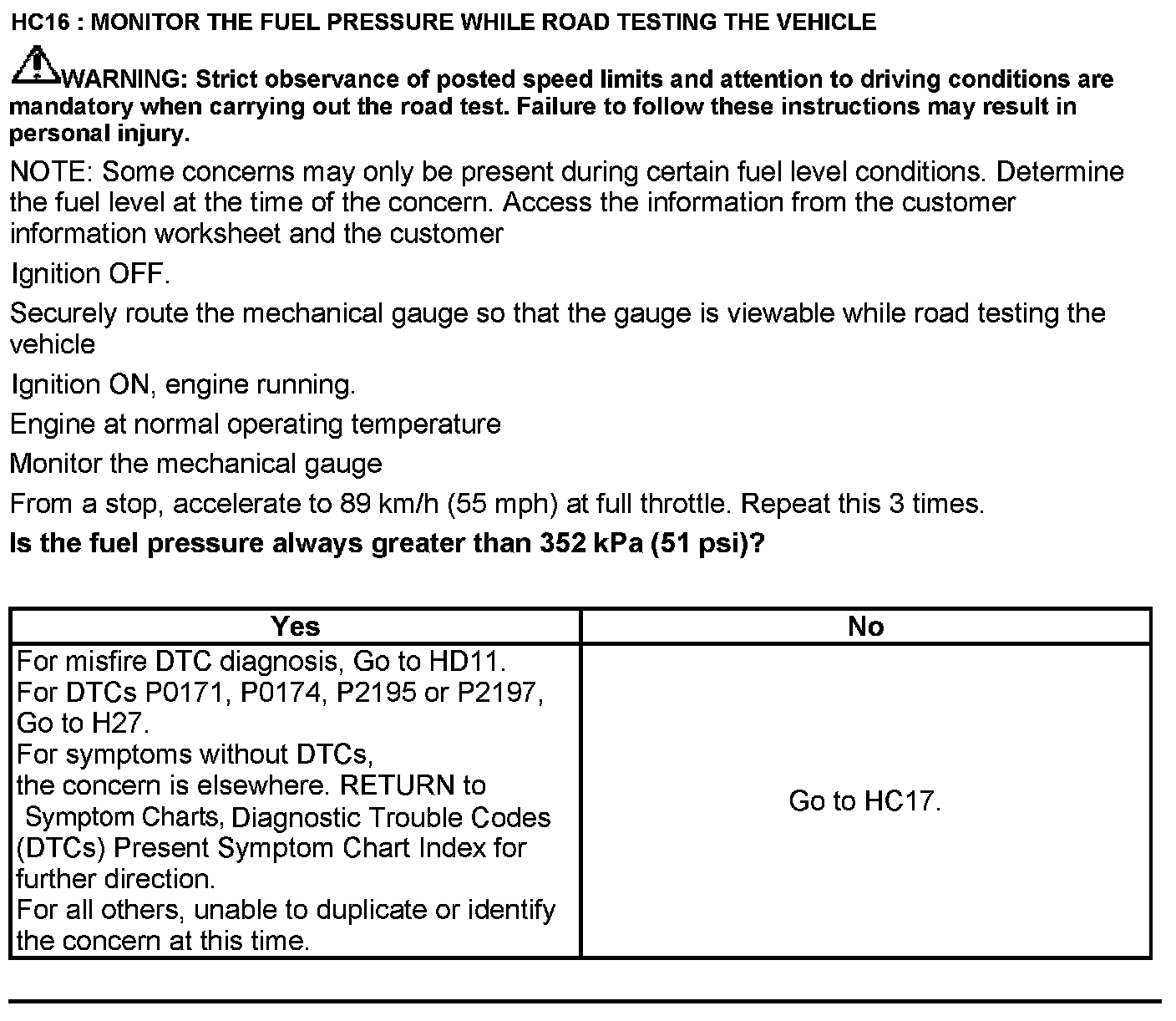

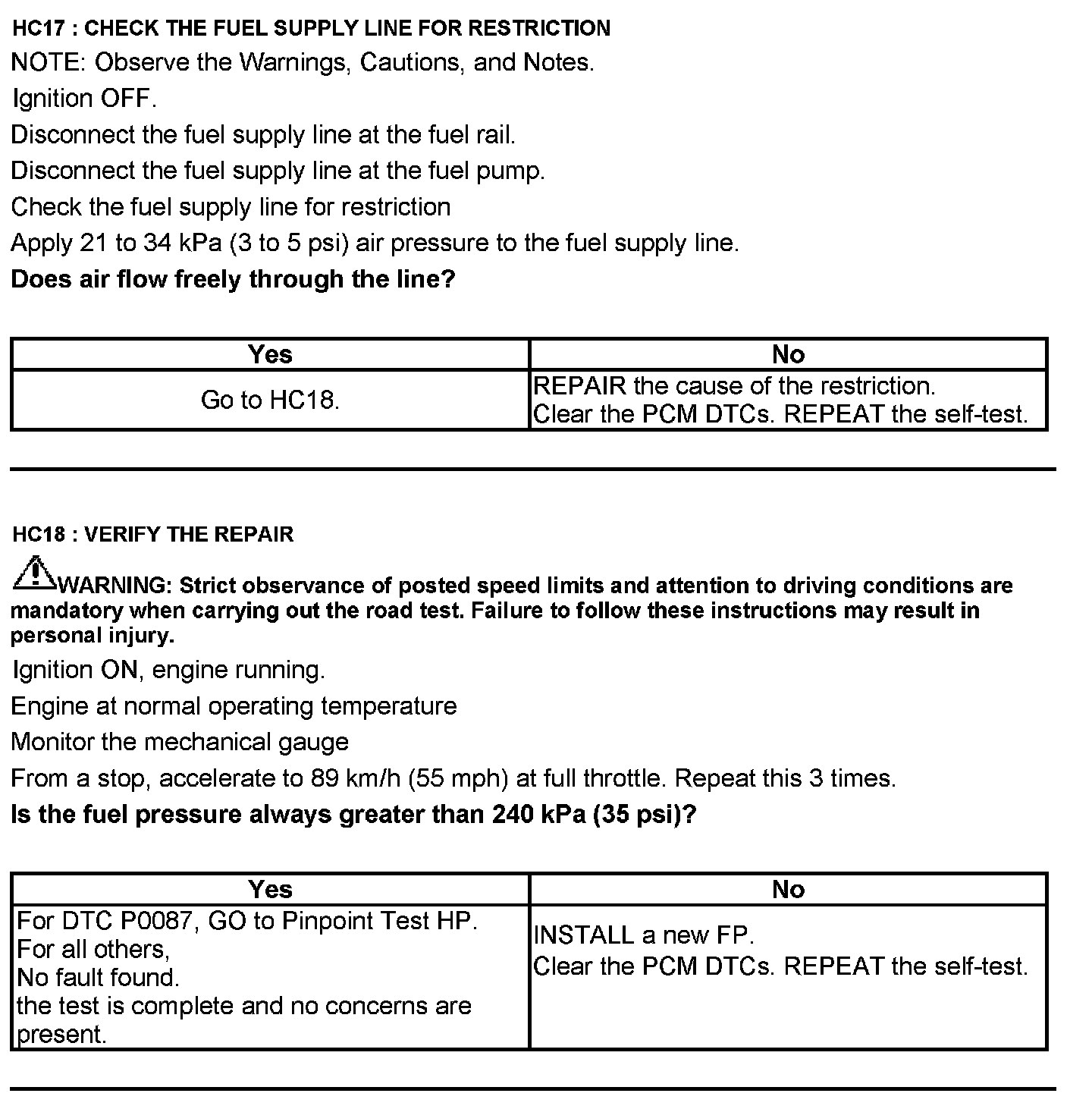

Vehicles That Do Not Start

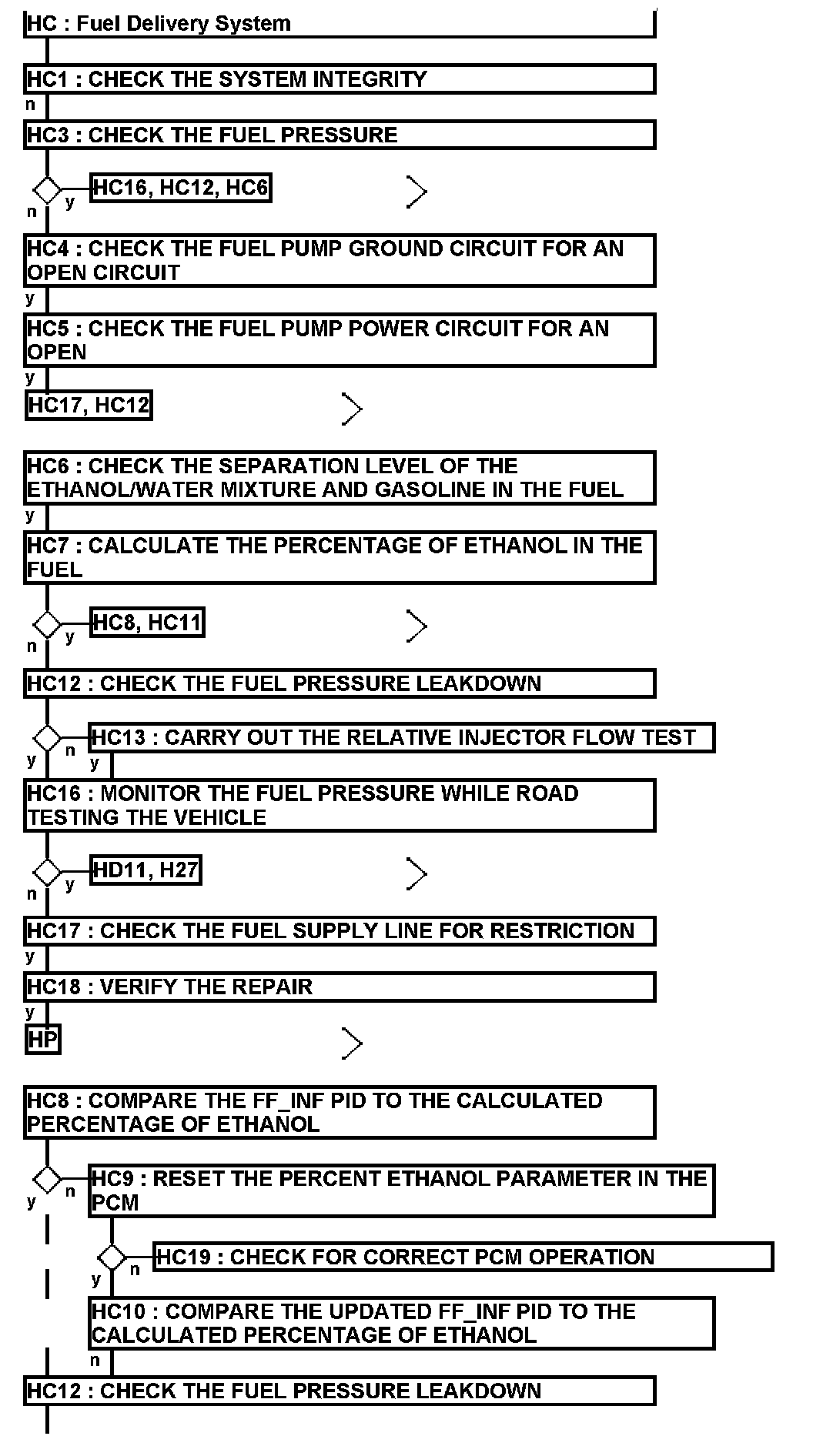

Fuel Delivery System - Vehicles that don't start

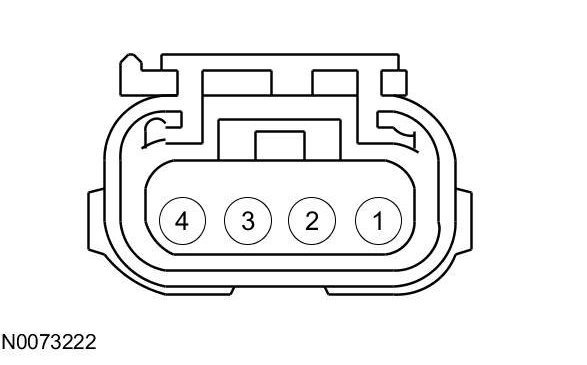

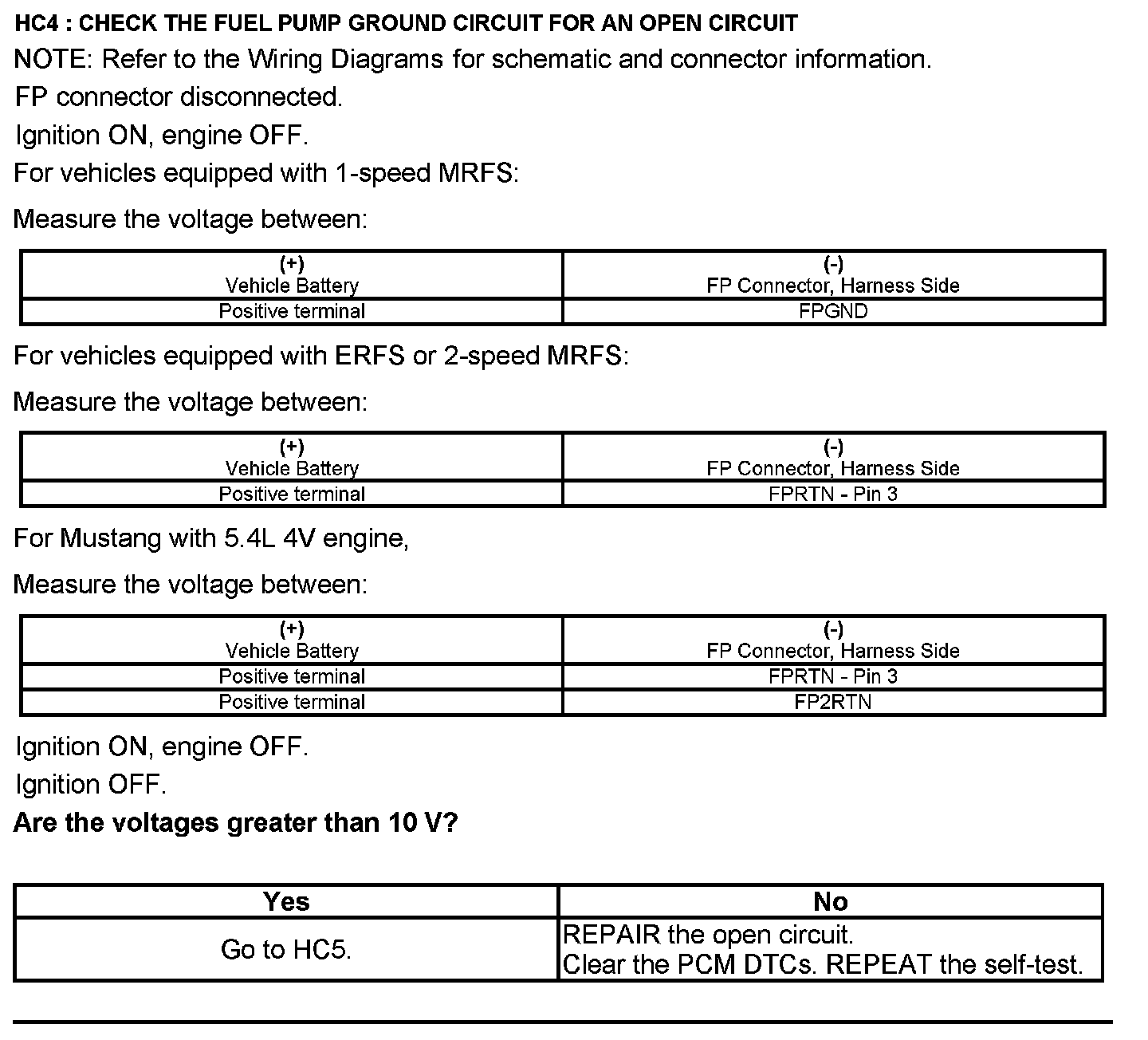

Fuel Pump (FP) Connector





Harness Side
