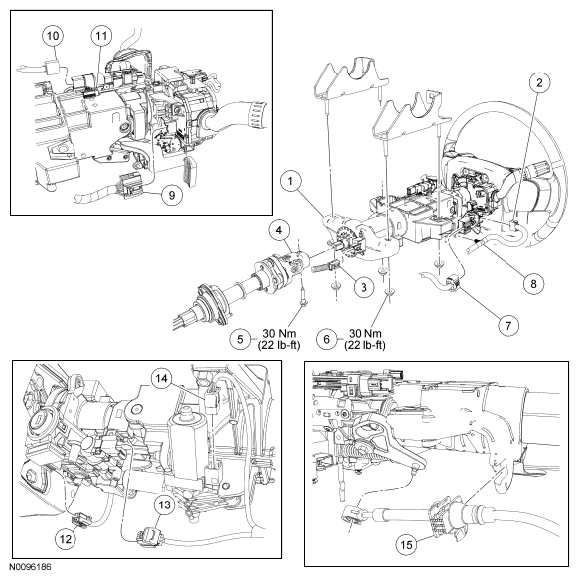

| 1 |
3C529 |
Steering column |
| 2 |
- |
Clockspring electrical connector (part of 14401) |
| 3 |
- |
Steering wheel rotation sensor electrical connector (part of 14489) |
| 4 |
3E751 |
Upper steering column shaft |
| 5 |
N808684 |
Upper steering column shaft-to-steering column bolt |
| 6 |
N806423 |
Steering column nut (4 required) |
| 7 |
- |
Ignition switch electrical connector (part of 14401) |
| 8 |
- |
Wiring harness retainer (part of 14401) |
| 9 |
- |
Multifunction switch electrical connector (part of 14401) |
| 10 |
- |
Brake Shift Interlock Actuator (BSIA) electrical connector (part of 14401) (column shift only) |
| 11 |
- |
Overdrive cancel switch electrical connector (part of 14401) (column shift only) |
| 12 |
- |
Passive Anti-Theft System (PATS) electrical connector (part of 14401) |
| 13 |
- |
Key release interlock actuator electrical connector (part of 14401) |
| 14 |
- |
Power tilt motor electrical connector (part of 14401) (power tilt column only) |
| 15 |
7E395 |
Selector lever cable (column shift only) |
