Brake Shift Interlock Override

NOTE: If it is necessary to use the override procedure to move the selector lever out of the PARK position, it is possible that a fuse has blown. GO to PINPOINT TEST A .

This vehicle is equipped with a brake shift interlock feature that prevents the selector lever from being moved out of PARK when the ignition is in the ON position unless the brake pedal is pressed.

If the selector lever cannot be moved out of the PARK position when the ignition is in the ON position and the brake pedal is pressed:

  1. Apply the parking brake and remove the ignition key.
  2. G08662739

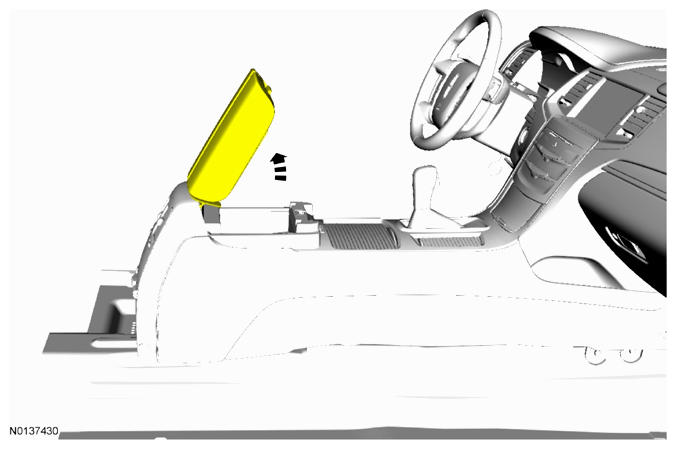

  3. G08718021

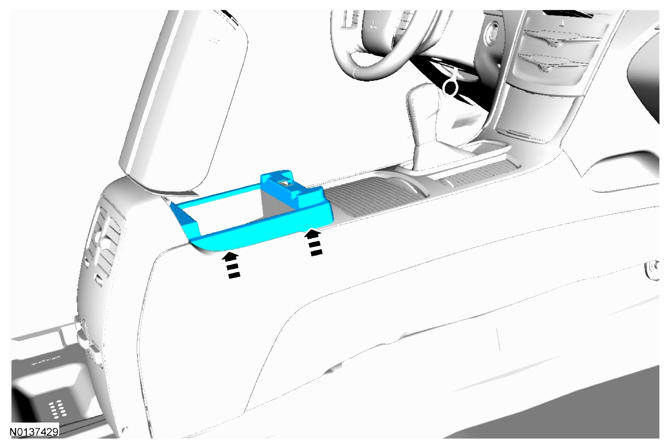

  4. G08718022

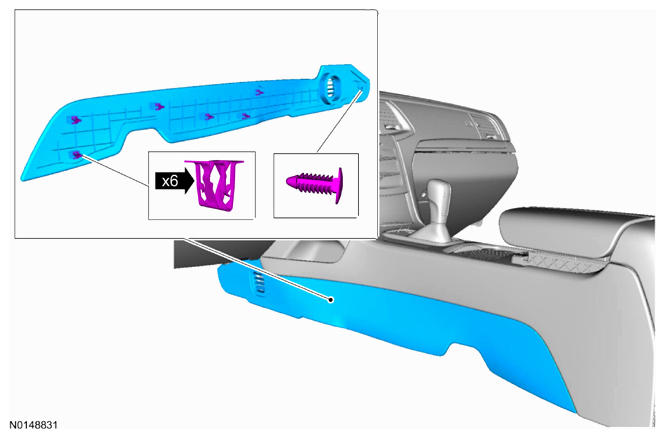

  5. NOTE: When removing the floor console lower trim panel, place a piece of cardboard between the floor console lower and upper trim panels to protect the floor console upper trim panel from being damaged.
    G08718023

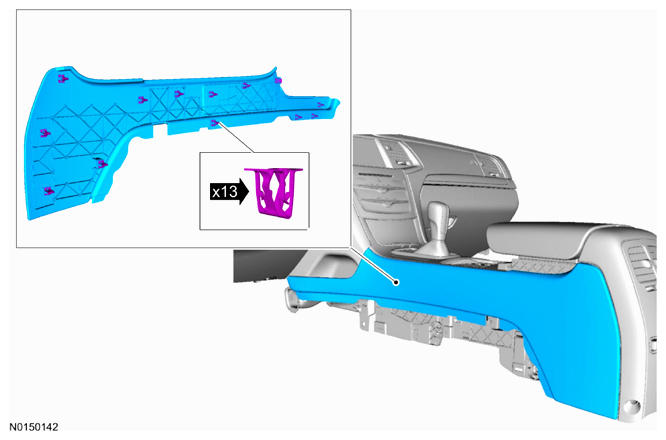

  6. G08718024

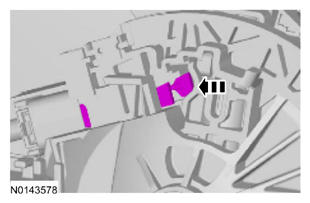

  7. Push the brake shift interlock override mechanism on the selector lever forward, apply the brake, press the button on the selector lever and move the selector lever into NEUTRAL.
    G08718025
  8. To assemble, reverse the disassembly procedure.
  9. Start the vehicle.
