Selector Lever: Installation

    • Tighten to 10 Nm (89 lb-in).
      G08718036
  2. G08718035

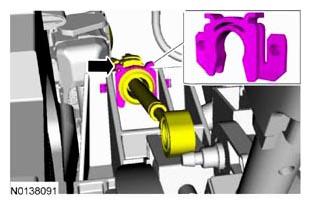

  3. NOTE: When installing the selector lever cable, make sure that the selector lever cable locking tabs are locked in place. Press the selector lever cable into the selector lever housing and listen for the selector lever cable retainer to click in place. Pull back on the selector lever cable to make sure that the selector lever is locked into the selector lever housing.
    G08662803

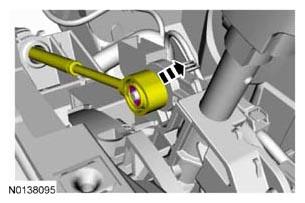

  4. G08662809
  5. Install the selector lever bezel. Refer to SELECTOR LEVER BEZEL .
  6. Adjust the selector lever cable when a new selector lever is installed. Refer to SELECTOR LEVER CABLE ADJUSTMENT .
