Charging System: Notes

Overview

The generator is driven by the FEAD belt. When the engine is started, the generator begins to generate AC which is internally converted to DC. The DC is controlled by the voltage regulator (located on the rear of the generator) and supplied to the battery. The PCM controls the voltage regulation setpoint, working with the generator internal voltage regulator over the control and communication circuits.

This vehicle is equipped with load shed strategy. With the engine off, the PCM monitors the battery state of charge using the battery current sensor attached to the negative battery cable. With the engine running, the PCM monitors system voltage to the BCM and PSCM.

The PCM monitors the generator current using the generator current sensor attached to the generator B+ battery cable. The information supplied to the PCM from the generator current sensor is used by the PCM to adjust the engine idle stability and torque control.

System Operation

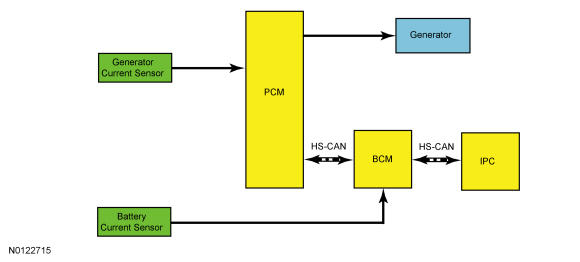

System Diagram

Courtesy of FORD MOTOR COMPANY

Network Message Chart

Broadcast Message	Originating Module	Message Purpose
Alternator fault	PCM	The PCM has detected a fault in the generator or generator circuits.

Network Message Chart

Broadcast Message	Originating Module	Message Purpose
Power System Status	BCM	Reports any generator/charging system faults. Used for charging system fault indicator.
Load Shed Request	BCM	Indicates what level of load shed is commanded.

Network Message Chart

Broadcast Message	Originating Module	Message Purpose
Load Shed Request	BCM	Indicates what level of load shed is commanded.

Charging System

The PCM -controlled, or Smart Charge charging system determines the optimal voltage setpoint for the charging system and communicates this information to the voltage regulator. The Smart Charge charging system is designed to set a DTC any time a charging system fault is present. All of the DTCs can set continuous faults, but not all DTCs set as on-demand faults.

This system uses 2 communication lines between the PCM and the generator/voltage regulator. Both of these communication lines use PWM. The generator communication (GENCOM) line communicates the desired setpoint from the PCM to the voltage regulator. The generator monitor (GENMON) line communicates the generator load and error conditions to the PCM. The GENCOM command is only sent by the PCM when it is necessary to adjust the voltage setpoint. If the setpoint does not need to be changed, several seconds may elapse between PCM GENCOM commands. This normal operation appears in the PID as occasional bursts of pulse-width commands. The third pin on the voltage regulator, the "A" circuit pin, is a circuit dedicated to monitor or sense battery voltage.

The PCM simultaneously controls and monitors the output of the generator. When the current consumption is high or the battery is discharged, the PCM raises engine speed as needed to increase generator output. The generator charges the battery and at the same time supplies power for all required electrical loads. The battery is more effectively charged with a higher voltage when the battery is cold and a lower voltage when the battery is warm. The PCM uses a signal from the IAT sensor to adjust the charging voltage according to the battery temperature. The PCM also uses other inputs to control the charging system voltage such as the VSS and engine coolant temperature. The voltage setpoint is calculated by the PCM and communicated to the voltage regulator by the GENCOM circuit based on the needs of the vehicle and the conditions.

The PCM turns off the generator during cranking to reduce the generator load and improve cranking speed. Once the engine starts, the PCM slowly increases generator output to the desired voltage.

The PCM reports any charging system faults and sends a message through the HS-CAN to the BCM. The BCM controls the charging system warning indicator by sending a message over the MS-CAN to the IPC. The IPC then controls charging system warning indication based on the message from the PCM through the BCM. The status of the PCM charging system warning indicator and/or message is confirmed by viewing PCM PID generator fault indicator lamp (GENFIL). Any charging system fault detected by the PCM results in 1 or more DTCs being set and the PID GENFIL having a status of On. If equipped with a charging system warning indicator, the IPC turns the indicator on or off. If equipped with a message center, the IPC displays a CHECK CHARGING SYSTEM message. In some instances, the CHECK CHARGING SYSTEM message may not display if the ignition is ON and the engine is off.

Under certain circumstances, the charging system may have a concern, but still keeps the battery charged and the vehicle running. GENCOM normally initiates charging, but the generator may charge with a fault in this circuit. If the engine operates at more than 2, 000 Revolutions Per Minute (RPM) momentarily, the generator may self-excite or start charging on its own. The charging system warning indicator is illuminated and/or CHECK CHARGING SYSTEM message is displayed, and the generator operates in a default mode (approximately 13.5 volts) until the engine is turned off. When the engine is restarted and the engine operates at more than 2, 000 Revolutions Per Minute (RPM) momentarily, the generator may again self-excite and again the charging system warning indicator is illuminated and/or CHECK CHARGING SYSTEM message is displayed.

Electrical Energy Management

NOTE: When any vehicle module is being programmed, connect an external battery charger to make sure the module programming is completed without the interruption due to the load shedding feature becoming active. The external battery charger must maintain a system voltage above 13 volts. This may require a charger setting higher than the lowest charge setting. The external battery charger negative connection must be made to an engine or vehicle chassis ground and not the negative battery terminal. If the connection is to the negative battery terminal, load shedding cannot be prevented from being invoked and module programming may be corrupted. After charging has begun, start the engine to clear any load shed states and then turn the engine off and proceed with programming.

This vehicle is equipped with load shed strategy. The BCM monitors the battery state of charge using the battery current sensor attached to the negative battery cable and the system voltage supplied to the BCM during 8 continuous hours of vehicle sleep time (key off with doors closed).

To maintain correct operation of the load shed system, ground any electrical devices or equipment to the chassis ground and not the negative battery terminal. A connection to the negative battery terminal may cause an inaccurate measurement of the battery state of charge and may cause incorrect load shed system operation.

Battery State of Charge

The BCM uses the battery current sensor to keep track of the battery state of charge. The battery current sensor is a Hall-effect sensor attached to the battery ground cable. During a drive cycle the Electrical Energy Management software will adjust the battery state of charge by monitoring the charge and discharge current and adjusting the state of charge up during charging, and down during discharge. During rest periods (key off with no electrical loads) when the vehicle enters sleep mode, the battery voltage is sampled to recalibrate the State of Charge. The BCM automatically executes this recalibration anytime the vehicle enters sleep mode and when the total vehicle current draw is below 300mA. It takes 8 hours in the sleep mode to recalibrate the battery state of charge to high accuracy. If the system draw does not allow the battery state of charge recalibration over the previous 7 to 10 days the State of Charge quality factor will change to flag this and some Electrical Energy Management Functions which rely on the accuracy of the battery state of charge may be temporarily turned off until a recalibration takes place.

Engine Off Load Shed

When the engine is off, and the BCM determines the battery state of charge is below 40% or 10% of the charge has been drained or 45 minutes have elapsed, a load shed message is sent over the Controller Area Network(CAN). This message turns off the audio/navigation system to save the remaining battery charge. Under this condition, the Front Display Interface Module(FDIM) displays SYS OFF TO SAVE BATT (without navigation) or BATTERY SAVER - SYSTEM OFF PLEASE START THE ENGINE (with navigation) to notify the driver that battery protection actions are active.

Engine off load shed occurs when the engine is not running, and the ignition is in the ACC or RUN position. To clear the load shed state, restart the engine.

NOTE: To maintain correct operation of the load shed system, any electrical devices or equipment must be grounded to the engine or chassis ground and not the negative battery terminal. A connection to the negative battery terminal may cause an inaccurate measurement of the battery state of charge and may cause incorrect load shed system operation.

When the ignition is in the RUN position and load shed occurs, the IPC message center displays either TURN POWER OFF TO SAVE BATT (base message center) or TURN POWER OFF TO SAVE BATTERY (optional message center). The audio/navigation system will shut down after the message center displays it's warning.

If a fault occurs with the battery current sensor or circuit(s), the only engine off load shed strategy is a 45 minute timer. After 45 minutes have elapsed, the audio/navigation system turns off. To clear the load shed state, restart the engine.

Engine Running Load Shed

When the BCM and/or PSCM voltage is low, with the engine running, a message is sent by the BCM to either minimize or shut down the climate controlled seats, rear defrost, heated mirrors and Dual Automatic Temperature Control(DATC) blower motor to improve system voltage. Under this condition, the IPC message center displays either LOW BATTERY LESS FEATURES (base message center) or LOW BATTERY FEATURES TEMPORARILY TURNED OFF (optional message center) to notify the driver that battery protection actions are active.

There are 3 states of engine running load shed:

Load shed 1
Load shed 2 transient
Load shed 2 continuous

Battery Management System

Load Shed State	Entry Conditions	Impact to Features	Clear Conditions
Load shed 1	If vehicle speed is below 16 km/h (10 mph) If vehicle speed is above 16 km/h (10 mph) Voltage to the PSCM is less than 11.5 volts. PSCM measures current draw greater than 0 amps. Voltage to the BCM is less than 11.6 volts.	Climate controlled seats switch from HIGH to MED. If they are already at MED, the state does not change.	Voltage to the BCM is greater than 12.7 volts or the generator field duty cycle is less than 88%.
Load shed 2 transient	Voltage to the PSCM is less than 11.0 volts. PSCM measures current draw greater than 20 amps.	If equipped, climate controlled seats are disabled, but the indicators remain illuminated. If equipped, rear defrost and heated mirrors are disabled, but the indicator remains illuminated.	Voltage to the BCM is greater than 12.4 volts.
Load shed 2 continuous	Vehicle was in load shed 2 transient state for greater than 20 seconds.	If equipped, climate controlled seats are disabled and the indicators are off. If equipped, rear defrost and heated mirrors are disabled and the indicator is off. If equipped with DAMB, the blower motor is reduced to 50% speed and the blower speed indicator reflects this. If equipped, DC /AC inverter [Alternating Current (AC) powerpoint] is disabled. The base message center displays LOW BATTERY LESS FEATURES. The optional message center displays LOW BATTERY FEATURES TEMPORARILY TURNED OFF.	Voltage to the BCM is greater than 12.4 volts for more than 60 seconds.

Battery Charging

When charging the vehicle battery by connecting the charger to engine or chassis ground , the negative charger clamp must be connected to an unpainted chassis surface or a solid engine component such as a generator mount or engine lifting eye. In this instance, after charging, the BMS Reset is not required . Through this method of charging the BCM will update the battery state of charge during the charging process.

When charging the vehicle battery by connecting the charger to the negative battery terminal is necessary , such as when using a combination battery charger and battery tester/analyzer, like the GR 1 190 V3.0 Intelligent Diagnostic Charger, the BCM will not immediately update the battery state of charge. In this instance, after charging, you must carry out the Battery Monitoring System (BMS) Reset using the scan tool. This reset is needed for proper engine off load shedding and to prevent invoking of engine off load shedding earlier than normal.

If the reset is not carried out, when the battery is charged by connecting the charger to the negative battery terminal, it takes approximately 8 hours for the BCM to learn the new battery state of charge. During this 8 hour period, the vehicle must be undisturbed, with no doors opened or keyless entry button presses. If the vehicle is used before the BCM is allowed to learn the new battery state of charge, engine off load shedding can still occur and a message may be displayed.
