Accelerator Pedal: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

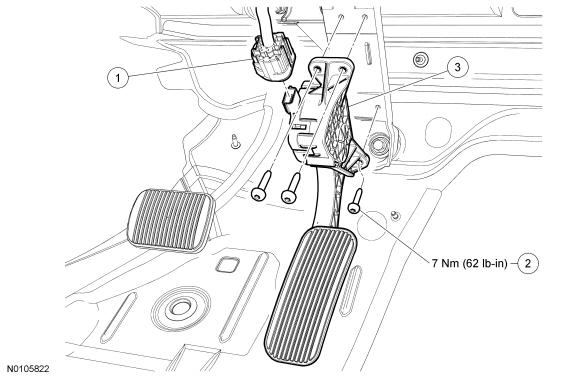

GFD89171Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 14A464 Accelerator pedal sensor electrical connector
2 W714332 Accelerator pedal and sensor bolt (3 required)
3 9F836 Accelerator pedal and sensor assembly
