Powertrain Control Module (PCM)
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
-
NOTE: PCM installation DOES NOT require new keys or programming of keys.
Retrieve the module configuration. Carry out the module configuration retrieval steps of the PMI procedure. For additional information, refer to MODULE CONFIGURATION SYSTEM .

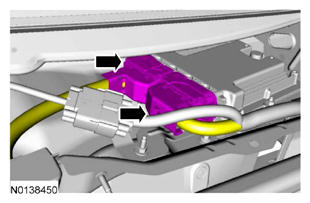

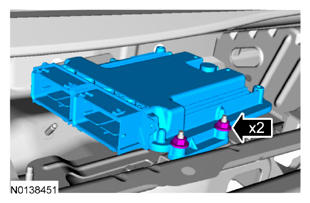

- Remove the cowl panel grille. For additional information, refer to BODY PANEL SYSTEM - FRONT END BODY PANELS .
Installation
- Install the cowl panel grille. For additional information, refer to BODY PANEL SYSTEM - FRONT END BODY PANELS .
-
NOTE: If the Programmable Module Installation (PMI) procedure was not successful in downloading the data from the vehicles original PCM, then the oil life data of the vehicle is lost. If this occurs, and the oil life cannot be determined through service history or customer interview, it is recommended the vehicle engine oil and filter be changed and the oil change minder reset.
Restore the module configuration. Carry out the module configuration restore steps of the Programmable Module Installation (PMI) procedure. For additional information, refer to MODULE CONFIGURATION SYSTEM .
- Reprogram the Passive Anti-Theft System (PATS). Carry out the Parameter Reset procedure. For additional information, refer to PASSIVE ANTI-THEFT SYSTEM (PATS) .
- After completing the repairs, use the scan tool to perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.
