Selector Lever Cable: Removal

6F35

1. 1.

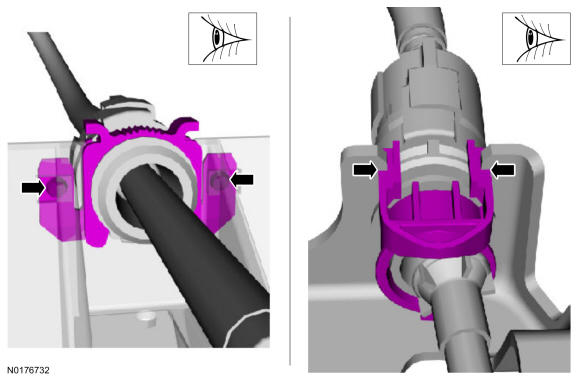

   Prior to replacing the selector lever cable for a no start or high shift effort concern, verify the selector lever cable to bracket clip is fully seated at the transmission and selector lever assembly. Unseated cables can cause selector lever cable binding and prevent the manual shaft from completely returning to the P (Park) position.

Courtesy of FORD MOTOR COMPANY

6F50/6F55

1. 2.

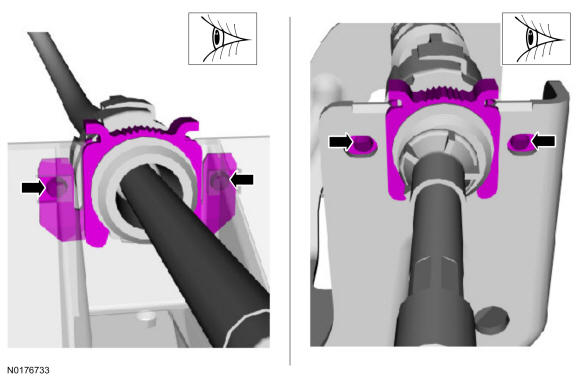

   Prior to replacing the selector lever cable for a no start or high shift effort concern, verify the selector lever cable to bracket clip is fully seated at the transmission and selector lever assembly. Unseated cables can cause selector lever cable binding and prevent the manual shaft from completely returning to the P (Park) position.

Courtesy of FORD MOTOR COMPANY

All vehicles

1. 3.

   With the vehicle in NEUTRAL, position it on a hoist. Refer to Jacking and Lifting .

1. 4.

   Remove the selector lever bezel. Refer to Selector Lever Bezel .

1. 5.



Courtesy of FORD MOTOR COMPANY

1. 6.



Courtesy of FORD MOTOR COMPANY

1. 7.



Courtesy of FORD MOTOR COMPANY

1. 8.



Courtesy of FORD MOTOR COMPANY

1. 9.



Courtesy of FORD MOTOR COMPANY

1. 10.


   NOTE: Note the routing of the selector lever cable under the heater housing for assembly.

Courtesy of FORD MOTOR COMPANY

6F50/6F55

1. 11.

   Remove the ACL and outlet pipe. Refer to Intake Air Distribution and Filtering .

1. 12.



Courtesy of FORD MOTOR COMPANY

1. 13.



Courtesy of FORD MOTOR COMPANY

6F35

1. 14.

   Remove the ACL assembly. Refer to Intake Air Distribution and Filtering .

1. 15.



Courtesy of FORD MOTOR COMPANY

1. 16.



Courtesy of FORD MOTOR COMPANY

All vehicles

1. 17.



Courtesy of FORD MOTOR COMPANY

1. 18.



Courtesy of FORD MOTOR COMPANY
