Steering Column Motor: Removal

NOTE: Steering column telescopic motor shown in illustration, steering column tilt motor similar.

  1. 1.

    Remove the steering column. Refer to Steering Column .

  1. 2.

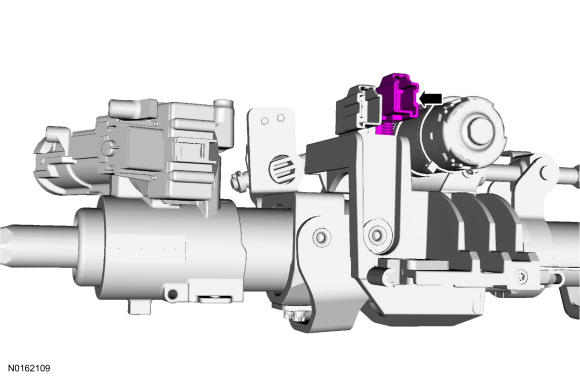

    With the steering column upside down on a workbench, detach the telescopic motor electrical connector pin-type retainer from the steering column.
GFD30439Courtesy of FORD MOTOR COMPANY

  1. 3.

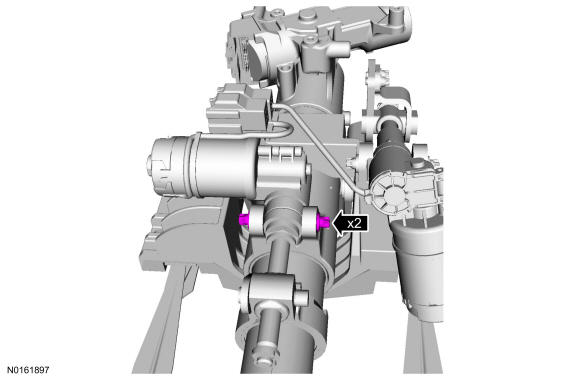

    Remove the telescopic motor screws.
    • To install, tighten the bolt to 6 Nm (53 lb-in).
GFD30440Courtesy of FORD MOTOR COMPANY

  1. 4.

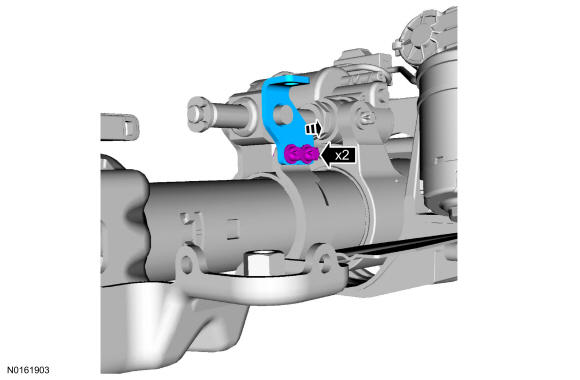

    Remove the telescopic motor screws and the trunnion nut capture bracket.
    • To install, tighten the bolt to 7 Nm (62 lb-in).
GFD30441Courtesy of FORD MOTOR COMPANY

  1. 5.

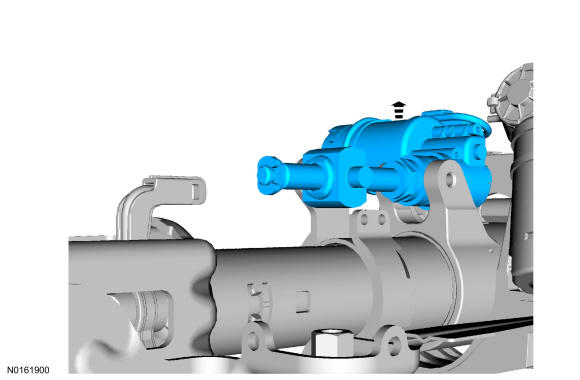

    Remove the telescopic motor.
GFD30442Courtesy of FORD MOTOR COMPANY
