Selector Lever Knob: Installation

All vehicles

1. 1.

   Install the selector lever knob.

Courtesy of FORD MOTOR COMPANY

1. 2.

   Connect the SelectShift® switch and TC switch electrical connectors.

Courtesy of FORD MOTOR COMPANY

1. 3.

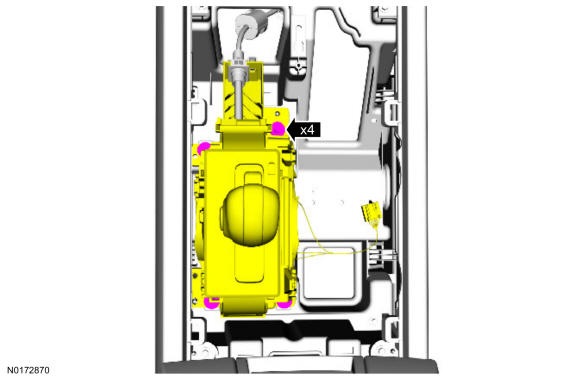

   Position the selector lever and install the bolts.
   • Tighten to 8 Nm (71 lb-in).

Courtesy of FORD MOTOR COMPANY

1. 4.

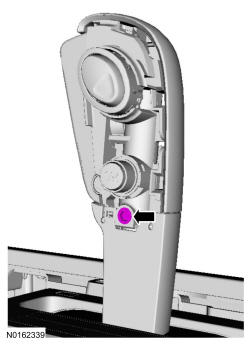

   Install a new LH selector lever knob screw.
   • Tighten to 2 Nm (18 lb-in).

Courtesy of FORD MOTOR COMPANY

1. 5.

   Install a new RH selector lever knob screw.
   • Tighten to 2 Nm (18 lb-in).

Courtesy of FORD MOTOR COMPANY

1. 6.

   Install a new LH selector lever knob cover.

Courtesy of FORD MOTOR COMPANY

1. 7.

   Install a new RH selector lever knob cover.

Courtesy of FORD MOTOR COMPANY

Expedition

1. 8.

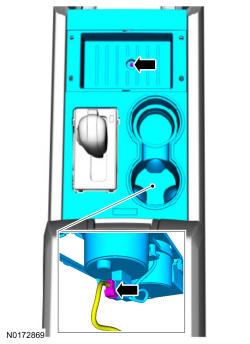

   Connect the ambient light electrical connector and install the console upper trim and the screw.

Courtesy of FORD MOTOR COMPANY

1. 9.

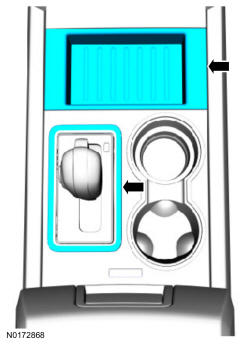

   Install the selector lever trim ring and console tray insert.

Courtesy of FORD MOTOR COMPANY

Navigator

1. 10.

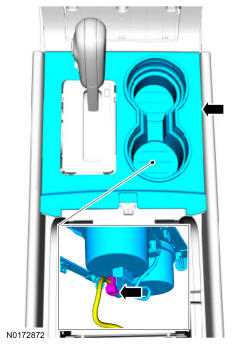

   Connect the ambient light electrical connector and install the floor console upper panel.

Courtesy of FORD MOTOR COMPANY

1. 11.

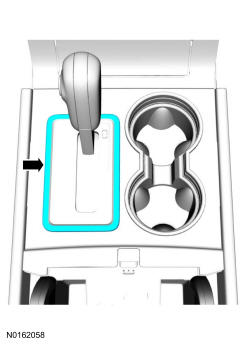

   Install the selector lever trim ring.

Courtesy of FORD MOTOR COMPANY
